CHAPTER 6 INTERRUPT AND TEST FUNCTIONS

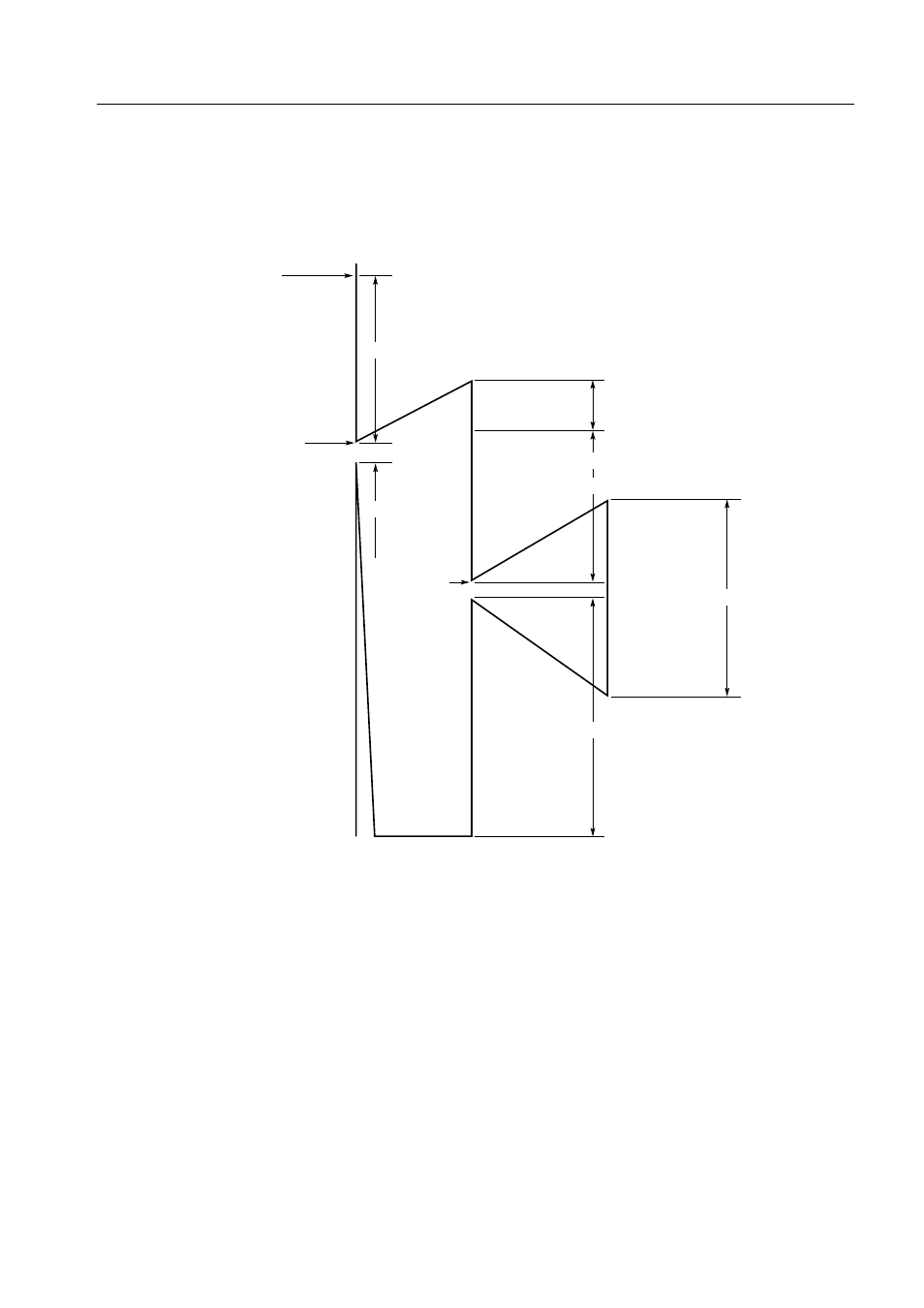

(7) Enabling of level-two interrupts (enabling level-two INTT0 and INT0 interrupts with INTCSI and INT4
handled as level-one interrupts)
<1> When an INTCSI interrupt not allowed to be a level-two interrupt occurs, the INTCSI service program
starts, and status 1 is set.
<2> Status 0 is set by clearing IST0. INTCSI and INT4 not allowed to be level-two interrupts are disabled.
<3> When INTT0 allowed to be a level-two interrupt occurs, the level-two interrupt is executed, and status
1 is set to disable all interrupts.
<4> When INTT0 processing is completed, status 0 is set again.
<5> INTCSI and INT4 which have been disabled are enabled, then control returns.
Reset
EI IET0
EI IE0
EI IECSI
Status 0
Status 0
Status 0
Status 1
Status 0
Status 1
<3> INTT0
<2> DI
CLR1 IST0
DI IECSI
DI IE4
EI
<4> RETI
EI IECSI
EI IE4
RETI
<5>
<1> INTCSI
EI IE4
EI
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
••
