Installation & Basic Configuration
Hardware Installation
Refer to the steps below that correspond to your configuration:
•
AP-2500 with Active Ethernet
• AP-2500 with Power Supply
• Installing a Card in Slot B
• 5 GHz Kit Installation
• Installing the AP-2500 in a Plenum
AP-2500 with Active Ethernet
Follow these installation steps if you purchased an AP with Active Ethernet:
1. Slide the AP module onto the mounting bracket. Make sure it is properly seated.

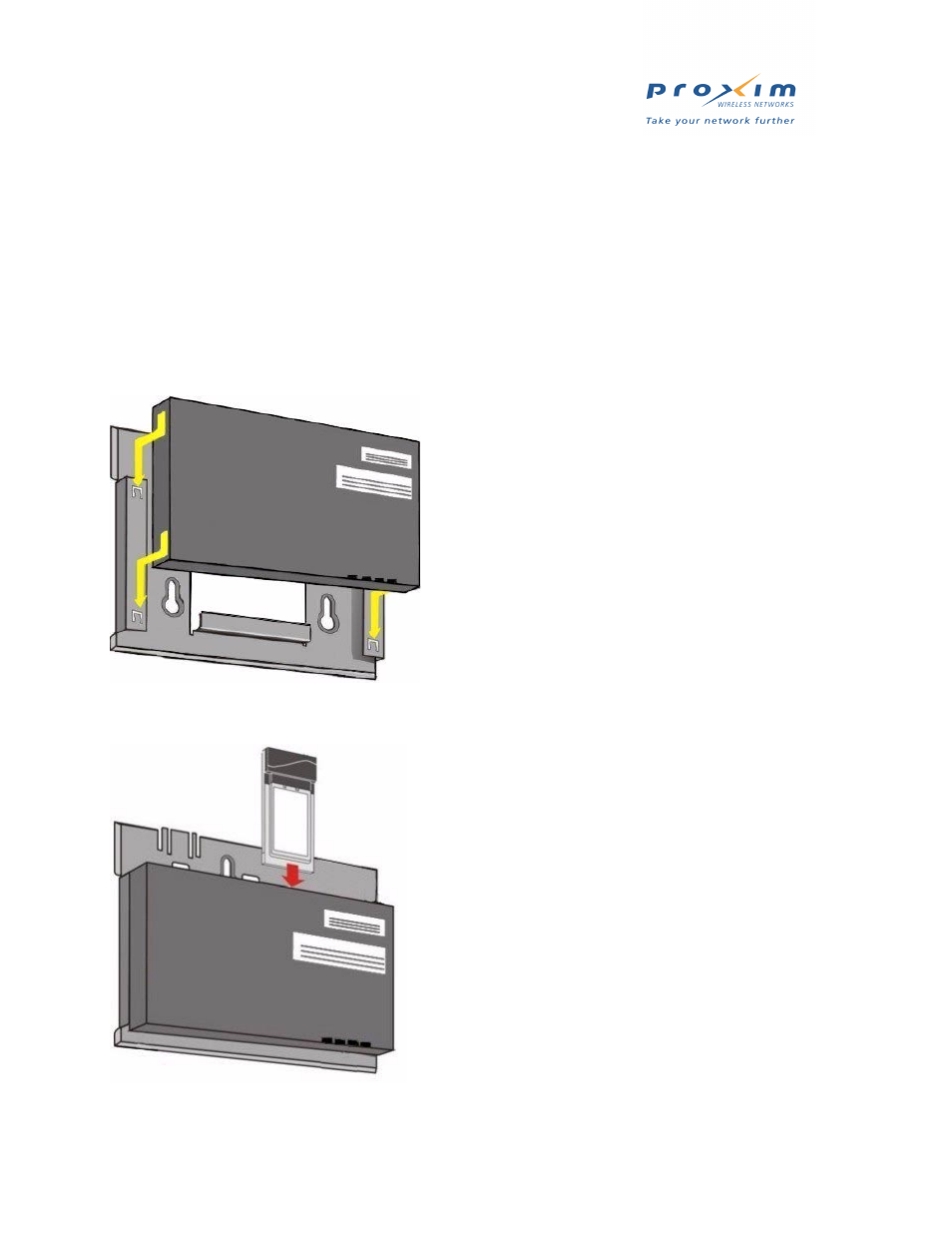

Figure 2-1 Insert Module into mounting bracket
2. Slide an 802.11b wireless card (not included in the kit) into Slot A.
Figure 2-2 Slide a PC Card into the AP
