Appendix

148

CCCC

To avoid making your hands
dirty with toner from the transfer
roller, wear the gloves included
in the maintenance kit.

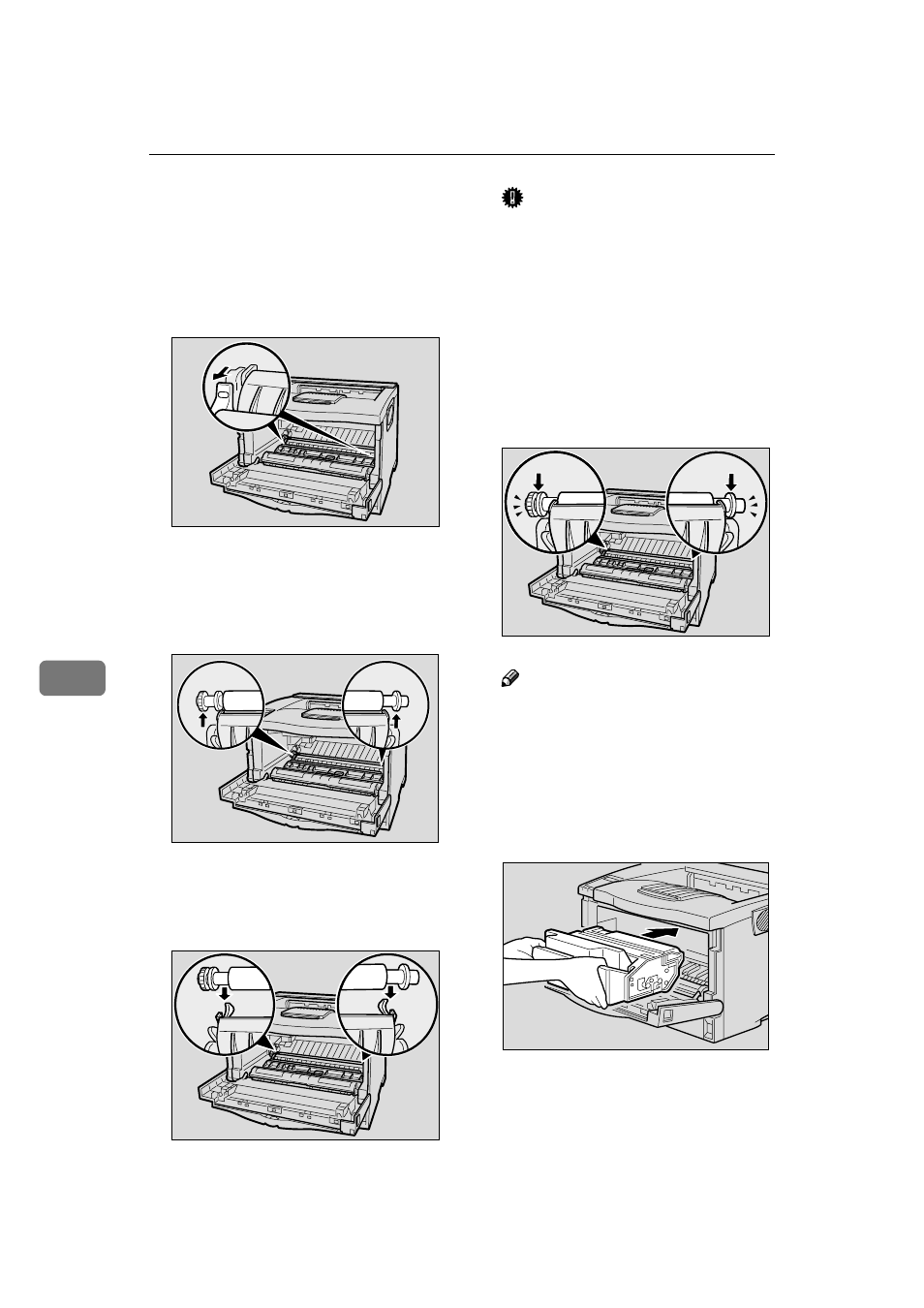

DDDD

Hold the lock levers (“

$” parts),

and pull them.

EEEE

Hold the green parts of the roller
on both sides, and remove the
roller from the printer as shown
in the illustration.

FFFF

Insert the new transfer roller on
the socket with the gear of the
roller positioned on the left.

Important

❒ Do not insert the roller on the

back of the socket, or the printer
might be damaged.

❒ Insert the metallic part of the

roller on the socket. If you insert
the sponge part of the roller, the
roller might be damaged.

GGGG

Push down the green parts of
both sides of the printer until it
clicks as shown in the illustration.

Note

❒ When the transfer roller is set,

the transfer roller cover will re-
turn to its original position au-
tomatically.

HHHH

Holding the grips of the toner car-
tridge, insert it into the printer
until it stops.

ZCEM200J

ZCEM210J

ZCEM220J

ZCEM221J

ZGDT120J
