Replacing Parts
147
7
Note
❒ If the printer is equipped with
the optional Paper Feed Unit,
do not move the printer and the
unit together, they are not se-
curely attached.
BBBB

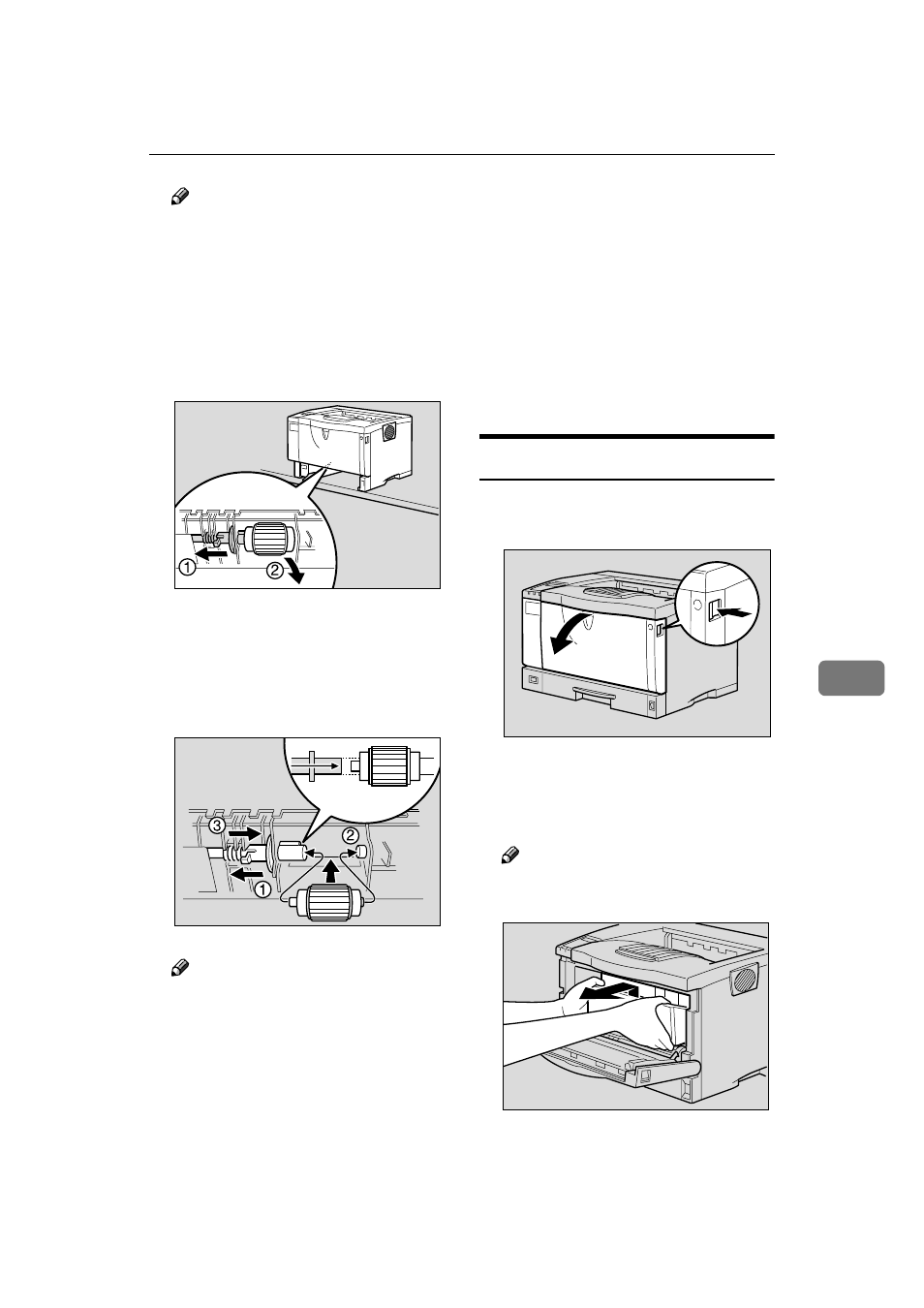

Slide the green lock lever to the
right (
A A A A), remove the paper feed
roller (
B B B B).
CCCC
While sliding the green lock lever
to the right (
A A A A), set the new roller
(
B B B B). After that, return the green
lock lever to its original position
(
C C C C).
Note
❒ Confirm that the green lock le-
ver secures the roller correctly
by checking if the new roller ro-
tates smoothly.
DDDD
If the printer is equipped with the
optional Paper Feed Unit(s), fol-
low the same procedure when re-
placing the paper feed roller.
If you installed two Paper Feed
Units, also replace both paper feed
rollers.
EEEE
Leave the paper tray pulled out
and go to p.147 “Replacing the
Transfer Roller”.
Replacing the Transfer Roller
AAAA
Open the front cover by pushing
the front cover release button.
BBBB
Pull the toner cartridge out of the
printer, while lifting the front
side.
Note
❒ Be sure to place the used car-
tridge on the level place.
ZGDM120J
ZCEM130J
ZCEH120J
ZGDT110J
