Connection and setup
Connect the satellite receiver (HDMI or alternatively TV Scart socket) and the TV set using an HDMI or Scart cable
(see “Connection example”). If your TV is stereo, you can receive the sound in stereo via the HDMI or Scart connection.
For system reasons, the same video signals are to be found at the TV Scart socket as at the video cinch output.
Connect the satellite receiver (VCR/AUX Scart socket) to the video recorder/DVR using a Scart cable. To play back a
DVD, i.e. output the signal from the DVR through the receiver on the TV set, the TV set must also be connected to the
receiver with a Scart cable. This is necessary as there is no upscaling of the video signal from the VCR Scart socket to the
HDMI output.
If you want to play the sound on your hi-fi system, connect the audio cinch sockets to the input sockets on the
hi-fi system, using an appropriate cable (see “Connection example”).
The fibre-optic output is intended for the connection of a Dolby Digital system (see “Connection example”).
TV and VCR connection
Audio connection
Optical digital output

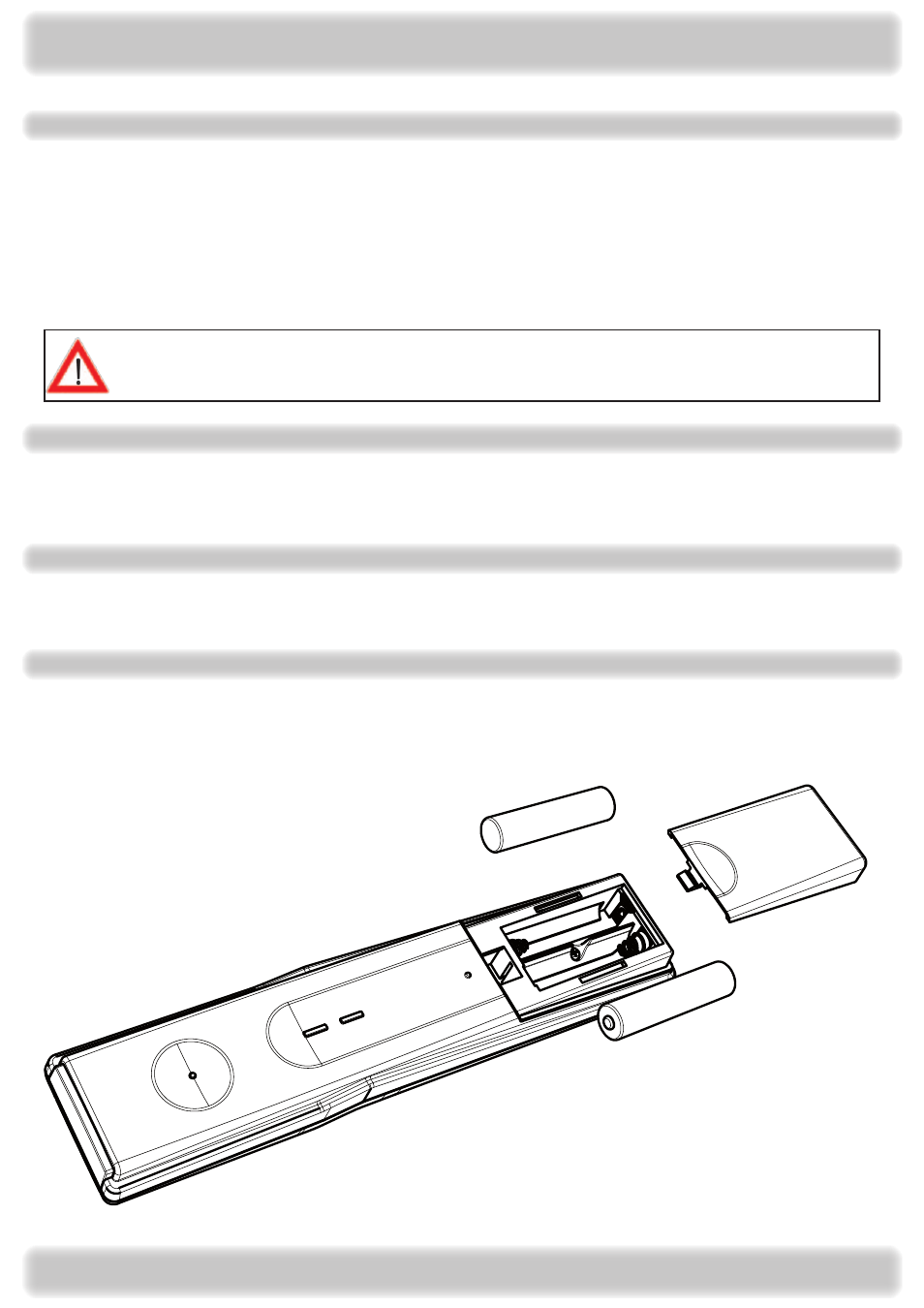

Remove the cover on the rear of the remote control. Insert the two batteries supplied into the remote control.
Ensure correct polarity of the batteries; the + and – markings as indicated inside the battery compartment.
Slide the cover back on to the remote control until it locks in place.
Inserting batteries into the remote control
If you are recording using an external video recorder, remember not to operate the receiver during
recording, otherwise all the on-screen displays will appear on your recording.
