Connect the Sat-IF inputs on the receiver to the satellite reception system. Use coaxial cable with an
F standard connector.
If the F standard connectors are not yet fitted on the cables, strip the insulation from the cables as
shown in the following illustration and carefully screw the F standard connectors on to the ends of
the cables until they are securely attached.

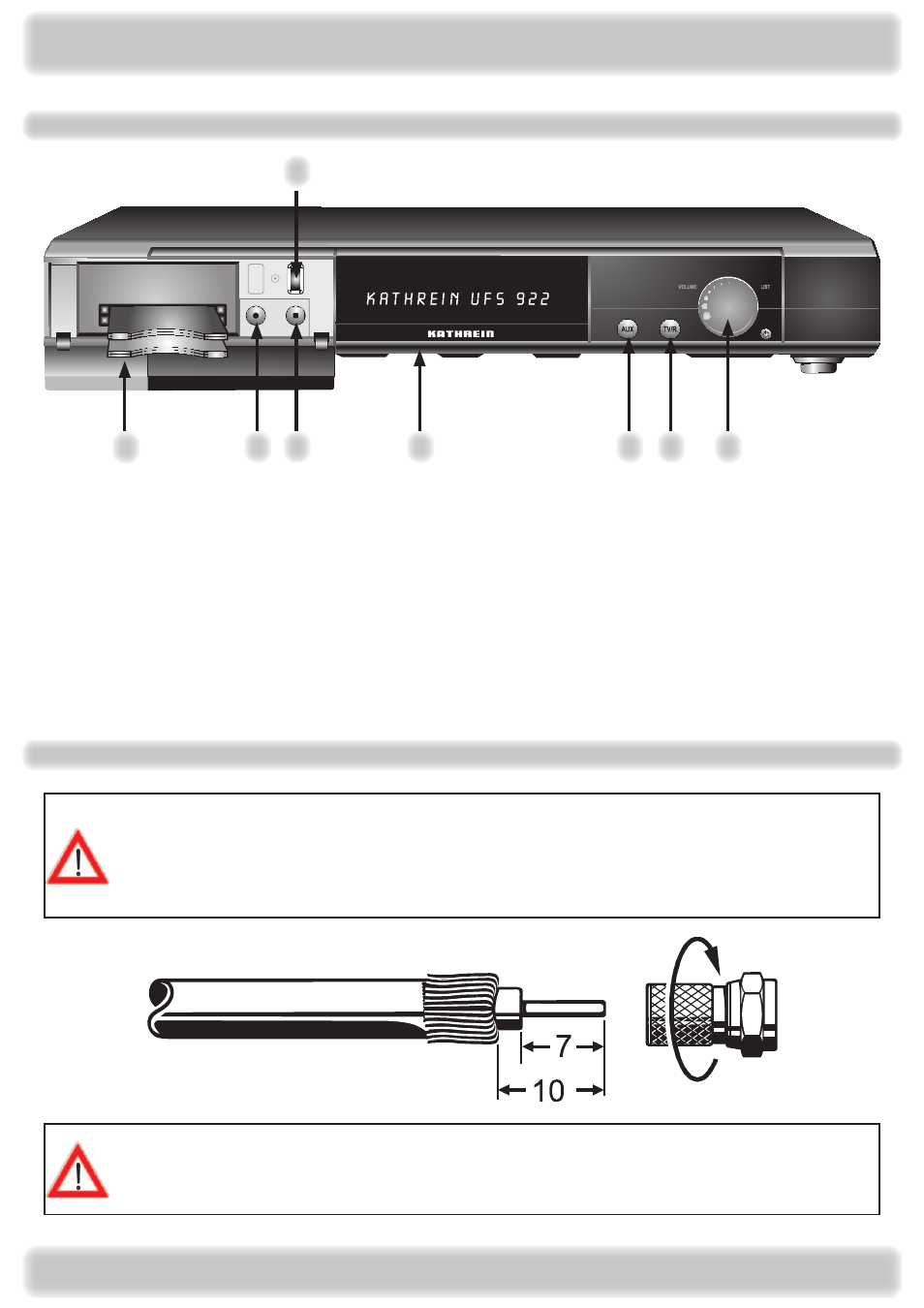

View of front panel (flap folded down)
1 2 3
4
5 6 7 8
1. Common Interface for two CA modules for
pay TV cards *)
. Record button
3. Stop button
4. USB 2.0 port
5. 16-character alphanumeric display
6. AUX button
7. TV/R button
8. Multifunction control
Connecting the unit (Sat-IF connections)
Connection and setup
When fitting the connector, make sure that no wires from the braid are touching the inner conductor,
otherwise a short circuit will occur.
The quality of the reception signal depends on a good connection at this point!
*) CA modules and Smartcards are not included with this product
