2. Find the power plug provided in the kitpack and insert
your vessel power wires into the plug’s (+) and (-)
terminals (see Figure 2-18).

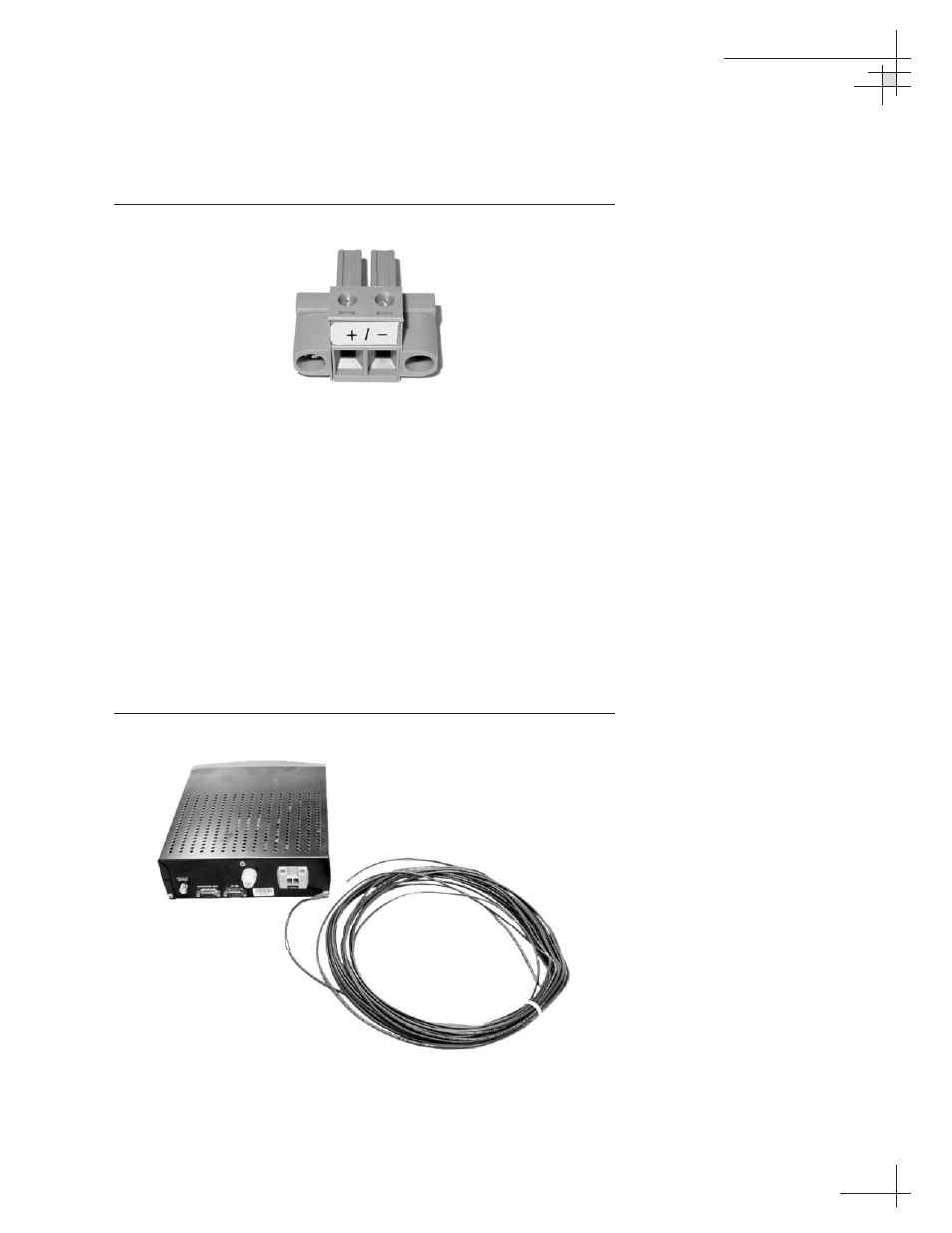

Figure 2-18
Power Plug
3. Secure the wires in place by tightening the plug’s terminal
screws.
4. After inserting and securing the wires, tug gently to
ensure that the connections are solid. Also make certain
that the wire insulation is not pinched in the connector.
5. Plug the power connector plug into the power jack on the
MCU’s rear panel (see Figure 2-16 on page 35).
6. Secure the plug in place with the two retaining screws.
7. The MCU has a ground wire preattached to one of its
retaining screws (see Figure 2-19). Be sure to connect this
wire to a suitable ground.
Figure 2-19
MCU Ground Wire
