5.13 Replacing the Elevation Motor
1. Disconnect the motor cable from the elevation motor.

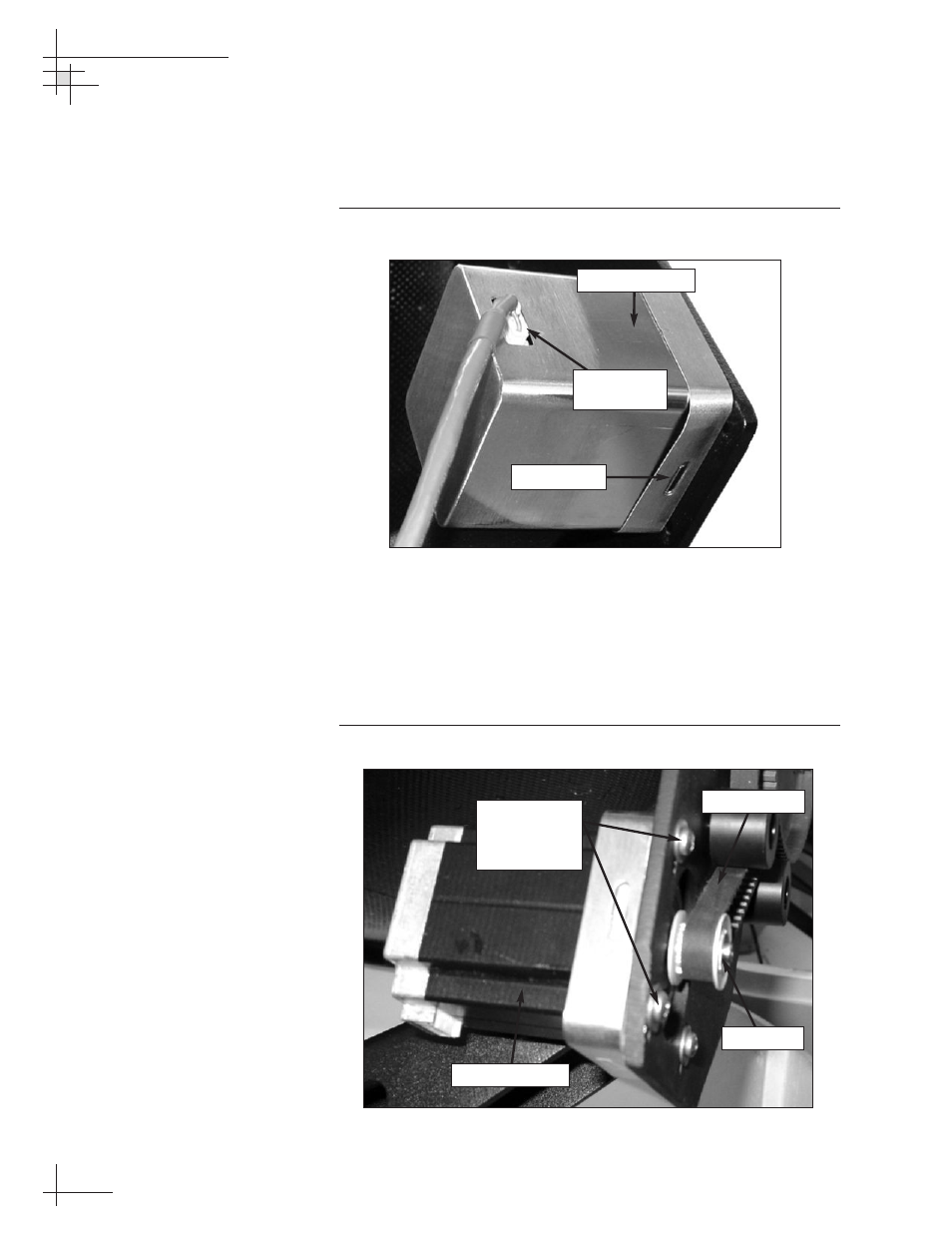

Figure 5-21 Elevation Motor Cable
2. Remove the motor shield by pressing on the two sides of
the shield above the release tabs.
3. Remove the four #8-32 screws and washers securing the
motor to the antenna frame. Remove the old elevation
motor.
Figure 5-22 Elevation Motor (Shield Removed)
54-0198 110
TracVision G8 Owner’s Manual - Guide to Technical Information
Elevation Motor
Release Tab
#8-32 Screws
and Washers
(x 4)
Elevation Motor
Motor Hub
Elevation Belt
Motor Cable
Connector
