8. Gently extend the two sides of the motor shield and

remove the shield from the old skew motor.

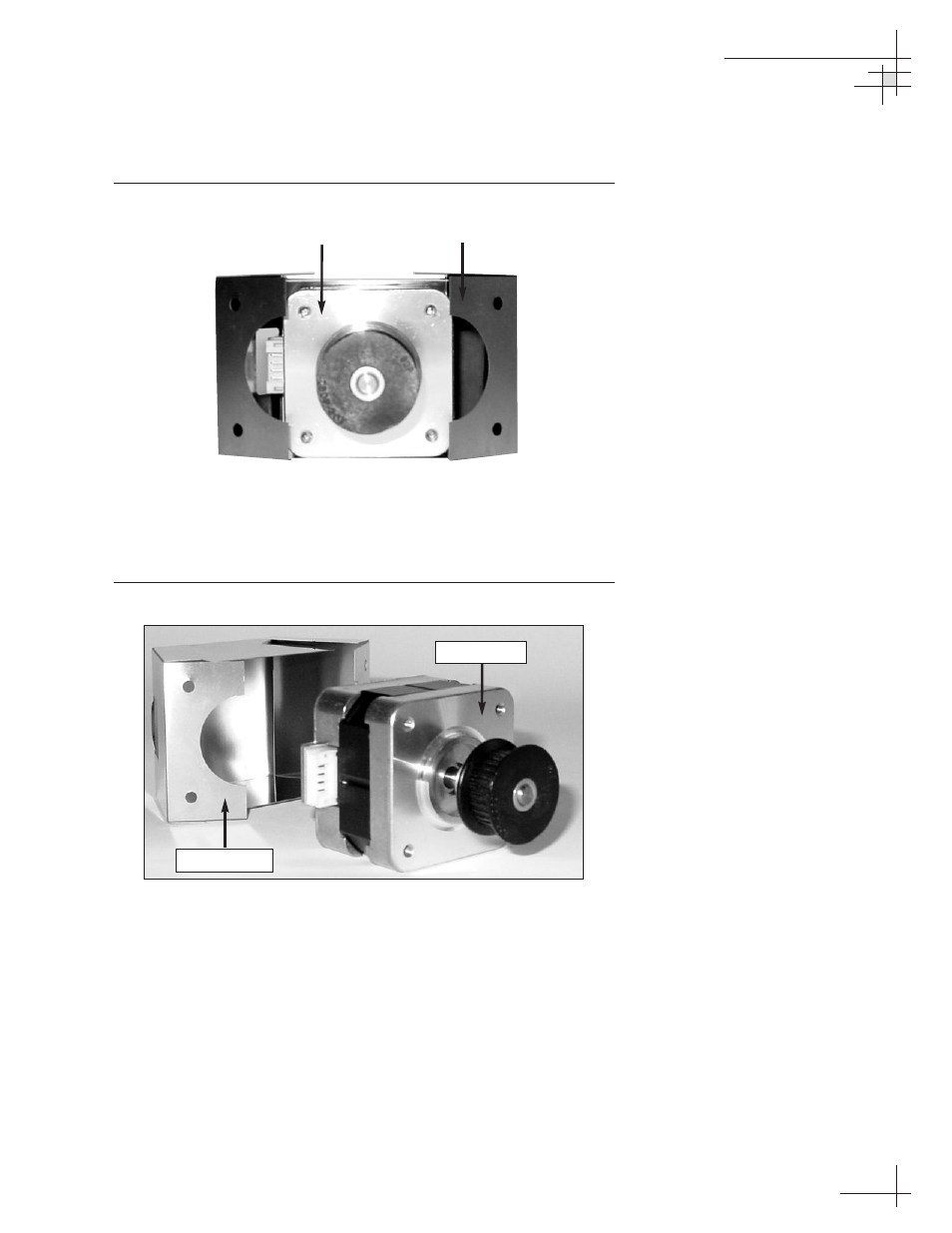

Figure 5-29

Removing the Skew Motor Shield

9. Place the new skew motor inside the motor shield. The

motor’s connector should pass through the small opening
in the shield.

Figure 5-30

Installing the Skew Motor Shield

10. Attach the new skew motor to the LNB/feed tube

assembly with the belt positioned around the outer lip of
the motor hub. Ensure that the motor’s connector is facing
the motor cable, as shown in Figure 5-28. Reinstall the
washers and screws that you removed in Step 7, but do
not tighten them yet.

11. Slide the motor to adjust the belt tension until the belt

teeth fully engage the motor hub and the pulley. Tighten
the motor cap screws. Some readjustment may be necessary if
the belt tension results in excessive vibration.

Maintenance

54-0198

115

Skew Motor

Motor Shield

Skew Motor

Motor Shield
