5.15 Replacing the Skew Motor

(Linear Quad LNB Systems Only)

1. Using a

⁄

" wrench, carefully disconnect the four RF

cables from the LNB.

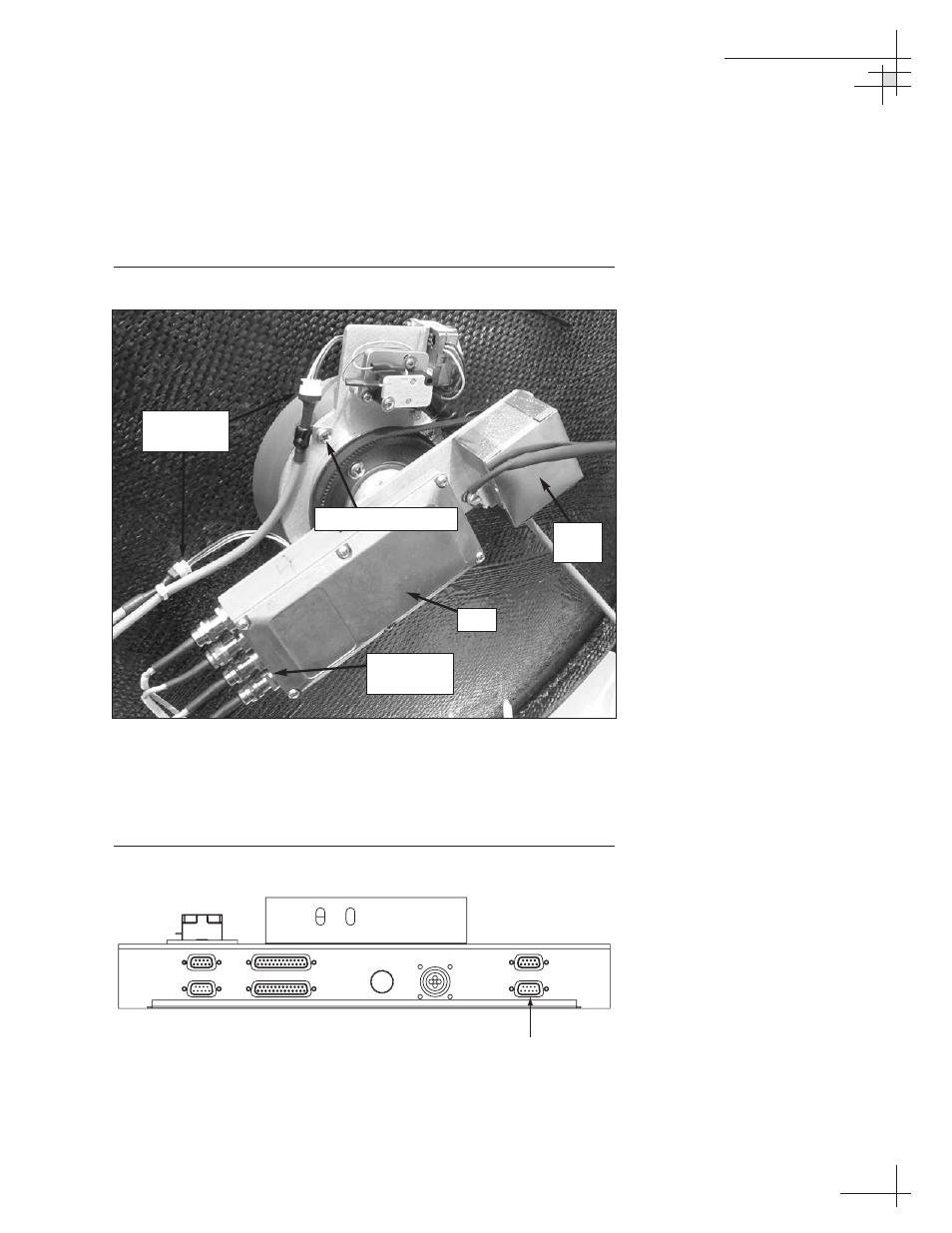

Figure 5-25

Linear Quad LNB/Feed Tube Assembly

2. Disconnect the elevation and azimuth gyro cables from

the in-line connectors.

3. Disconnect the skew motor cable from the PCB module.

Figure 5-26

Skew Motor Cable Connector on PCB Module

Maintenance

54-0198

113

RF Cable

Connectors

LNB

Skew
Motor

#8-32 Screws (x 4)

POWER

ELEVATION GYRO

INTERNAL SENSOR

SKEW MOTOR

ELEVATION & AZIMUTH MOTORS

AZIMUTH/ROLL GYRO

LIMIT SWITCHES

FUSE

Skew Motor

Cable Connector

Gyro Cable
Connectors
