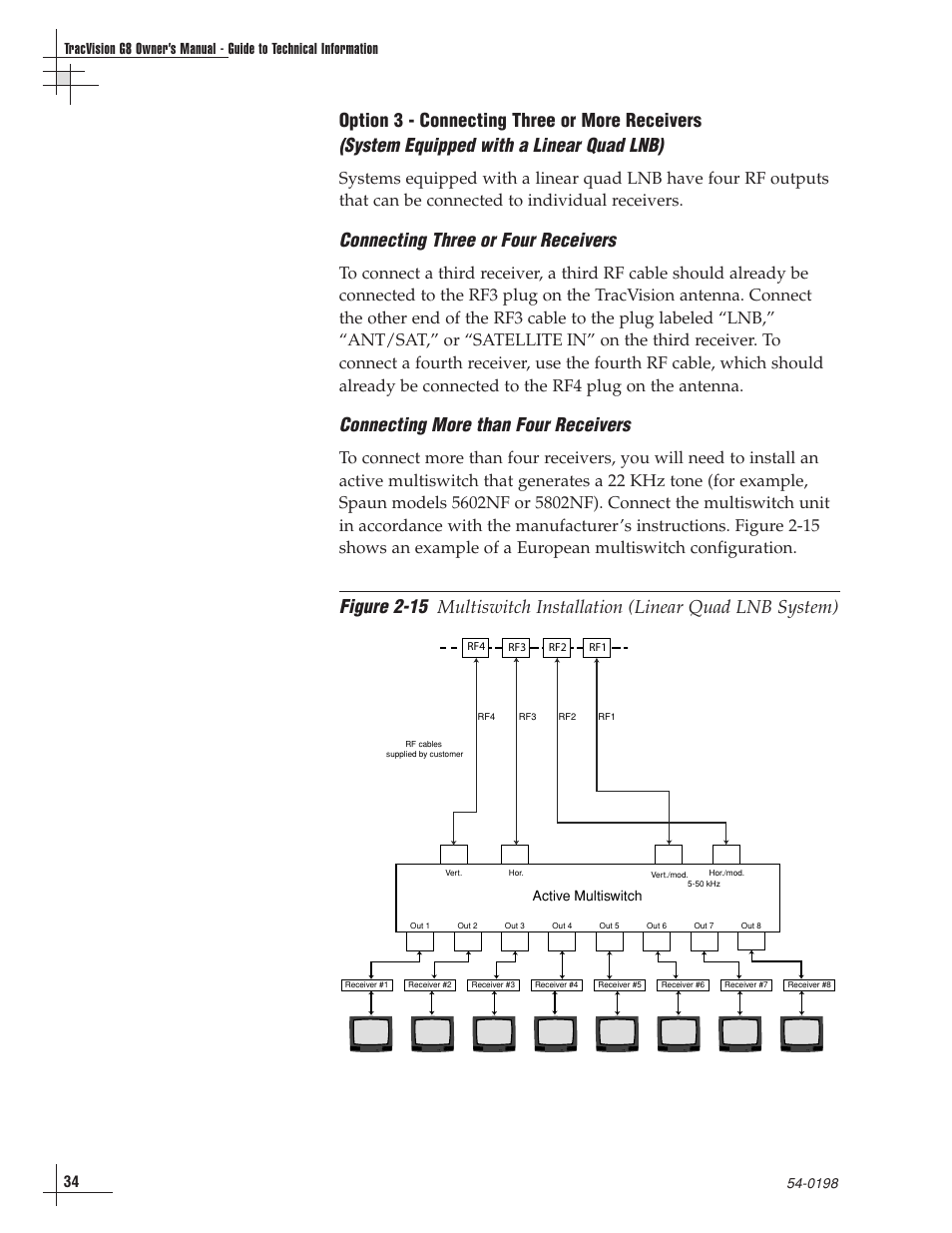

Page 36: Figure 2-15, Option 3 - connecting three or more receivers, Multiswitch installation (linear quad lnb system)

Text mode
Original mode

System equipped with a linear quad lnb), Connecting three or four receivers, Connecting more than four receivers | Figure 2-15, Option 3 - connecting three or more receivers, Multiswitch installation (linear quad lnb system) | KVH Industries TracVision G8 User Manual | Page 36 / 137
