Setting Up the 4000i

NOTE: You can only connect an audio cable from either a VCR or a DVD player, but
not both. The connection panel only accommodates the RCA jacks from one external
audio input source.

3. Connect the VCR/DVD player power cable to the power bar (if there’s a free outlet) or

to a room outlet.

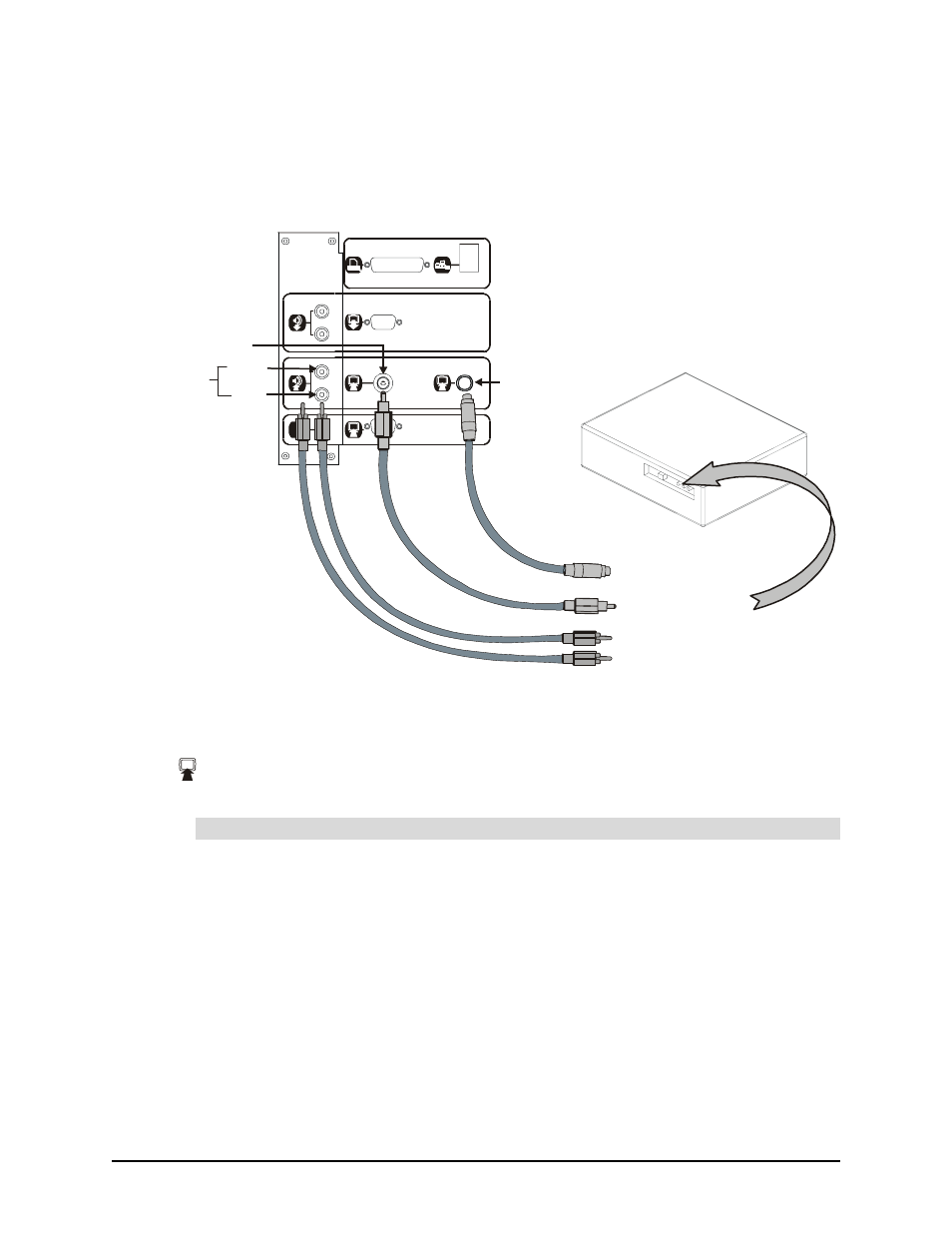

Figure 13: Connecting a VCR or DVD Player

4. Press the Display Source button on the control panel until the LED indicator next to

the Video IN symbol (Source 3) is lit. (See page 45 for more information on changing
the display source.)

1. Connect the DVI cable to the video device following the instructions that came with

your device.

2. Connect the other end of the DVI cable to the projector.

Read the Epson 9300i Multimedia Projector User’s Guide for details on the type of
DVI cable that you must use and how to connect the device to the projector.

To connect a DVI video source to the projector

Computer 2 Inputs

Outputs

S-Video

Printer / Network

Auxiliary
Inputs

A

S-Video

RCA Composite Video IN

(Yellow)

Audio IN (L/R)

S-Video IN

To Video Output

To RCA L/R Audio Outputs

To S-Video Output

White

Red

S-video IN

To S-video Output
