20 Setting Up the 4000i
12. Insert the two 1/4-20 hex socket screws from the accessory kit through these holes
and into the threaded inserts in the arms, and tighten them using the 3/16" hex key.
13. Tighten the screws that hold the mounting bracket to the cabinet using the 3/16" hex
key. (You inserted these in step 5.)
14. Slightly tighten the projector screws that protrude through the keyholes in the
mounting bracket. To do this, use the M4 hex key from the accessory kit.

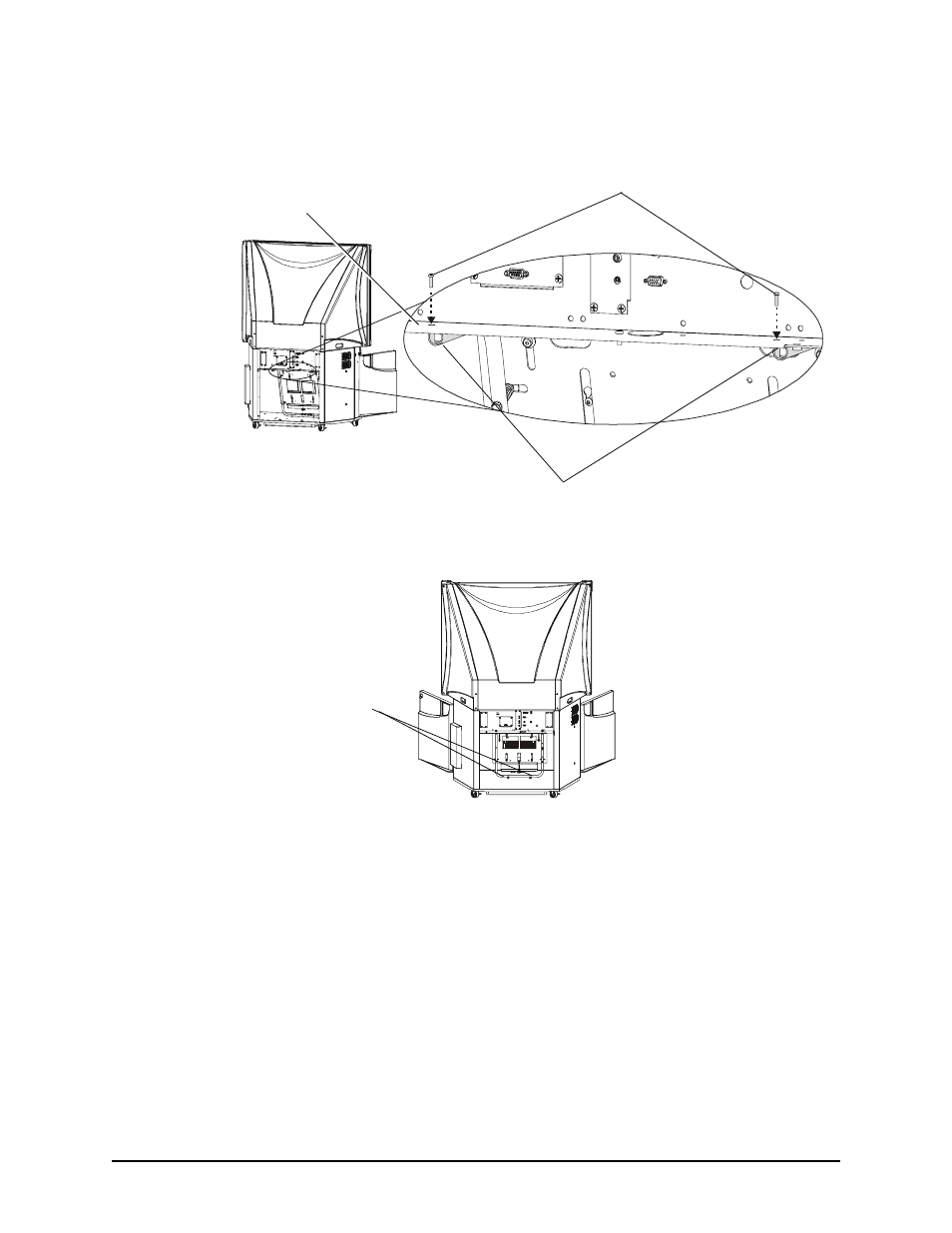

Arms of the
Mounting Bracket
NOTE: For clarity, this
illustration doesn’t show
any cables.
Connection Panel Bracket
Screws
Tighten these screws
