Voip board – Samsung SMG-3200 User Manual
Page 48
3-15
VOIP Board

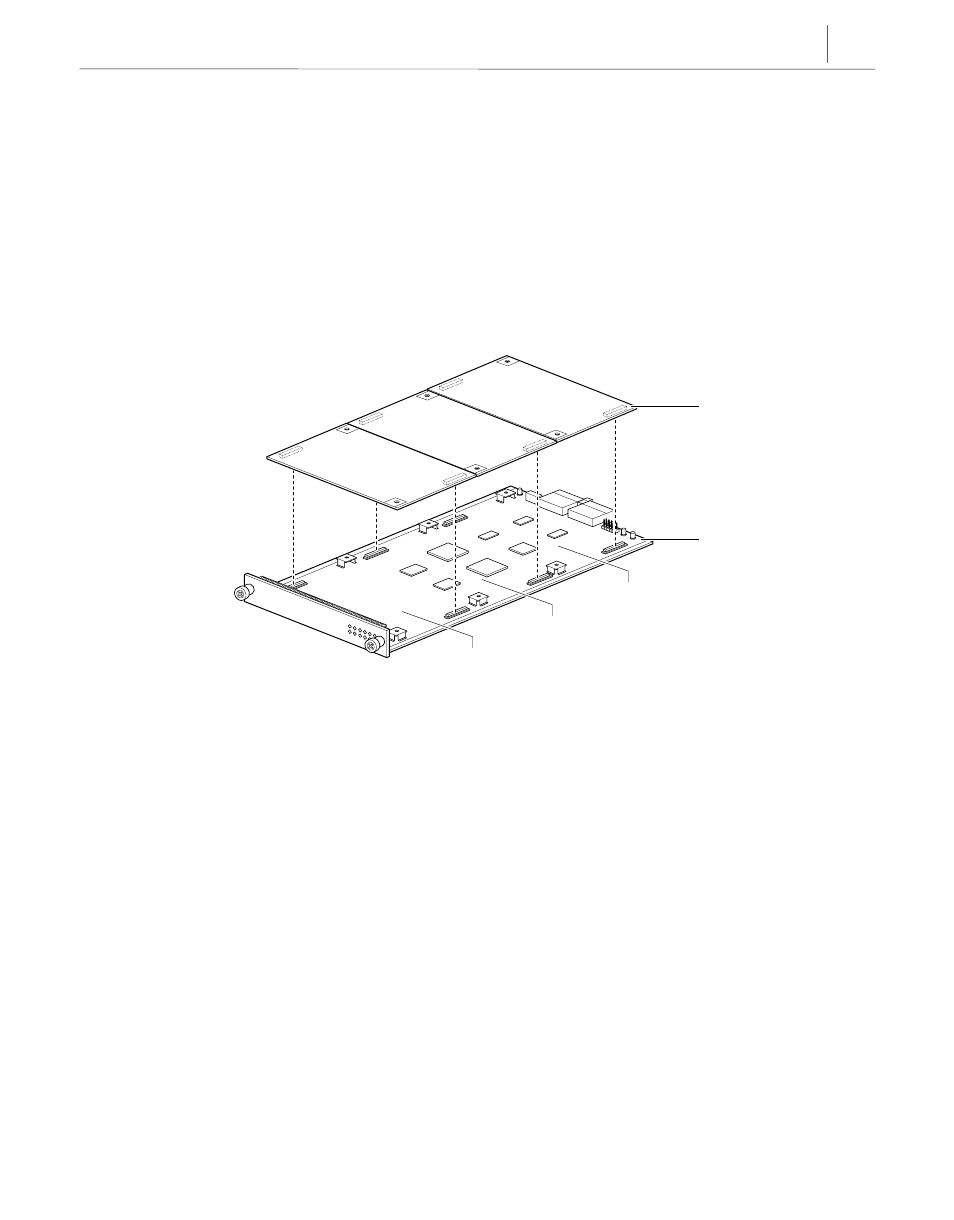

On the VOIP board, up to 3 VOIP_Sub boards can be installed. Since each VOIP_Sub board
provides 8 VoIP channels, as a result, a maximum of 24 additional VoIP channels can be installed
on the VOIP board.
Although installing VOIP_Sub board on the VOIP board is the same as that of the MGCB board,
you have to be sure of the location of the VOIP_Sub board for installation. From the slot near the
edge connector, install VOIP_Sub boards by one by one.
y To install 1 VOIP_Sub board
☞ Install in LOC1 slot.
y To install 2 VOIP_Sub board
☞ Install in LOC1 and LOC2 slots.
y To install 3 VOIP_Sub board
☞ Install in LOC1, LOC2, and LOC3 slots.
VOIP
LD2
LD1
LD3
LD5
LD7
LD4
LD6
LD8
4/8CH
24CH
16CH
32CH
