Chapter 3
Installing the System
RS-232C LAN MGCB LOOP
SLC VOIP
Media Gateway SMG-3200
E1/T1/PRI PWR
16CH 32CH LD2 LD4 LD6 LD8
4/8CH 24CH LD1 LD3 LD5 LD7
L1 L2 LAN TX LAN RX
OPER E1 SYNC E1 LOS
P1 P3 P5 P7
P2 P4 P6 P8
P1 P3 P5 P7
P2 P4 P6 P8
P1 P2 P3 P4 P5 P6 P7 P8
P1 P2 P3 P4 P5 P6 P7 P8
Installing Boards
Before installing or changing the various universal boards, please make sure
that the main cable is detached from power line and that all at telecommuni-
cation cables are deltached form telecommunication ports.

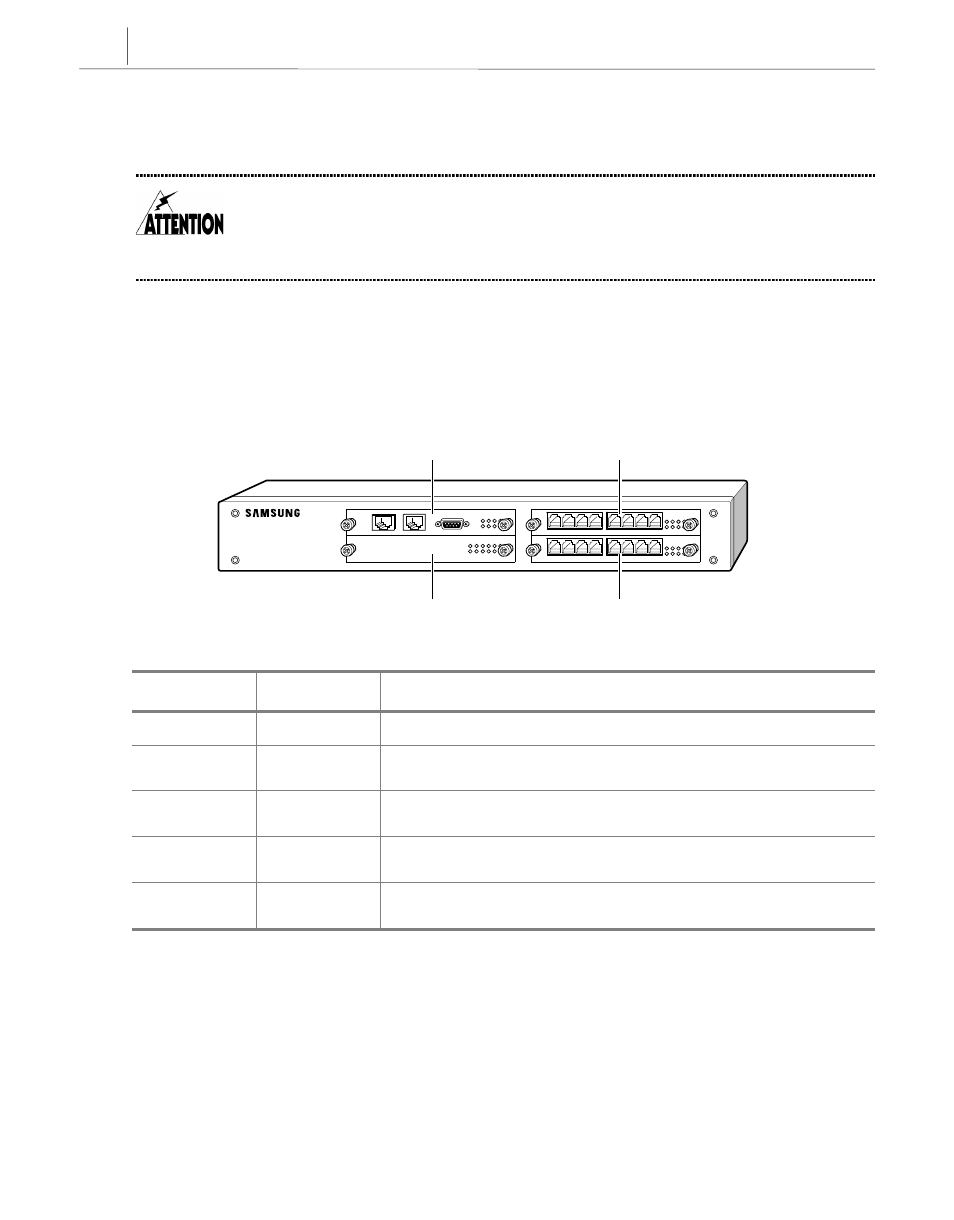

System Slots
MGCB board, VOIP board, and various Universal boards can be installed in the 4 slots on the
front panel of the SMG-3200. For the installation slot of each board refer to the following table.
Board Board Board Board Slot Slot Slot Slot Function Function Function Function
MGCB MGCB Controls the entire operation of the SMG-3200 system.
VOIP VOIP
Provides H.323 V3-complient VoIP Gateway functions to enable
voice communication over the Internet
LOOP
US1
US2
Provides the local extension trunk interface.
E&M
US1
US2 Provides a 4-Wire E&M dedicated line for connection of SMG-
3200 system and PBX or KTS.
SLC
US1
US2 Provides the connection between a general analog telephone and
the SMG-3200 system
MGCB Slot
VOIP Slot
US1 Slot
US2 Slot
