WIRELESS OPERATION
■
Microphone address
The transceiver has 8 possible microphone addresses (in-
cluding OFF) to help prevent interference from other HM-90
wireless microphones. Set both the microphone address and
microphone dip switch to the same value as follows.
When the supplied microphone is connected, the trans-
ceiver rejects control signals from the HM-90 even when
the microphone address is matched.
D
Microphone address
q
Push [
(DISP)
SET] for 2 sec. to enter set mode.
• Push [CHG/L] if [(DISP) SET] is not displayed.
w
Push [
Y
] or [
Z
] to select the ‘HM-90 Address’ item.
• Left-hand tuning dial can also select the item.
e
Rotate the right-hand tuning dial to set the microphone ad-
dress to 0–7 or to turn the microphone control OFF.
• When “OFF” is selected, the
transceiver rejects all control sig-
nals from the HM-90.
r
Push [
ï
] to exit set mode.
q
Push [
F
SET]; then push [
F
SET] or [
G
ENT] to
select the ‘HM-90 Address’ item.
w
Push [
Y
] or [
Z
] to set the microphone address
to 0–7 or to turn the microphone control OFF.
e
Push [
E
CLR] to exit set mode.
D

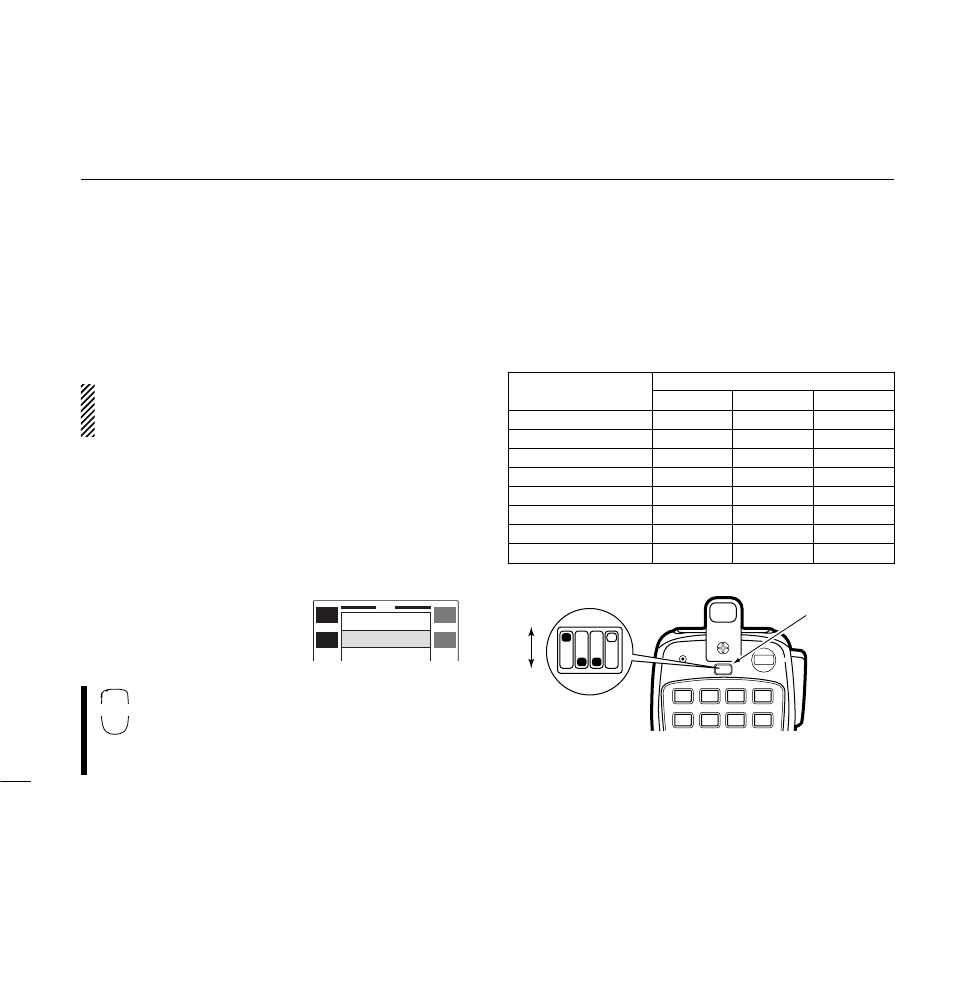

Microphone dip switch
q
Remove the switch cover from the microphone rear panel.
w
Set the microphone dip switch and the microphone ad-
dress to the same value as shown below.
e
Replace the switch cover.
MICROPHONE
DIP SWITCH
ADDRESS
S1-1
S1-2
S1-3
0
OFF
OFF
OFF
1 (default)
ON
OFF
OFF
2
OFF
ON
OFF
3
ON
ON
OFF
4
OFF
OFF
ON
5
ON
OFF
ON
6
OFF
ON
ON
7
ON
ON
ON
LOCK
AFC
AFC-OFF
PTT-M
MW
PGR
CALL
1
2
3
A
4
5
6
B
MR
VFO
CLR
C-SQL
DTMF
D-OFF
HIGH
MID
LOW
SET
Switch cover
Dip switch (S1)
ON
OFF
1 2 3
ï
Y
Z
SET
Squelch Delay
Long
1
HM-90 Address
Sub Band Mute
SET
B
