15

3

INSTALLATION

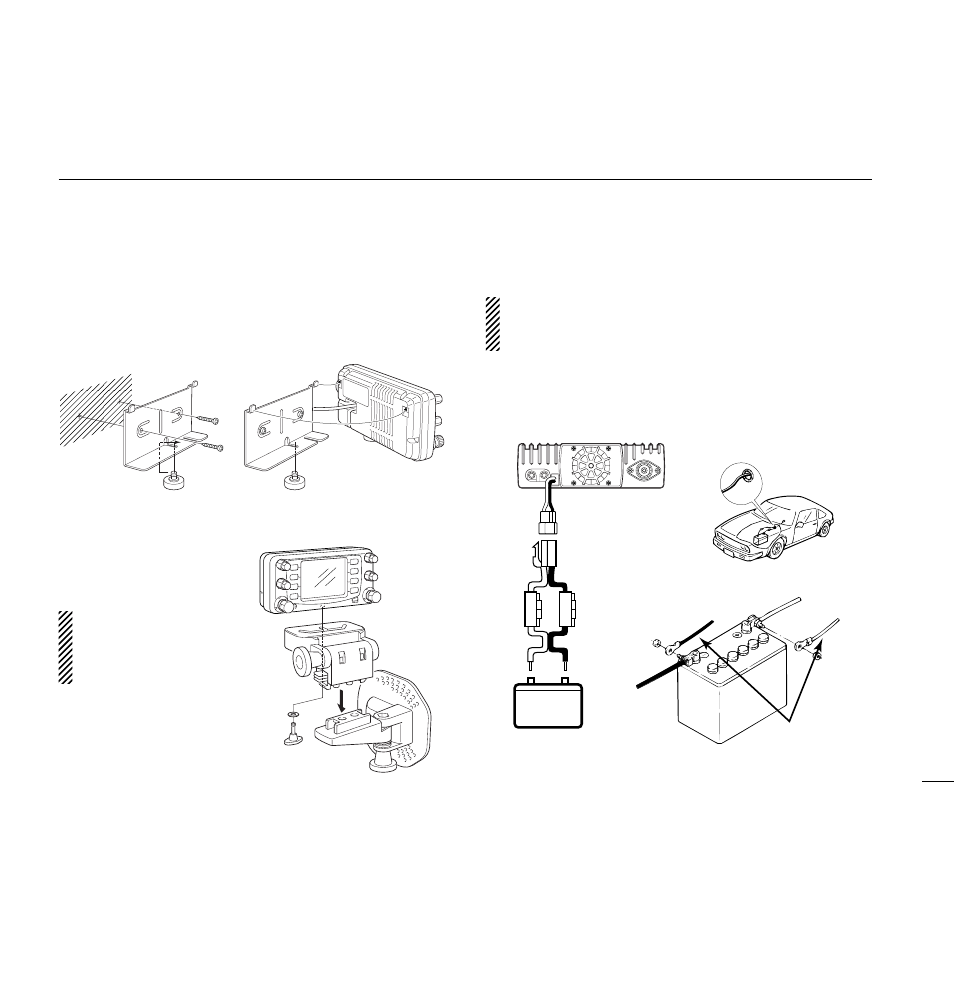

Mounting the remote
controller

Install the nut before attaching the bracket to the wall, etc.

D

When using an
optional MB-65

The supplied remote con-

troller bracket is not nec-
essary when using the
optional MB-65.

Battery connection

NEVER connect the transceiver directly to a 24 V battery.

DO NOT use the cigarette lighter socket for power con-
nections.

Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent short circuits.

• See p. 74 for fuse replacement.

Nut

Nut

MB-65

Remote
controller

12 V

Fuses
20 A

+

red

+

red

Grommet

_

black

_

black

Supplied
DC power cable
