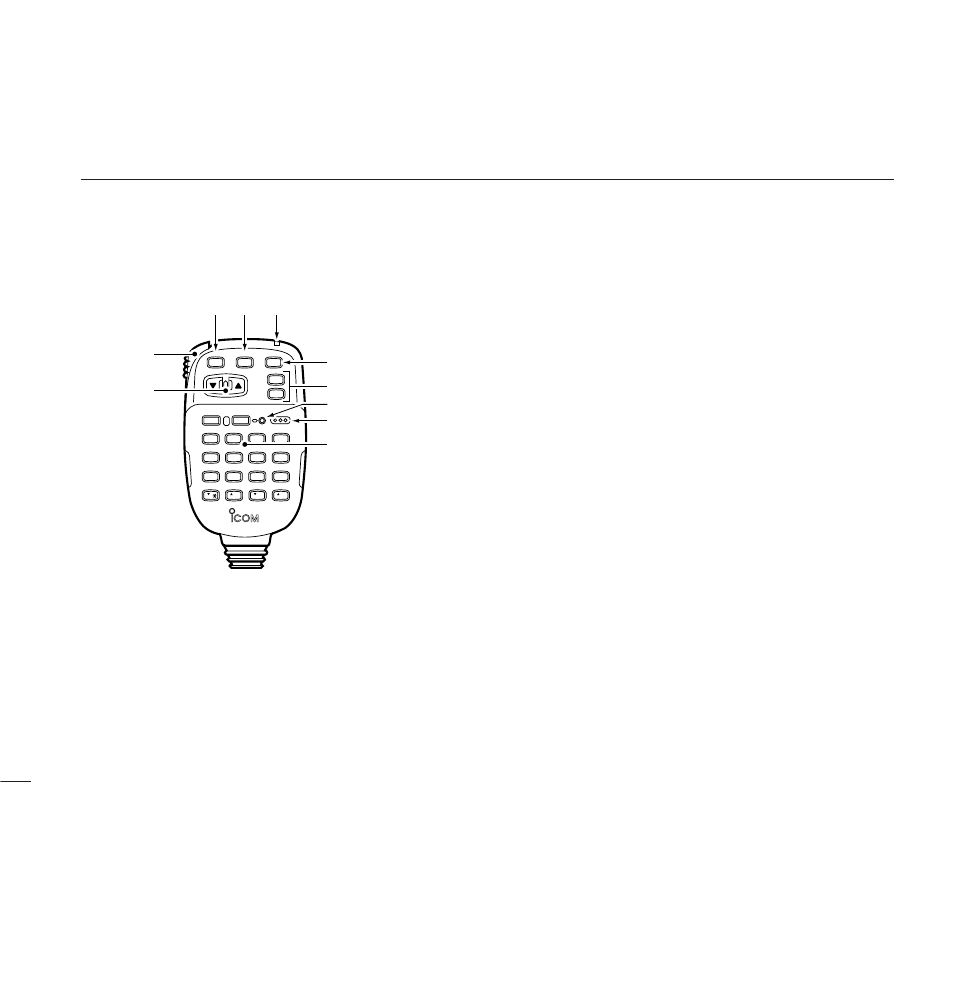

■ HM-98 microphone*
q UP/DOWN SWITCHES [ Y Y ]/[ Z Z ]
➥ Push either switch to change the operating frequency,
memory channel, set mode contents, etc. (p. 20)
➥ Push either switch for 2 sec. to start scanning. (p. 43)
w
PTT SWITCH
➥ Push and hold to transmit; release to receive. (p. 24)
➥ Toggles between transmitting and receiving while the
one-touch PTT function is in use. (p. 25)
e VFO SWITCH [VFO (LOCK)]
➥ Push to select VFO mode. (p. 18)
➥ Push for 2 sec. to toggle the lock function. (p. 19)
r MEMORY SWITCH [MR (CALL)]
➥ Push to select memory mode.
➥ Push for 2 sec. to select the call channel. (p. 38)
t
ACTIVITY INDICATOR
Lights red while a key is pushed; lights green while the
one-touch PTT function is in use.
y BAND SWITCH [BAND (SUB)] (p.18)
➥ Push to toggle the operating band or set the sub band
as the main band.
➥ Push for 2 sec. to toggle the sub band access function.
u
FUNCTION SWITCHES [F-1]/[F-2] (p.67)
Assign your desired key function from the front panel
switches.
• Default settings are [VHF M/C] for [F-1] and [UHF M/C] for [F-2].
i
FUNCTION INDICATOR
➥ Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad. (p. 55)
o KEYPAD
Used for controlling the transceiver, transmitting DTMF sig-
nals, etc. See the following 2 pages for details.
10
2
PANEL DESCRIPTION
LOCK
VFO
CALL
MR
SUB
BAND
MW
FUNC
A CLR
D-OFF
B SET
PTT-M
3 PRIO
DTMF
6 LOW
AFC-OFF
2 SCAN
CSQL
5 MID
AFC
1 MONI
PGR
4 HIGH
T-OFF
C ENT
TSQL
9 SIMP
16KEY LOCK
#
TSQL S
8 DUP+
TONE-2
0
TONE
7 DUP–
TONE-1
F-2
F-1
DTMF-S
MUTE
D SQL SQL VOL VOL
Mic element
q
w
e r t
y
u
i
o
* Some versions are
supplied with the
HM-97/118 instead.
