Falcon ECC Memory Controller Chip Set
3
Accesses to the CSR are mapped differently depending on whether they
are reads or writes. For reads, CSR data read on the upper half of the data
bus comes from the upper Falcon while CSR data read on the lower half of
the data bus comes from the lower Falcon. (See
Figure 3-4 .)

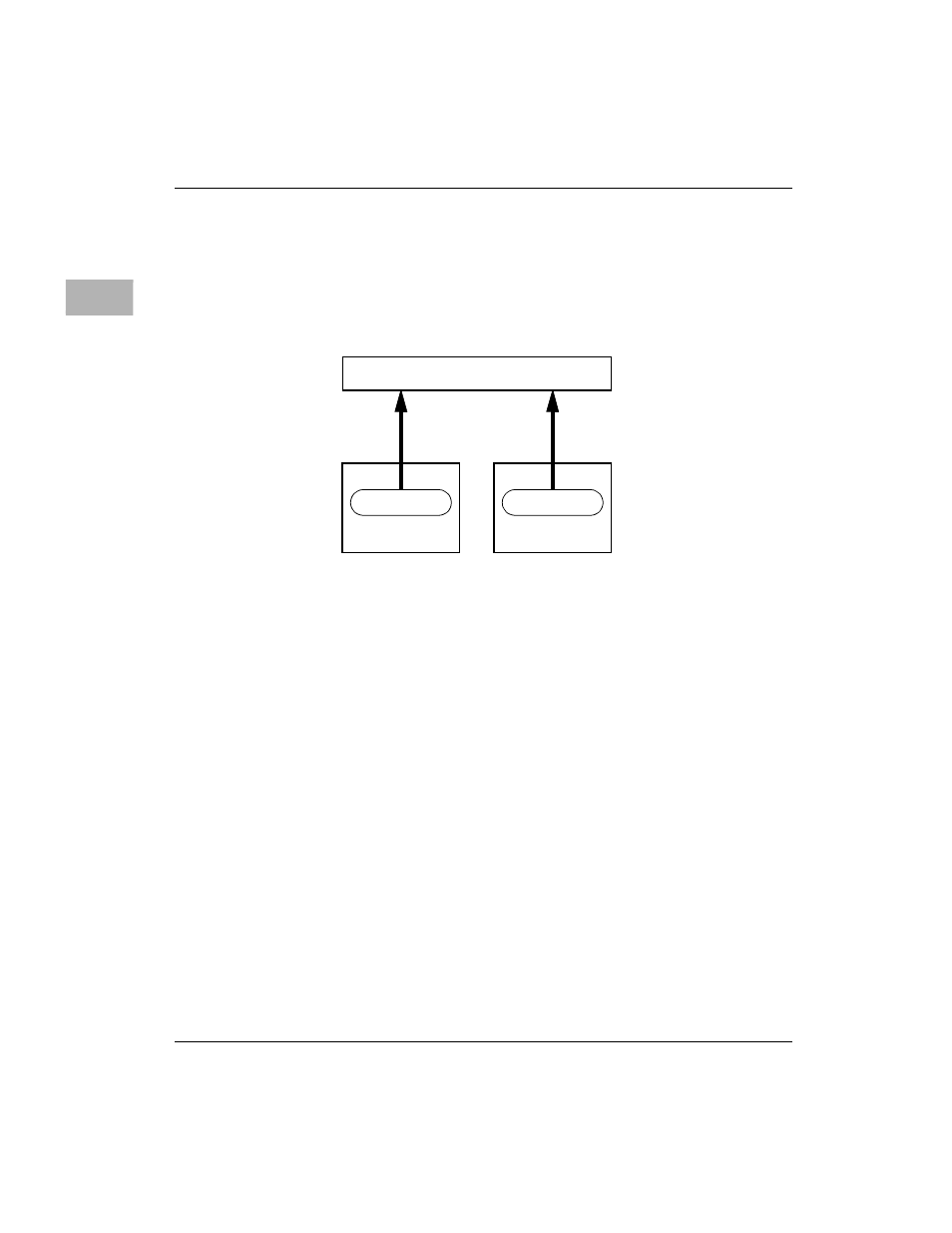

Figure 3-4. Data Path for Reads from the Falcon Internal CSRs
For writes, internal register or test SRAM data written on the upper half of
the data bus goes to the upper Falcon and is automatically copied by
hardware to the lower Falcon. Internal register or test SRAM data written
on the lower half of the data bus does not go to either Falcon in the pair,
but the access is terminated normally with TA_. (See
Figure 3-5 .)
Upper FALCON
1903 9609
U
p
per
Lower FALCON
Da
ta B
u
s
Lo
w
e
r
Da
ta B
u
s
CSR CSR
MPC60x Master
