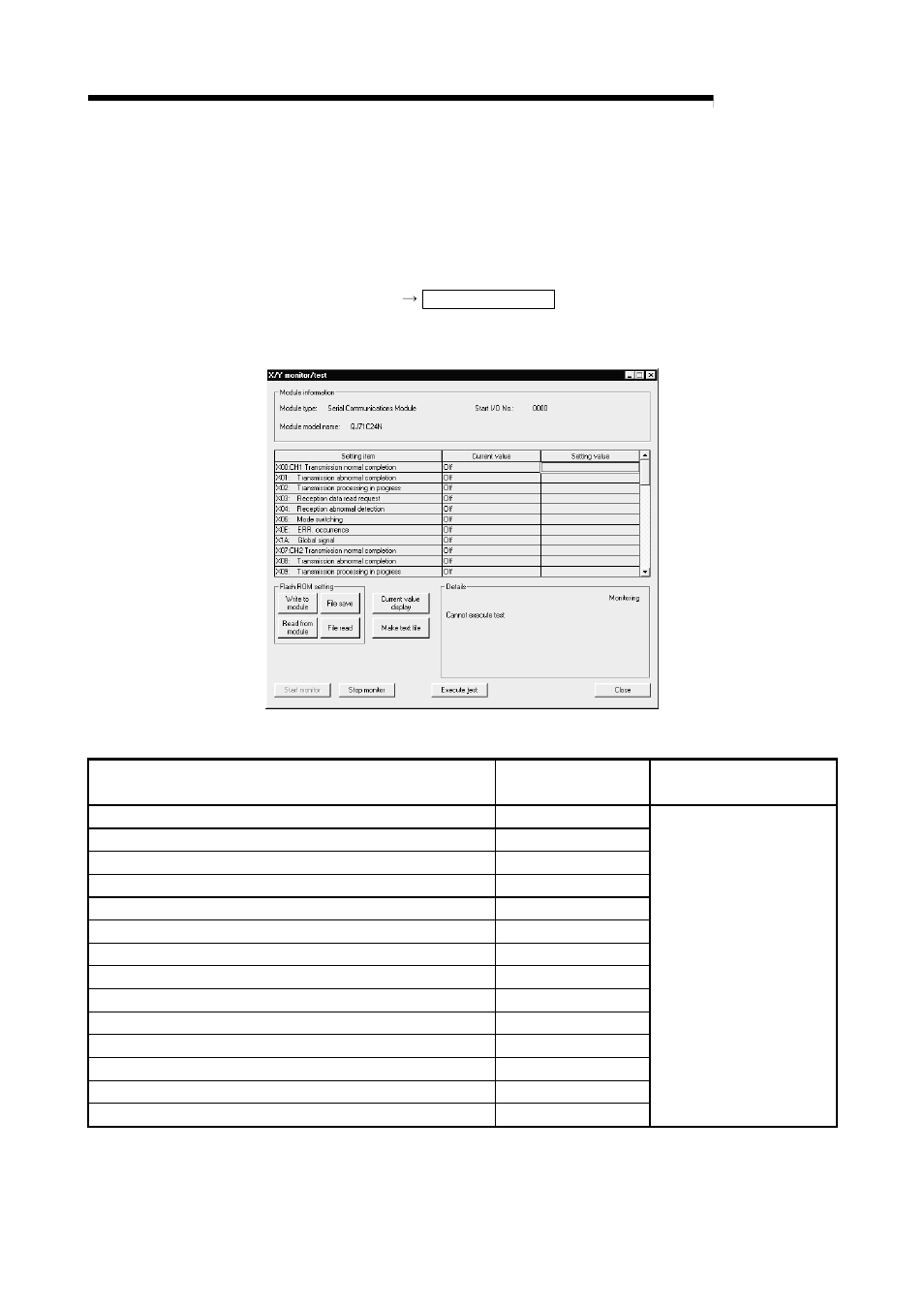

Page 212: Monitor/test screen] [monitor/test items

8 - 33 8 - 33

MELSEC-Q

8 UTILITY PACKAGE (GX Configurator-SC)

8.6.1 X · Y monitor/test

[Purpose]

Perform the monitoring of I/O signals and testing of output signals.

[Startup procedure]

[Monitor] screen X · Y monitor/test

[Monitor/test screen]

[Monitor/test items]

Monitor/test items

Setting value storage

buffer memory address

Reference section containing

detailed explanation

X00: CH1 Transmission normal completion

—

X01: CH1 Transmission abnormal completion

—

X02: CH1 Transmission processing in progress

—

X03: CH1 Reception data read request

—

X04: CH1 Reception abnormal detection

—

X06: CH1 Mode switching

—

X0E: CH1 ERR. Occurrence

—

X1A: CH1 Global signal

—

X07: CH2 Transmission normal completion

—

X08: CH2 Transmission abnormal completion

—

Y18: Flash ROM write request

—

Y19: Flash ROM system setting request

—

Y1C: System setting default request

—

Section 3.8.
