8 - 25 8 - 25
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.4.7 Non procedure system setting
[Purpose]
For data transmission using the non procedure protocol, register system setting
values.
[Startup procedure]
• Online operation
[Monitor] screen CH Non procedure system setting
• Offline operation
[Flash ROM setting] screen CH Non procedure system setting

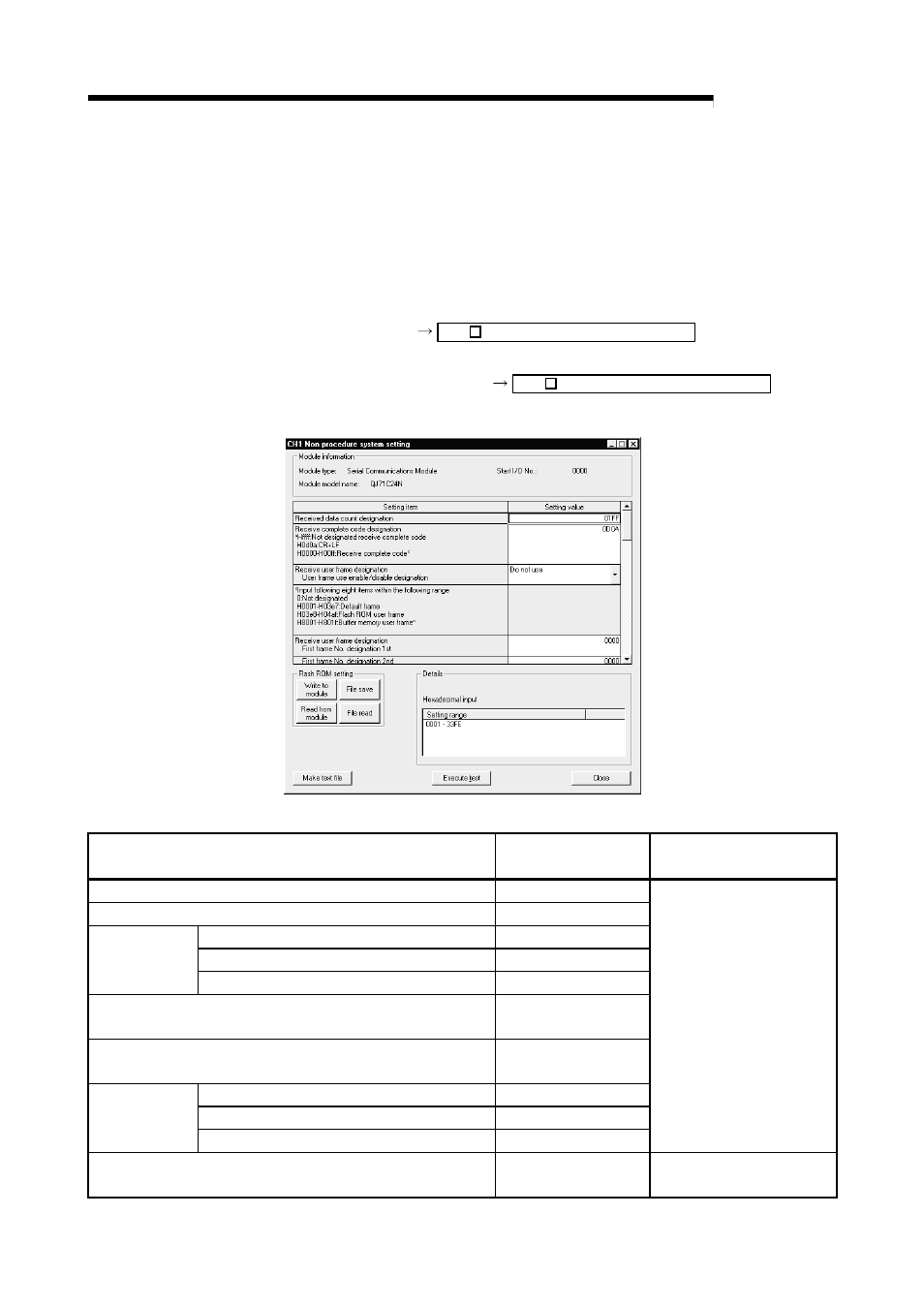

[Setting screen]
[Setting items]
Setting item
Setting value storage
buffer memory address
Reference section containing
detailed explanation
Received data count designation A4 H /144 H
Receive complete code designation A5
H
/145
H
Chapter 6 of
User's Manual (Basic)
User frame use enable/disable designation AD H /14D H
First frame No. designation 1st to 4th AE
H
to B1
H
/14E
H
to 151
H
Receive user
frame
designation Last frame No. designation 1st to 4th B2
H
to B5
H
/152
H
to 155
H
User frame receive format designation 1st to 4th
2020 H to 2023 H /
2120
H
to 2123
H
Exclusive format-1 received data count 1st to 4th
2024 H to 2027 H /
2124
H
to 2127
H
CR/LF output designation B7 H /157 H
Output head pointer designation B8 H /158 H
Transmission
user frame
designation Output count designation B9
H
/159
H
Chapters 9 and 11 of
User's Manual (Application)
Timeout at No-protocol 2014
H
/2114
H
Chapters 6 of
User's Manual (Application)
