8 - 21 8 - 21
MELSEC-Q
8 UTILITY PACKAGE (GX Configurator-SC)
8.4.4 Modem function system setting/registration
[Purpose]
For data communication using the modem function, register system setting
values.
[Startup procedure]
• Online operation
[Monitor] screen Modem function system setting
• Offline operation
[Flash ROM setting] screen Modem function system setting

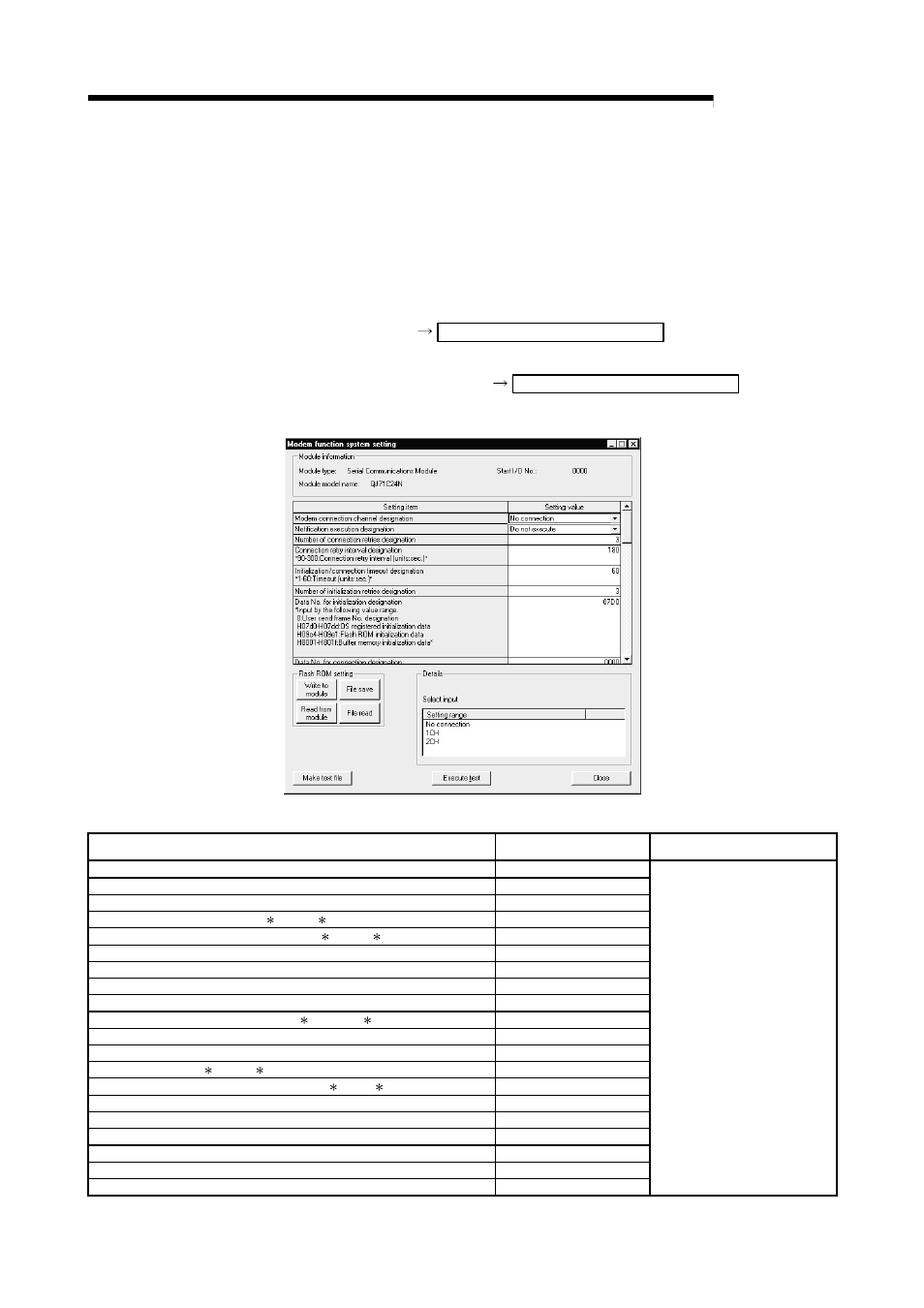

[Setting screen]
[Setting items]
Setting item
Setting value storage buffer
memory address
Reference section containing detailed
explanation
Modem connection channel designation 2E H
Notification execution designation 2F H
Number of connection retries designation 30 H
Connection retry interval designation units: s 31 H
Initialization/connection timeout time designation units: s 32 H
Number of initialization retries designation 33 H
Data No. for initialization designation 34 H
Data No. for connection designation 35 H
GX Developer connection designation 36 H
No-communication interval time designation units: min 37 H
RS · CS control yes/no designation 38 H
Modem initialization time DR signal valid/invalid designation 2008 H
Wait time of notification units: s 200A H
Circuit disconnect wait time (PLC CPU watch use) units: s 200E H
Remote password mismatch notification count designation 200C H
Remote password mismatch notification accumulated count designation 200D H
Auto modem initialization designation 2007 H
Callback function designation 2001 H
Callback denial notification accumulated count designation 2002 H
Data No. for callback designation 1 to 10 2101 H to 210A H
Chapter 3 of
User's Manual (Application)
