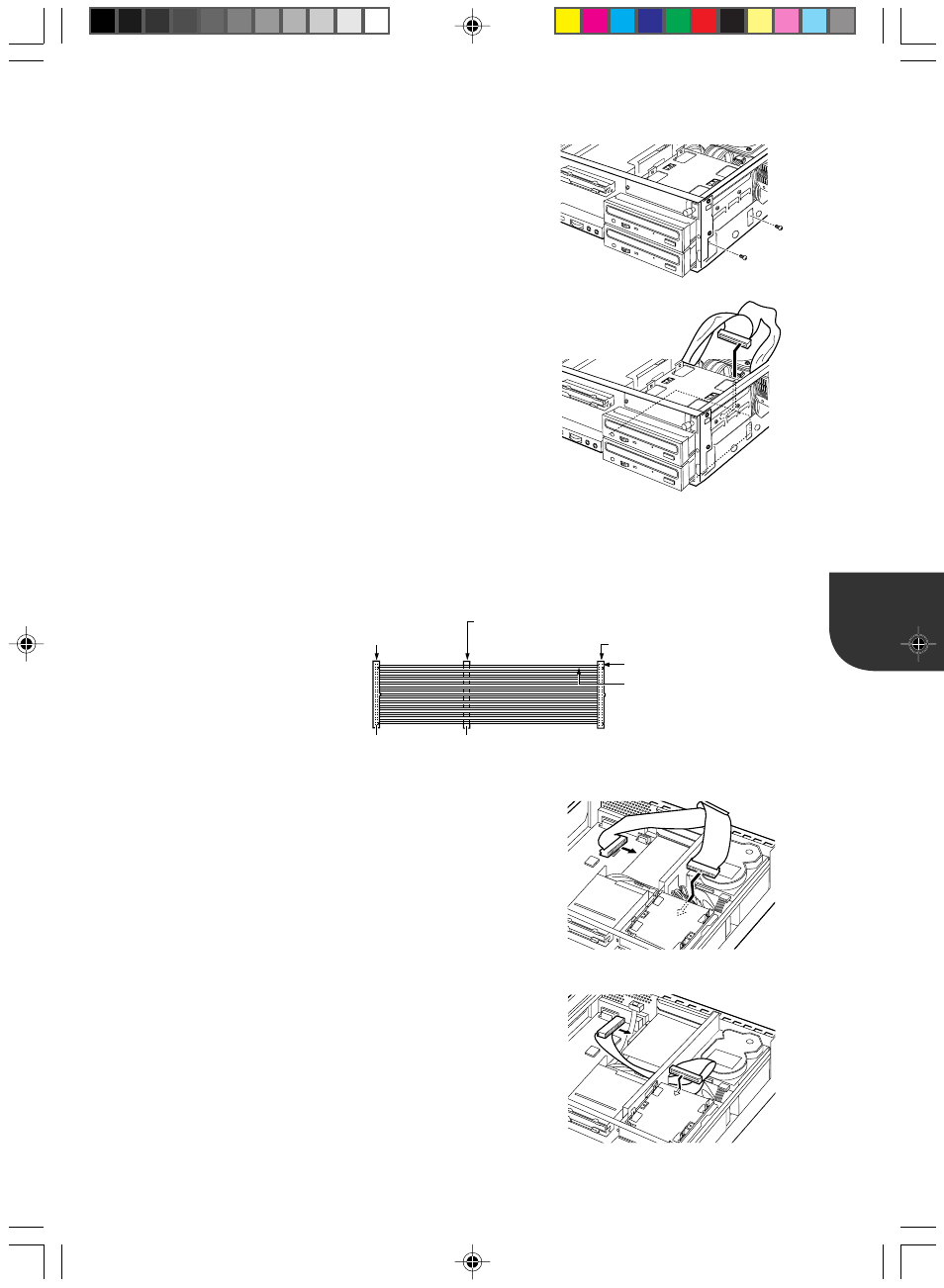

Secure the internal option with two screws.
7
Connect the flat cable.
Connect the flat cable appropriate for the
internal option to be installed.
- To install an IDE-standard internal option,
connect the flat cable to the master or slave
connector according to the setting of the
internal option.
If a magneto-optic disk has been installed by
a custom-made specification, connect the
magneto-optic disk drive to the master
connector and the other internal option to
the slave connector. However, to install a
hard disk, connect the hard disk to the
master connector and connect the magneto-
optic disk drive to the slave connector.
- To install a SCSI interface internal option:
Connect the flat cable to the SCSI card in the
expansion slot.
- To install a floppy disk drive:
Connect the flat cable to the expansion card
of the internal floppy disk drive in the
expansion slot.
Connected to the riser board
Connected when set to the slave
Connected when set to the master
SLAVE MASTER
Blue or red line
Pin 1
