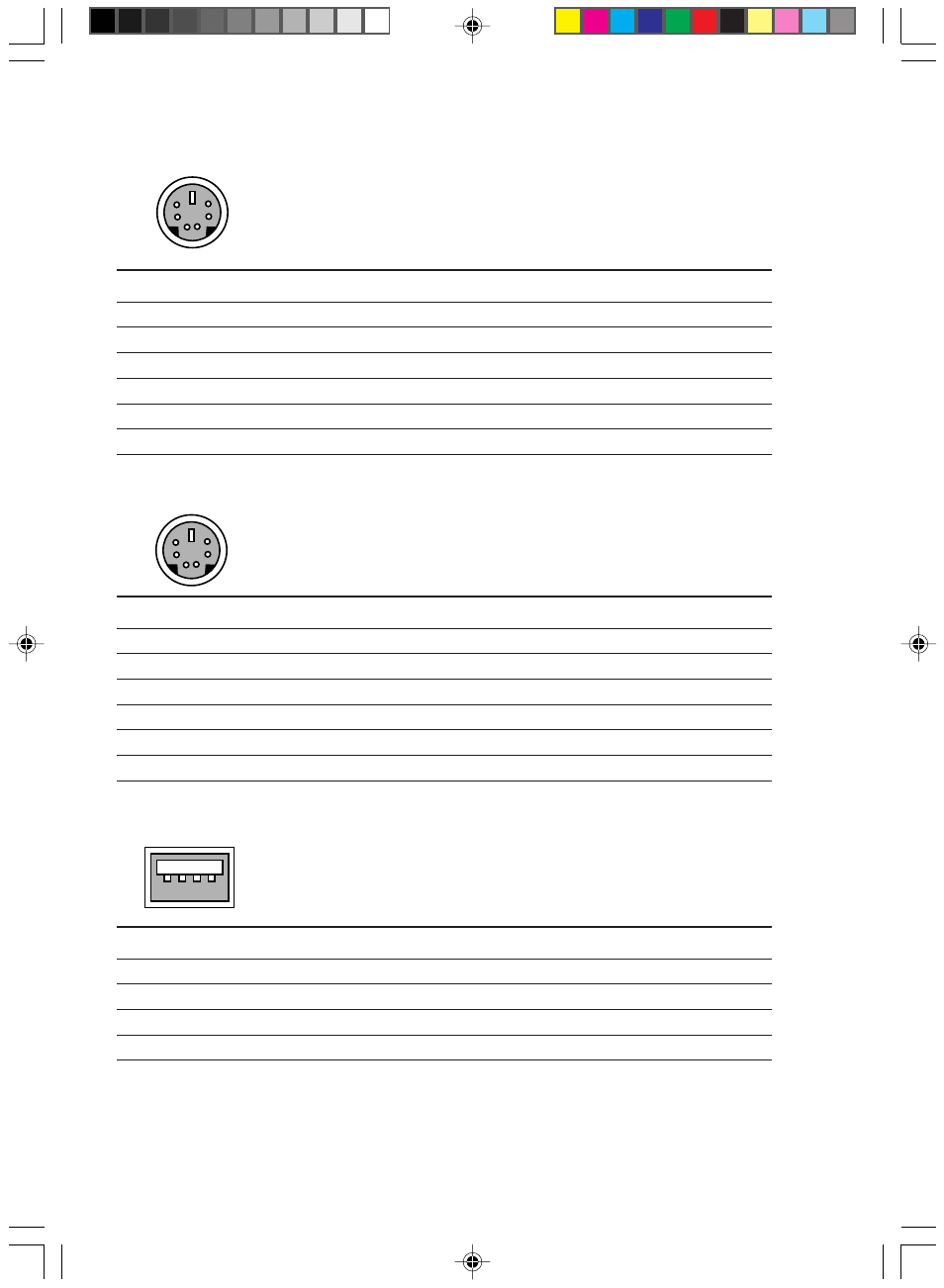

USB connector (SeriesA)

Pin no.

Signal name

Direction

Description

1

VCC

–

Cable, power supply

2

-DATA

Input/output

- data signal

3

+DATA

Input/output

+ data signal

4

GND

–

Cable, ground

1 2 3 4

●

Keyboard connector

Pin no.

Signal name

Direction

Description

1

DATA

Input/output

Data

2

NC

–

Not connected

3

GND

–

Ground

4

VCC

–

Power supply

5

CLK

Input/output

Clock

6

NK

–

Not connected

6

4

2

5

3

1

Pin no.

Signal name

Direction

Description

1

DATA

Input/output

Data

2

NC

–

Not connected

3

GND

–

Ground

4

VCC

–

Power supply

5

CLK

Input/output

Clock

6

NK

–

Not connected

6

4

2

5

3

1

●

Mouse connector
