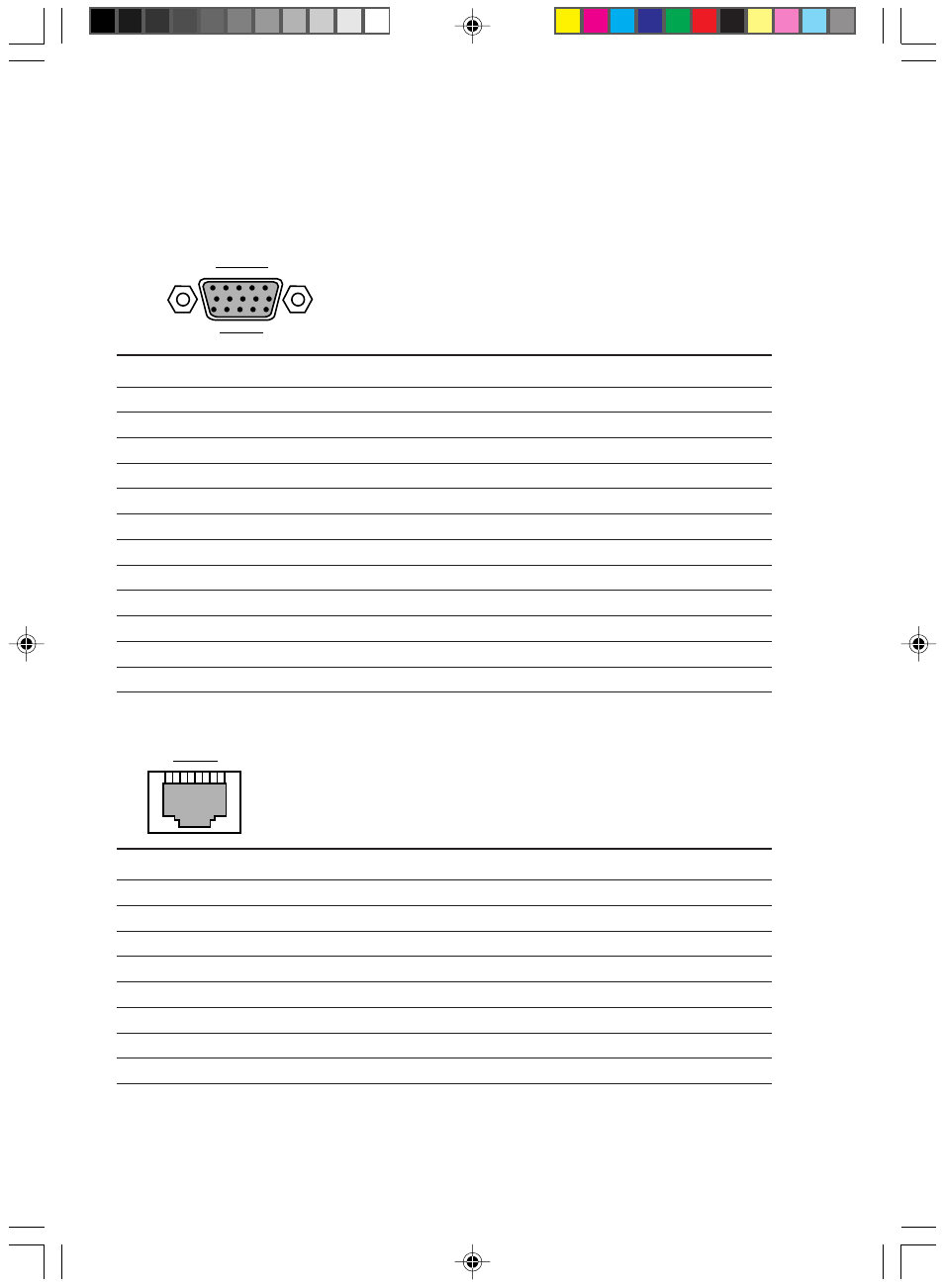

Connector specifications
○ ○ ○ ○ ○ ○ ○
The pin arrangement and signal names of each connector are as follows:
● CRT connector
Pin no. Signal name Direction Description
1 TD+ Output Send data+
2 TD- Output Send data-
3 RD+ Input Receive data+
4 NC – Not connected
5 NC – Not connected
6 RD- Input Receive data-
7 NC – Not connected
8 NC – Not connected
Pin no. Signal name Direction Description
1 RED Output Red output
2 GREEN Output Green output
3 BLUE Output Blue output
4 NC – Not connected
5 to 8 GND – Ground
9 +5V – +5V
10 GND – Ground
11 NC – Not connected
12 SDA Input/output Data
13 HSYNC Output Horizontal synchronous signal
14 VSYNC Output Vertical synchronous signal
15 SCL Input/output Data clock
● LAN connector (100BASE-TX/10BASE-T)
