83
CHAPTER 4 I/O PORTS
■ Block diagram of port 2 pins

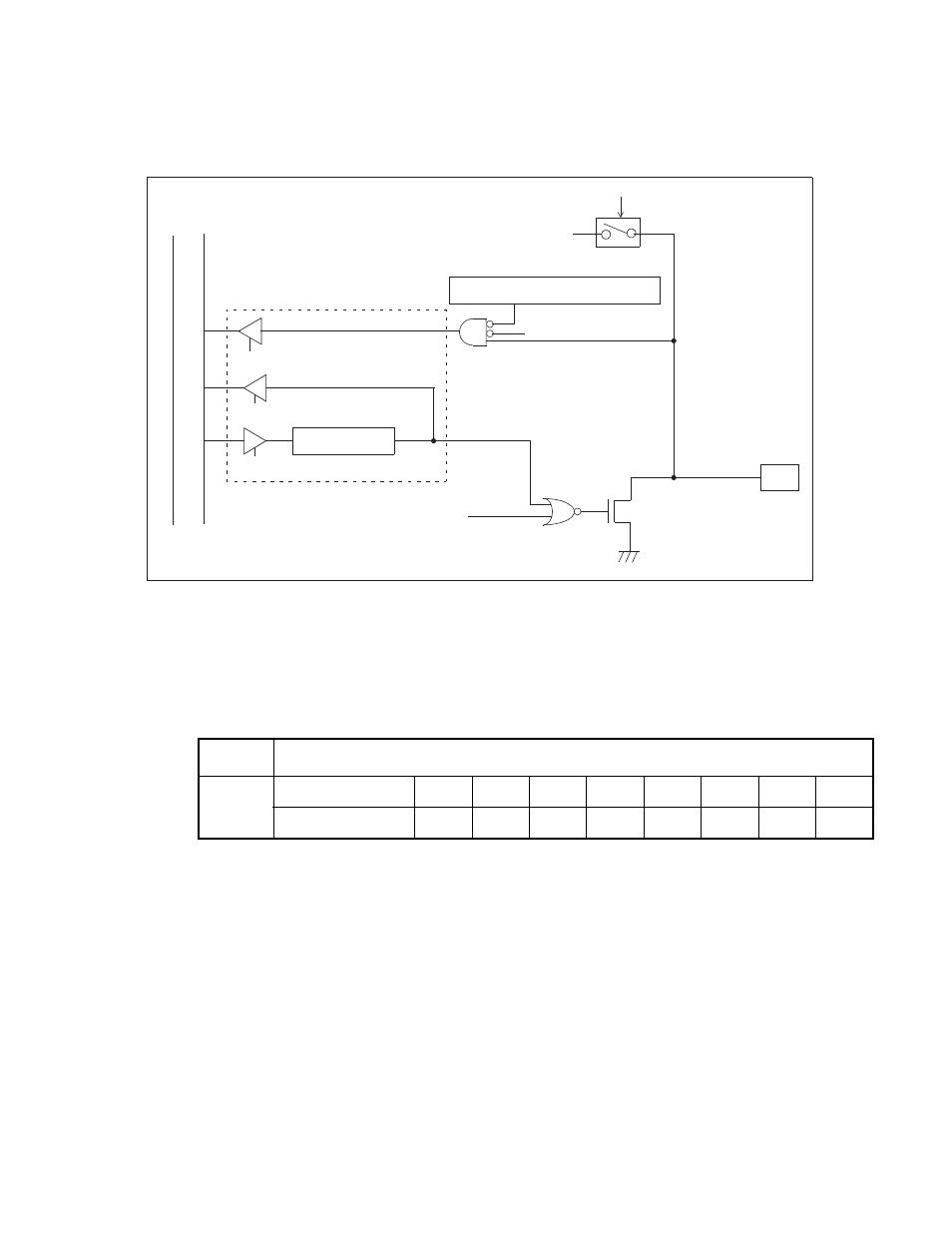

Figure 4.4-1 Block diagram of port 2 pins
■ Port 2 register
The port 2 register consists of PDR2. Each bit in the register has a one-to-one relationship with a port 2 pin.
Table 4.4-2 "Correspondence between pin and register for port 2" shows the correspondence between the
pins and register for port 2.
PDR (Port data register)
In
te
rnal
dat
a
bus
PDR read (for bit manipulation instructions)
Output latch
PDR write
Pin
N-ch
Stop mode (SPL = 1)
SPL: Pin state specification bit in the standby control register (STBC)
PDR read
Stop mode (SPL = 1)
LCD segment driver output
Mask option
Segment driver output select register
Table 4.4-2 Correspondence between pin and register for port 2
Port Correspondence between register bit and pin
Port 2
PDR2 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Corresponding pin -- -- P25 P24 P23 P22 P21 P20
