CHAPTER 4 I/O PORTS

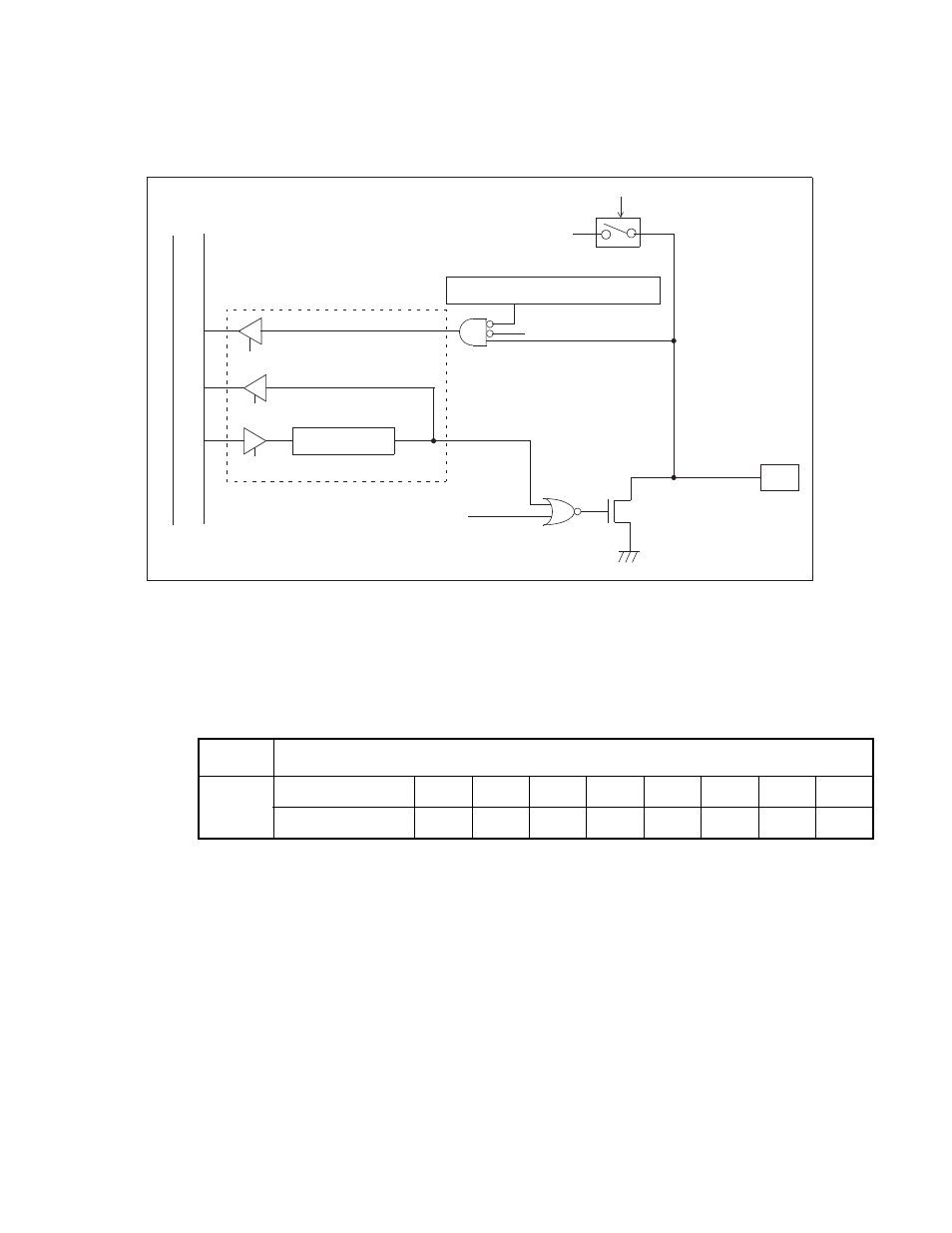

■ Block diagram of port 1 pins
Figure 4.3-1 Block diagram of port 1 pins
■ Port 1 register
The port 1 register consists of PDR1. Each bit in the register has a one-to-one relationship with a port 1 pin.
Table 4.3-2 "Correspondence between pin and register for port 1" shows the correspondence between the
pins and register for port 1.
PDR (Port data register)
In
te
rnal
dat
a
bus
PDR read (for bit manipulation instructions)
Output latch
PDR write
Pin
N-ch
Stop mode (SPL = 1)
SPL: Pin state specification bit in the standby control register (STBC)
PDR read
Stop mode (SPL = 1)
LCD segment driver output
Mask option
Segment driver output select register
Table 4.3-2 Correspondence between pin and register for port 1
Port Correspondence between register bit and pin
Port 1
PDR1 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Corresponding pin P17 P16 P15 P14 P13 P12 P11 P10
