51
CHAPTER 3 CPU
3.6.1
Clock Generator
Enable and stop of the main clock oscillation are controlled by clock and stop mode
respectively.
■ Clock generator
●
Crystal or ceramic resonator
Connect as shown in Figure 3.6-2 "Connection example for a crystal or ceramic resonator".

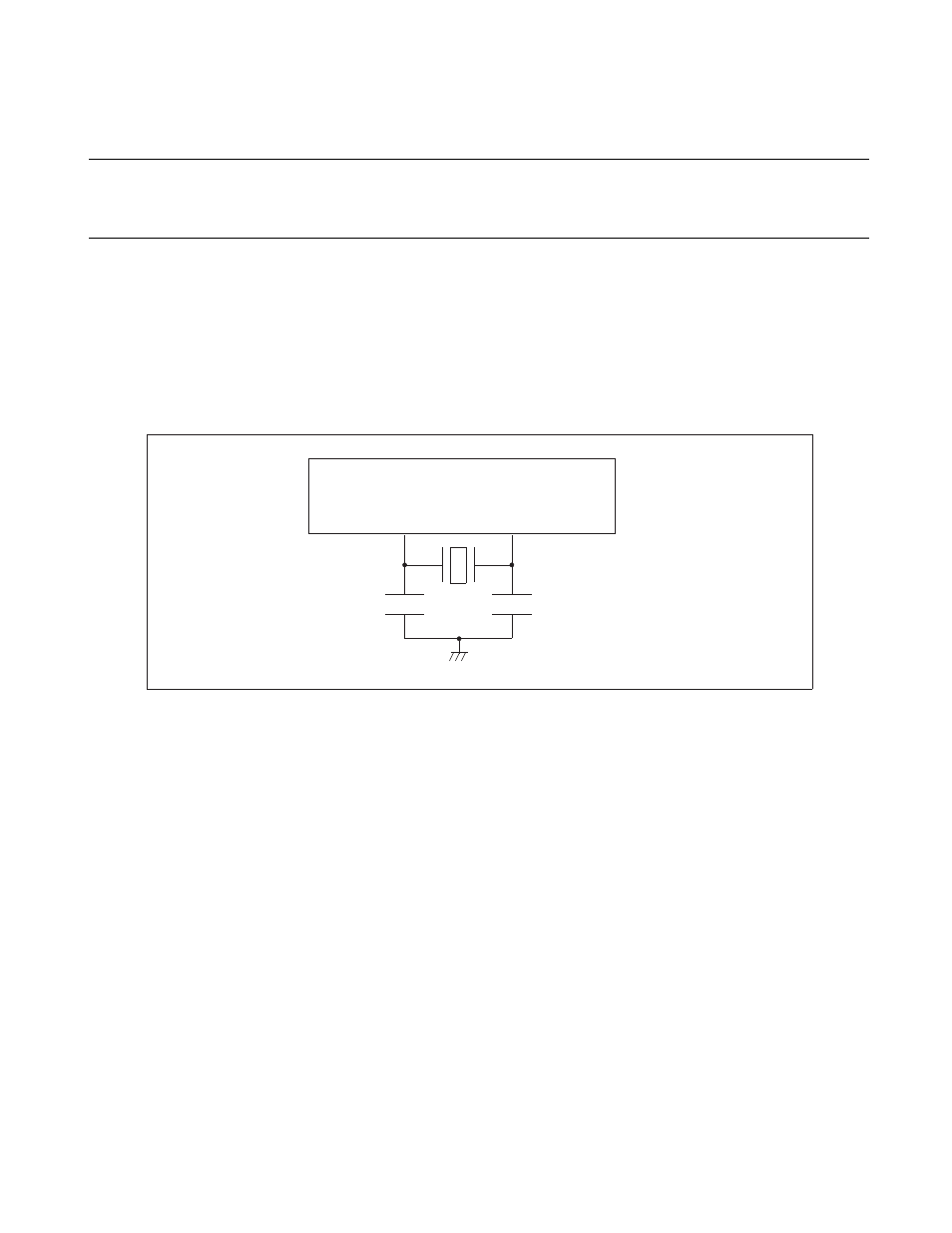

Figure 3.6-2 Connection example for a crystal or ceramic resonator
Reference:
A piezoelectric resonator (FAR series) that contains the external capacitors can also be used.
See Data Sheet for details.
X0
X1
C
C
Main clock
oscillator
MB89950/950A series
