Model D2424 Reference Manual (MIDI Sync Function)
80

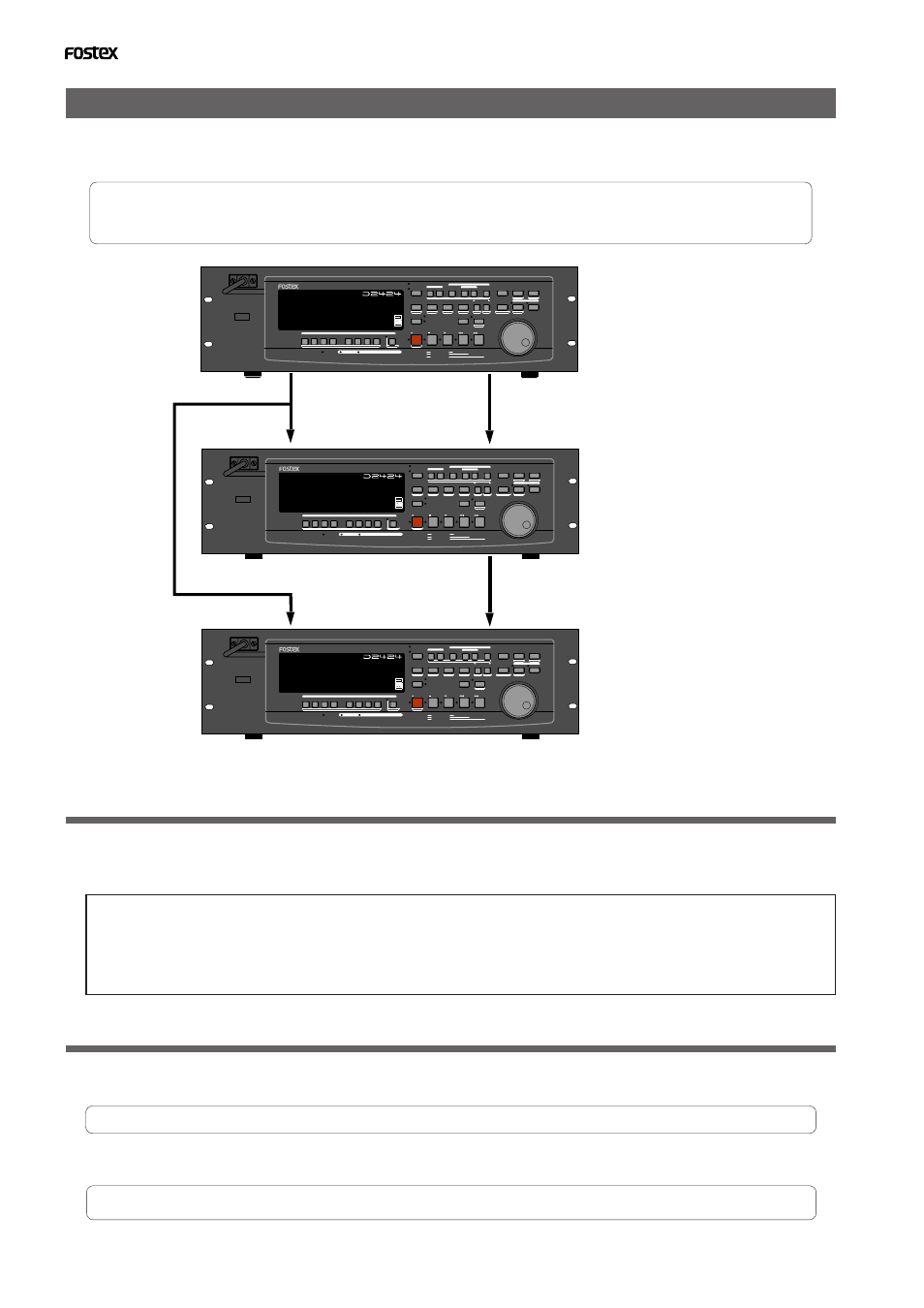

Multitrack system by the slave mode
An example of how to make a multitrack system by interconnecting three recorders in a slave
mode function, will be explained in the following.
* Initialize the recorder.
* Confirm the program.
* Set all three recorder’s to the same sampling frequency.
Equipment interconnections
1.From the recorder (#1) to the recorder (#2), connect WORD OUT to WORD IN and MIDI OUT to MIDI IN.
2.From the recorder (#1) to the recorder (#3), connect WORD OUT to WORD IN.
3.From the recorder (#2) to the recorder (#3), connect MIDI THRU (Note!!!) to MIDI IN.
* In order to slave drive the recorder with each other, the best setting is to supply word clock signals together with
MTC from the master.
* As shown in the above schematic, at input or the Word Clock from the master to the second slave, WORD OUT
from the master must always be branched to the second slave. Do not connect the first slave WORD OUT to the
second slave WORD IN .
Setup of the recorder (#1):
1. Because MTC, which is the reference for sync, is output from the recorder (#1), set the “MIDI sync signal
output setting” of the SETUP mode to “MTC.”
Refer to page “ 113 ”, SETUP mode “MIDI sync signal output setting” for operating procedure and details.
2. A random frame rate to be used is set by the SETUP mode “MTC Frame rate setting.”
Refer to page “ 113 ”, SETUP mode “MTC Frame rate setting” for operating procedure and details.
Master <#1>
[Clock Sel?]=Int.
Slave <#2>
[Clock Sel?]=Word
Slave <#3>
[Clock Sel?]=Word
MIDI IN
MIDI OUT
MIDI IN
MIDI THRU
WORD IN
WORD OUT
WORD IN
POWER HOLD
RECORD STOP PLAY REW F FWD
ALL INPUT ALL READY
LOCATE REC END
VARI PITCH PUNCH LOCATE REHEARSAL
TAKE
RECALL STORE
EXIT/NO EXECUTE/YES PGM SEL
NEXT PREV UNDO/REDO
PREVIEW
EDIT SETUP
AUTO RTN
OUT IN AUTO PLAY START OUT IN END
17-24 ACCESS 9-16
1/9/17 2/10/18 3/11/19 4/12/20 5/13/21 6/14/22 7/15/23 8/16/24
FOOT SW
LOCATE ABS 0 CLIPBOARD PLAY
AUTO
TRACK SHIFT
SHIFT
DISP SEL CHARACTER
TIME BASE SEL
P.EDIT
EJECT
ENVELOPE
CHASE
TC READY TC GEN M.UNDO
TRACK SHIFT
PREV TC NEXT TC
RECORD TRACK
CLIPBOARD AUTO PUNCH AUTO RTN
LOCATE MEMORY
24bit
96kHz
OPTICAL
24TRACK DIGITAL RECORDER
POWER HOLD
RECORD STOP PLAY REW F FWD
ALL INPUT ALL READY
LOCATE REC END
VARI PITCH PUNCH LOCATE REHEARSAL
TAKE
RECALL STORE
EXIT/NO EXECUTE/YES PGM SEL
NEXT PREV UNDO/REDO
PREVIEW
EDIT SETUP
AUTO RTN
OUT IN AUTO PLAY START OUT IN END
17-24 ACCESS 9-16
1/9/17 2/10/18 3/11/19 4/12/20 5/13/21 6/14/22 7/15/23 8/16/24
FOOT SW
LOCATE ABS 0 CLIPBOARD PLAY
AUTO
TRACK SHIFT
SHIFT
DISP SEL CHARACTER
TIME BASE SEL
P.EDIT
EJECT
ENVELOPE
CHASE
TC READY TC GEN M.UNDO
TRACK SHIFT
PREV TC NEXT TC
RECORD TRACK
CLIPBOARD AUTO PUNCH AUTO RTN
LOCATE MEMORY
24bit
96kHz
OPTICAL
24TRACK DIGITAL RECORDER
POWER HOLD
RECORD STOP PLAY REW F FWD
ALL INPUT ALL READY
LOCATE REC END
VARI PITCH PUNCH LOCATE REHEARSAL
TAKE
RECALL STORE
EXIT/NO EXECUTE/YES PGM SEL
NEXT PREV UNDO/REDO
PREVIEW
EDIT SETUP
AUTO RTN
OUT IN AUTO PLAY START OUT IN END
17-24 ACCESS 9-16
1/9/17 2/10/18 3/11/19 4/12/20 5/13/21 6/14/22 7/15/23 8/16/24
FOOT SW
LOCATE ABS 0 CLIPBOARD PLAY
AUTO
TRACK SHIFT
SHIFT
DISP SEL CHARACTER
TIME BASE SEL
P.EDIT
EJECT
ENVELOPE
CHASE
TC READY TC GEN M.UNDO
TRACK SHIFT
PREV TC NEXT TC
RECORD TRACK
CLIPBOARD AUTO PUNCH AUTO RTN
LOCATE MEMORY
24bit
96kHz
OPTICAL
24TRACK DIGITAL RECORDER
