OPERATOR’S MANUAL
10" Virtual Terminal
11001-1440-200701
GLOBAL POSITIONING SYSTEM (GPS) /
ANTENNA LOCATION
The GPS antenna’s mounting location must be entered into the VT in
relation to the tractor and the implement to establish an accurate reference
point in the field.
TRACTOR OFFSET
Antenna location is based on the distance of the center rear implement axle
to the location the antenna is mounted on the tractor. GPS coordinates can
then be precisely calculated for all devices connected to the Virtual
Terminal.
Three offset positions are required:
• Antenna to the rear axle center position
• Left or right position the antenna is from the rear axle
• Forward or backward position the antenna is from the rear axle
NOTE: Reference the GPS operator’s
manual for preferred mounting
locations.

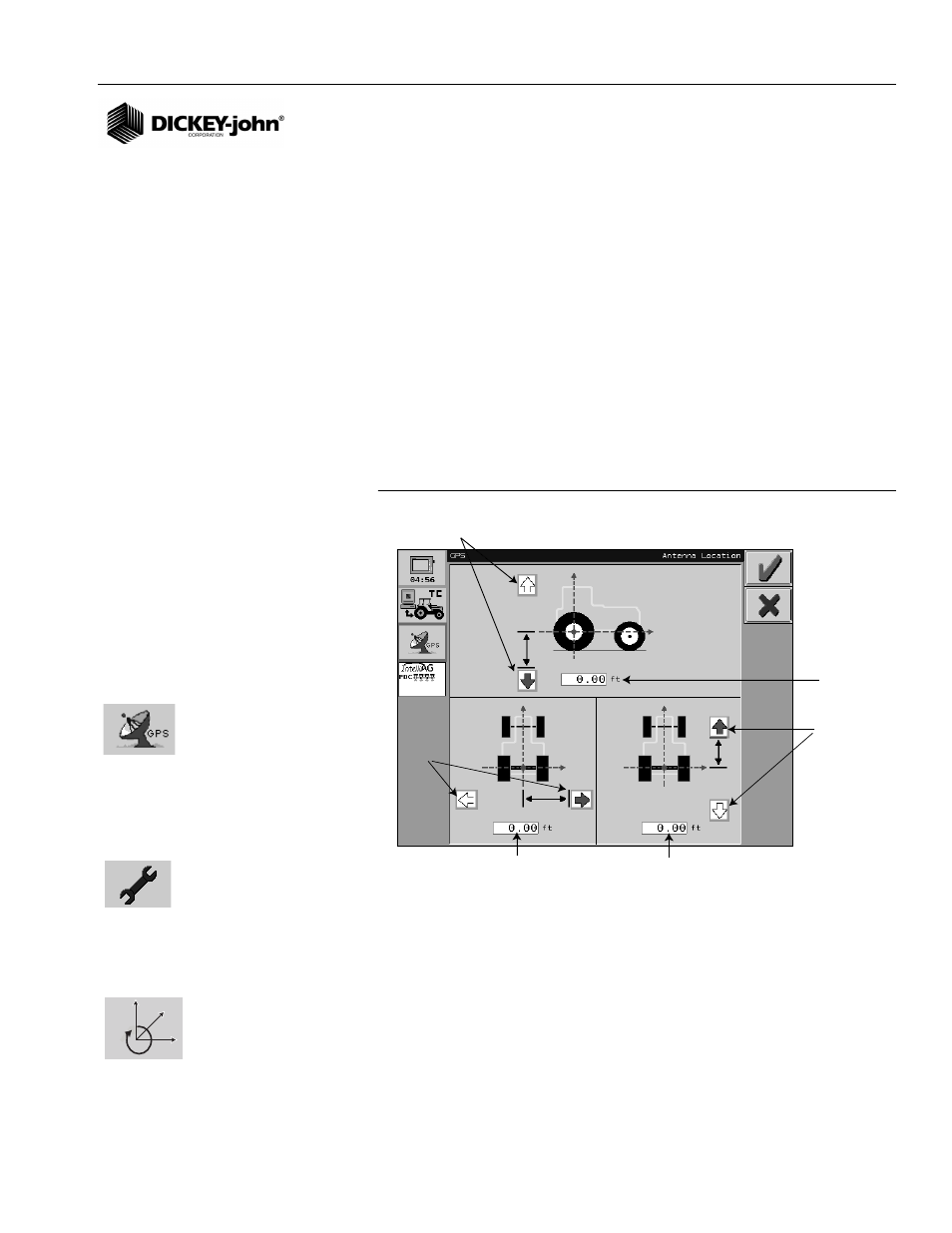

Figure 62
Antenna Location screen
To setup Antenna Location:
1. Press the GPS button to display the GPS Main Screen.
2. Press the GPS Setup button to display the GPS Setup screen.
3. At the GPS Setup screen, press the Antenna Location button.
4. For each offset position, press the appropriate offset arrow and enter
the distance (feet) from the antenna location.
5. After all 3 entries are entered, press the checkmark to save or the ‘X’
to cancel.
IMPORTANT: Implement Offset coordinates for proper GPS readings
must be entered in the IntelliAg system. Refer to the
Implement Offset section of the IntelliAg manual.
Input box for center
position distance of
rear axle to the
antenna
Input box for forward or back
position of rear axle Input box for left or right
position of rear axle
Offset
Arrows
Offset arrows for antenna
position from rear axle
Offset
Arrows
GPS button
GPS Setup button
Antenna Location button
