OPERATOR’S MANUAL
10" Virtual Terminal
11001-1440-200701
24 / TRACTOR ECU
I/O SENSOR CONFIGURATION
The I/O Sensor Configuration screen configures the sensors displayed on
the TECU Work screen that includes wheel speed, radar speed, PTO and
three-point hitch.
Enable or disable the desired items to display on the TECU Work screen by
pressing the desired check box (TECU defaults are all items enabled).
– Wheel speed
– Radar ground speed
– PTO speed
– Three-point hitch switch
– Three-point hitch position
NOTE: If unused sensors remain
enabled, the icons will appear
on the Work screen but will
display with 0 values.
1. Press the I/O Sensor Configuration button to display the I/O Sensor
Configuration screen (
Figure 18
).
2. Enable or disable the desired sensors to display by pressing the
desired check box.

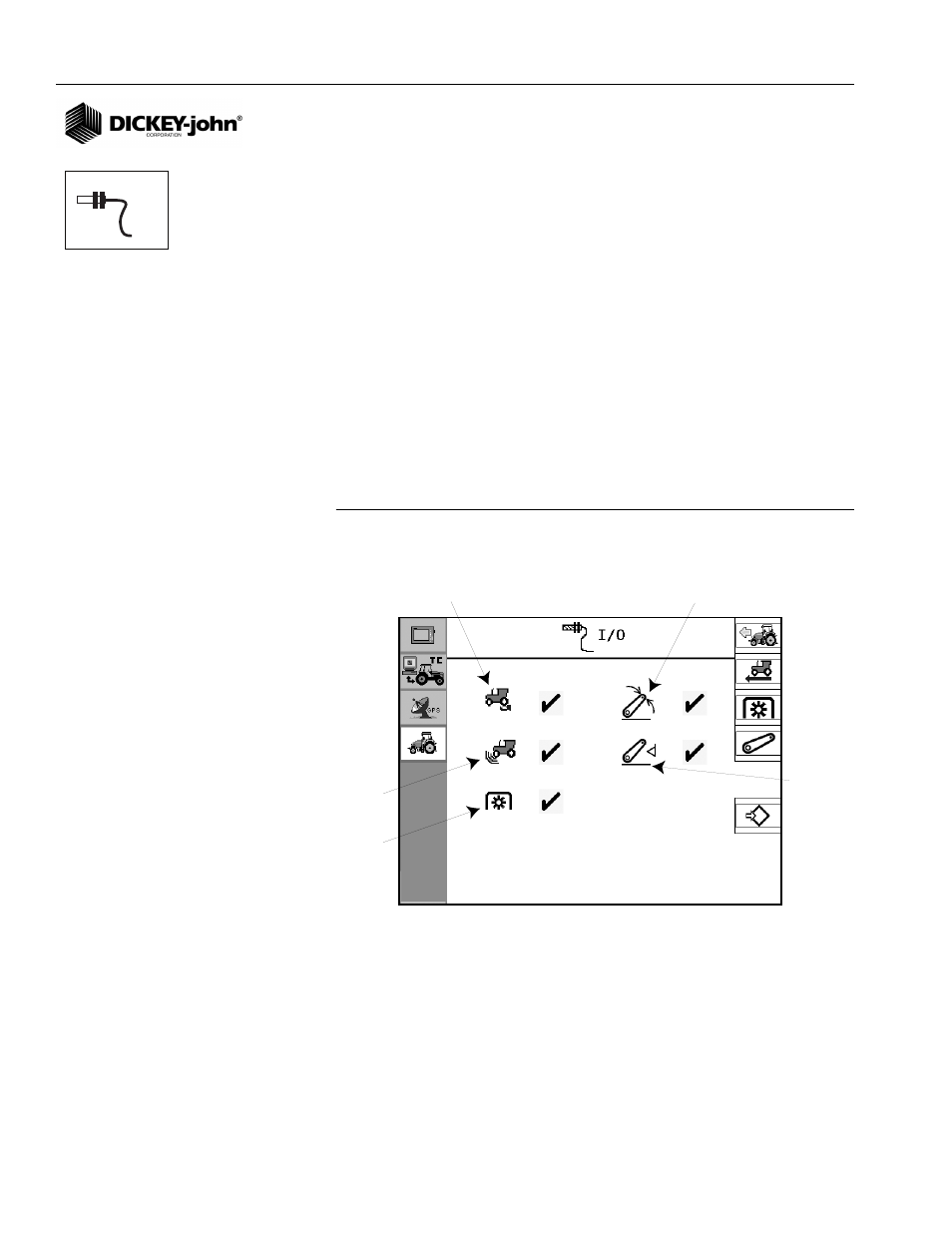

Figure 18
I/O Sensor Configuration Screen
I/O
Wheel
Speed
Radar
PTO
Speed
Hitch Switch
Hitch
Position
I/O Sensor Configuration button
