4 / VT INSTALLATION
CAB HARNESS CONNECTIONS

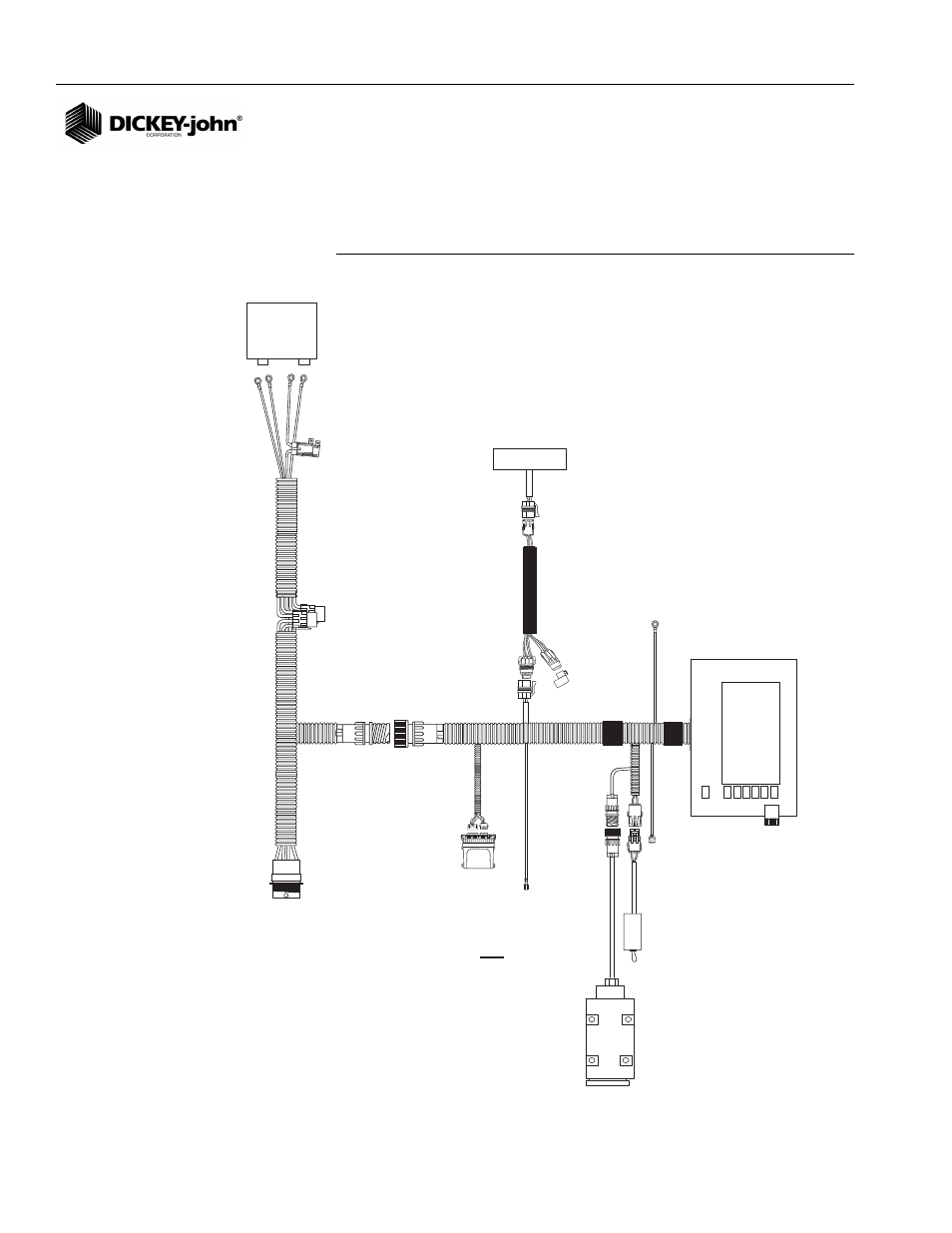

The following diagram illustrates cab harness layout and connections for
the 10” Virtual Terminal.
Figure 3
Cab Harness Layout and Connections
Chassis
Ground
CAN
Terminator
467980126
Ignition
Connect to switched
+12VDC
NOTE: This wire
must be connected to
switched +12VDC
Master
Switch
467980124
Radar Speed Sensor
(If not connected to WSMT)
+
-
To Implement CAN
Harness
System
Power
Harness
467980450 or
467980455
Battery
Tractor
Harness
467980451A
BSM/CFM (optional)
RS232
GPS
Virtual
Terminal
Tractor
ECU
467985060S1
467980502
