OPERATOR’S MANUAL
10" Virtual Terminal
11001-1440-200701
VT INSTALLATION / 3
VT INSTALLATION
The VT is secured in the tractor cab by a VT bracket that is installed in a
location that does not obstruct the view of operating the tractor.
MOUNTING BRACKET FEATURES
• Ball mount at the top and bottom of the bracket allows for the VT to be
oriented in many different positions.
• The wing bolt in the middle of the bracket is used to tighten and secure
the VT in the desired position.
NOTE: The VT mounting screws
included are Metric. The
hardware for mounting the
bracket to the cab are SAE.

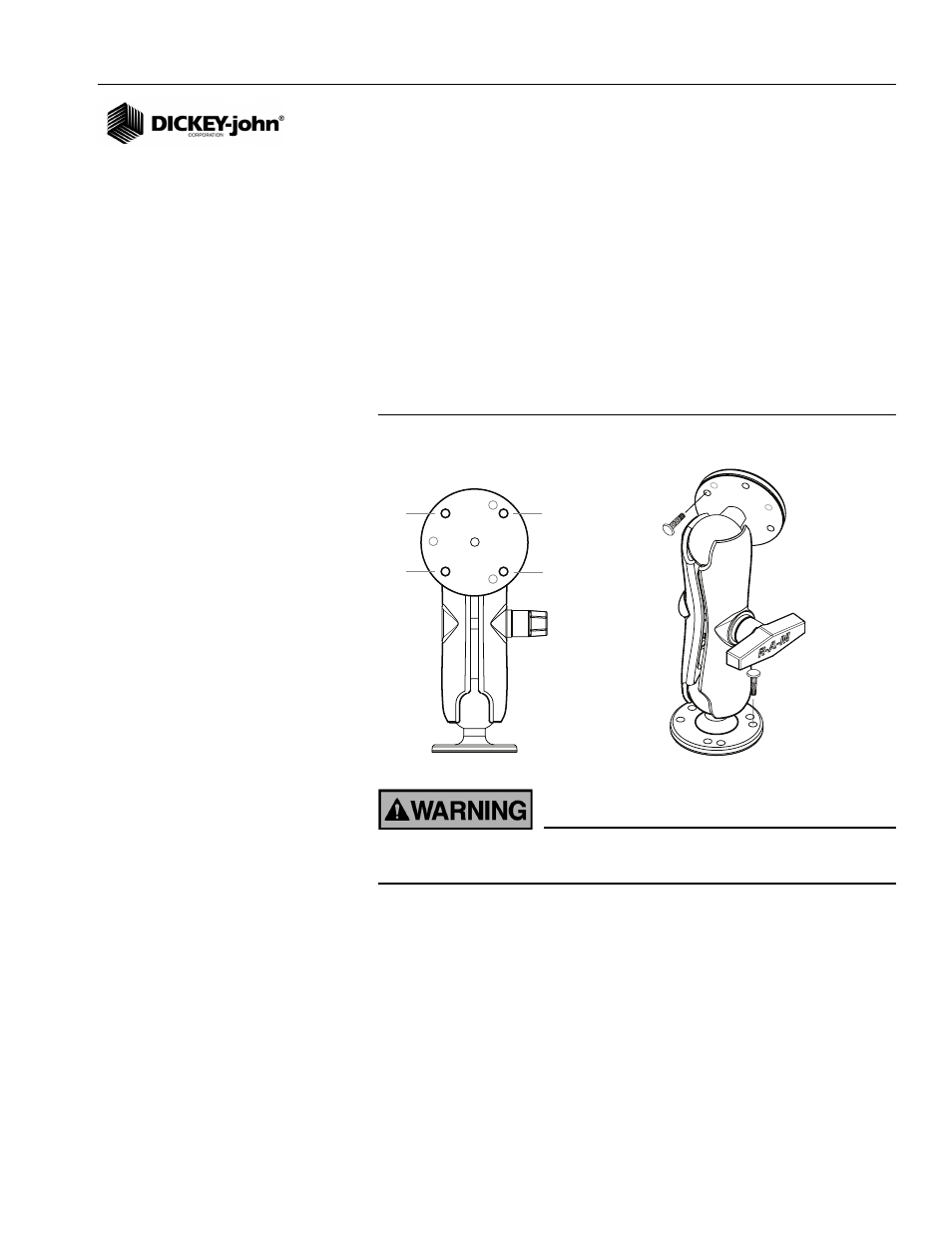

Figure 2
Mounting Bracket Installation
The console must not obstruct the view of the operator or interfere
with the operation of the tractor.
Once the Virtual Terminal has been mounted, connect the Tractor (Cab)
Harness as illustrated in (
Figure 3 ).
Secure VT to bracket using
4 Metric screws (included)
Secure bracket to
tractor cab using 4
SAE screws (included)
1 2
3 4
