8 / VT DISPLAY

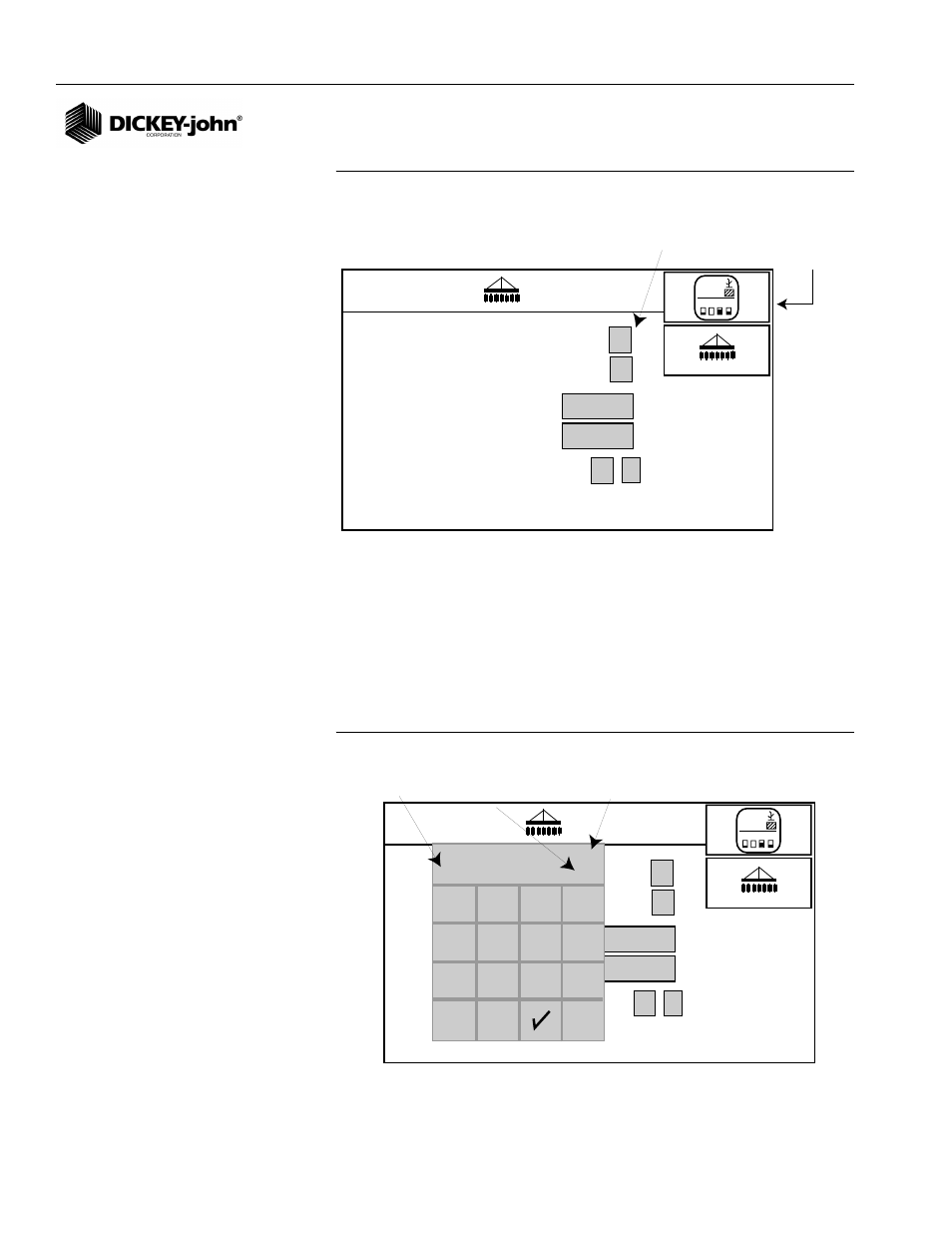

Figure 4
Yellow Box Example
TOUCH SCREEN DATA ENTRY
NOTE: When editing a data item using
the touch pad, all other screens
are inactive. Cancel the touch
pad by pressing “X” to return to
the previous screen. Pressing
“X” will cancel unsaved
settings and revert to the
previous setting.
1. Touch the screen to select a data item to edit.
2. A touch pad will appear to enter a desired setting. Refer to (
Figure 6 )
for touch pad definitions.
Using a combination of the touch screen feature and scrolling the rotary
knob is also possible.
Figure 5
Touch Screen Key Pad
23.4
43.8
1 2 3 4
I / O L o w A l a r m D e l a y 5 s e c
P o p u l a t i o n A d j u s t 1 0 0 . 0 %
P o p u l a t i o n F i l t e r 0 . 0 %
R o w F a i l R a t e 2 / 1
H i g h A l a r m D e l a y 5 s e c
Editable Data
Items in Yellow
box
s/sec
Activate
softkey
by touching
the screen
23.4
43.8
1 2 3 4
I / O L o w A l a r m D e l a y 5 s e c
P o p u l a t i o n A d j u s t 1 0 0 . 0 %
P o p u l a t i o n F i l t e r 0 . 0 %
R o w F a i l R a t e 2 / 1
H i g h A l a r m D e l a y 5 s e c
s/sec
5
(5)
7 8 9 CLR
4 5 6 DEL
1 2 3 +/-
0 . X
Touchpad
screen
Active setting
Previous
setting
