Configuring G.SHDSL Ports
88
FS6300 NMS User Manual
6 • Configuring the 3096RC Card
Configuring G.SHDSL Ports
Click on G.SHDSL Port Configuration in the pull-down menu to bring up the G.SHDSL window. The
G.SHDSL window shows the number of G.SHDSL ports available, linked ports, failed ports, training ports,
ports in test mode, and ports downloaded.

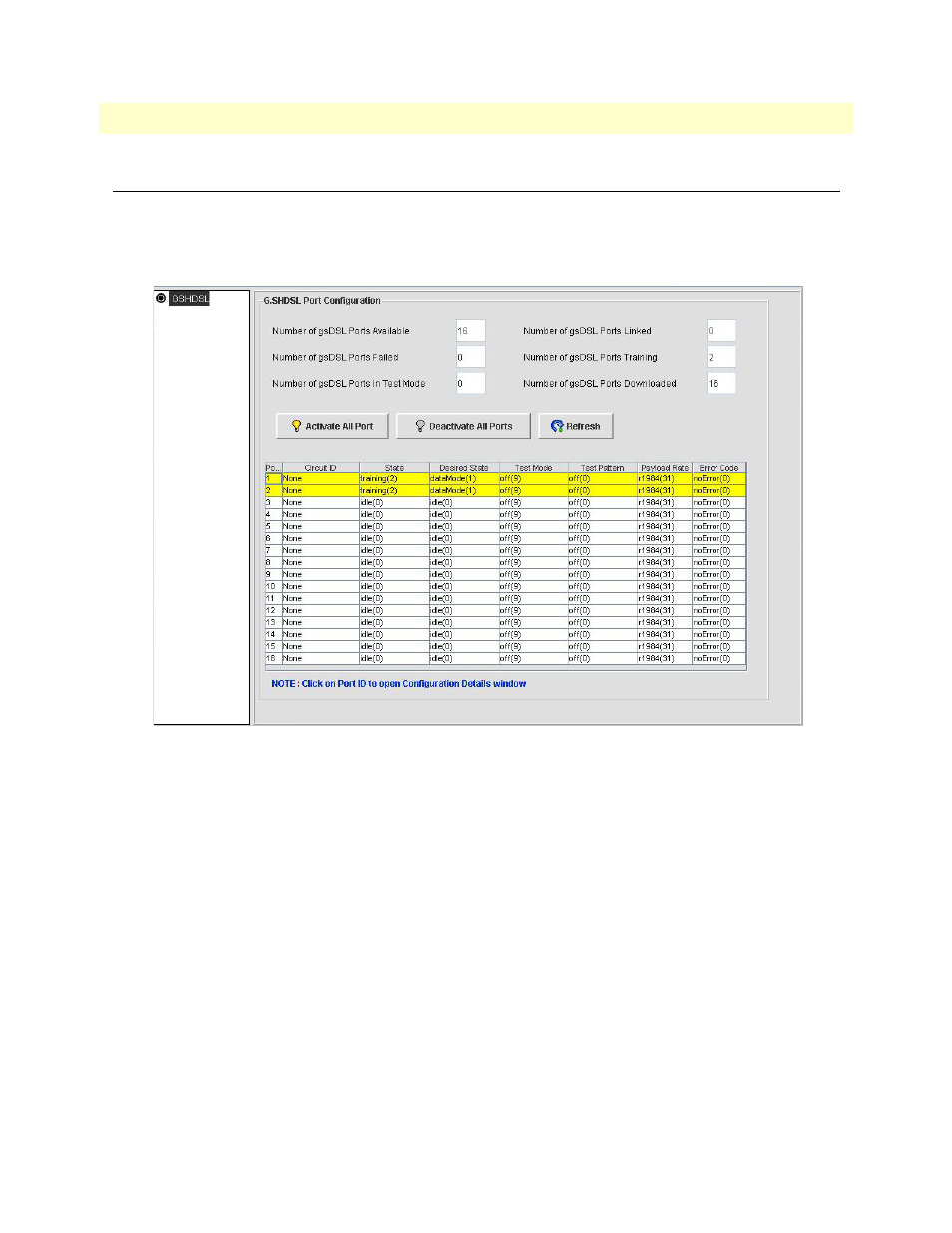

Figure 75. 3096RC G.SHDSL window
Activating/Deactivating All Ports
Click the Activate All Ports button to train all of the G.SHDSL ports on the card.
Click the Deactivate All Ports button to turn off all of the G.SHDSL ports on the card.
