Configuring iDSL Ports
110
FS6300 NMS User Manual
7 • Configuring the 3196RC Card
Configuring iDSL Ports
Click on iDSL Port Configuration in the pull-down menu to bring up the iDSL window. The iDSL window
shows the number of iDSL ports available, linked ports, failed ports, training ports, and ports in test mode.

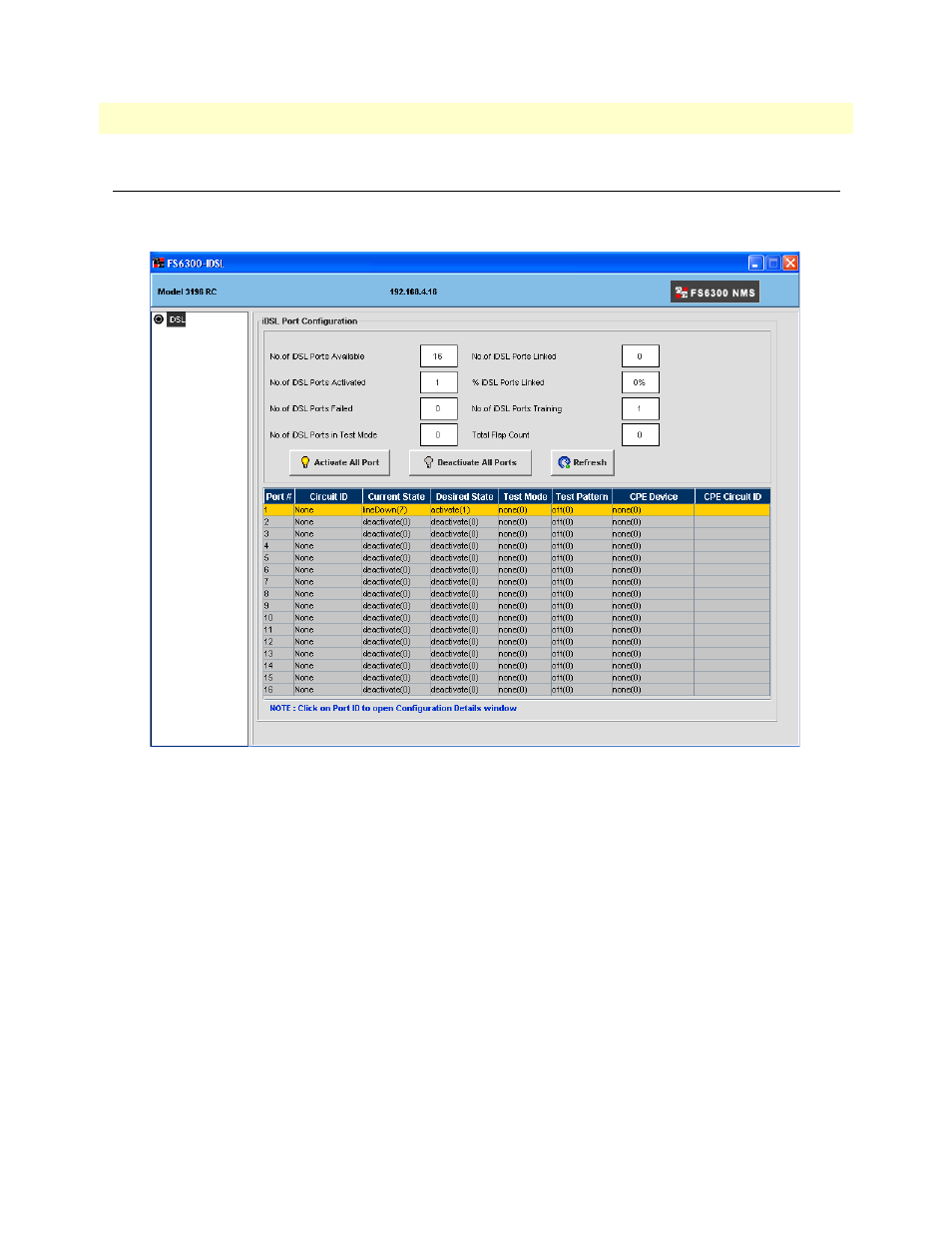

Figure 95. 3196RC iDSL window
Activating/Deactivating All Ports
Click the Activate All Ports button to train all of the iDSL ports on the card.
Click the Deactivate All Ports button to turn off all of the iDSL ports on the card.
