Introduction 127
FS6300 NMS User Manual 8 • Configuring the 6511RC Card
Introduction
The Patton Model 6511RC is a matrix switch with Gigabit Ethernet. There are several ways to reach the con-
figuration menu for the 6511RC card:
• Click on Network Maps in the main menu tree, then click on Chassis. Right-click on the 6511RC icon.
• Navigate to Network Database > Managed Objects > Cards in the main menu tree, then right-click on the
IP address of the card in the table in the main window.
The best way to reach the configuration menu for a card is to select the card in the main menu tree, then right-
click on the card’s icon in the main window.
6511RC Configuration Menu
The following options are available in the pull-down menu for the 6511RC card:

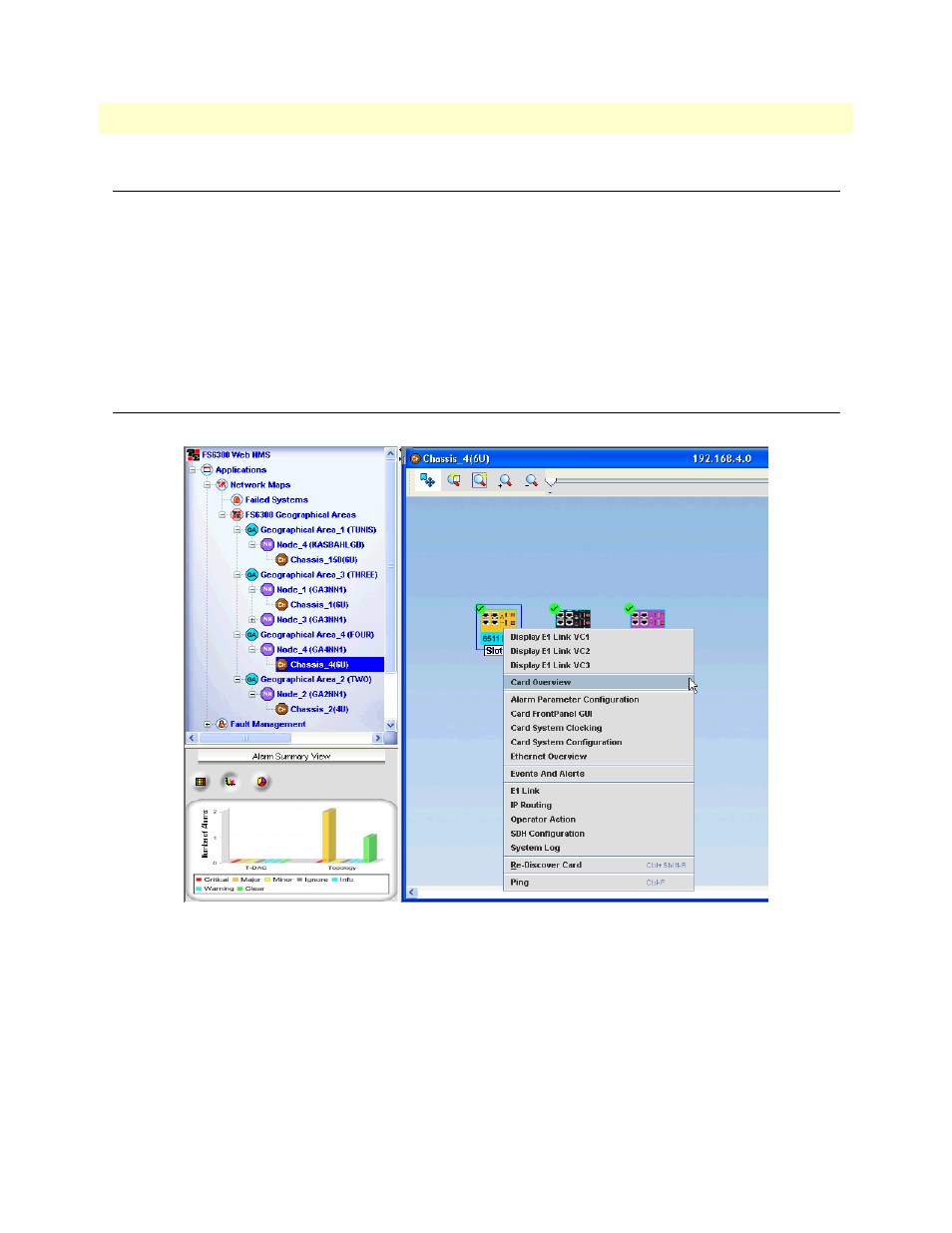

Figure 110. 6511RC Configuration Menu
• Display E1Link VCx – See “Viewing E1Link Layers” on page 138
• Card Overview – Shows information for Box Status, Card Info, and Alarm Info
• Alarm Parameter Configuration – See “Configuring Alarms through a Card in the Chassis” on page 48
• Card Front Panel GUI – See “Viewing the Front Panel” on page 128
• Card System Clocking – See “Configuring Card System Clocking” on page 54
• Card System Configuration – See “Configuring the Card System” on page 128
