Viewing T1/E1 Reports 82
FS6300 NMS User Manual 5 • Configuring the 2616RC Card
Viewing T1/E1 Reports
Click on T1E1 Reports from the card’s configuration menu to view and print different reports about the activ-
ity, line interface settings, and test settings of T1/E1 links on the 2616RC card.
Click the Print button to send the report to a printer on your network.
Click the Export to Excel button to send the report to Microsoft Excel to save in a spreadsheet.

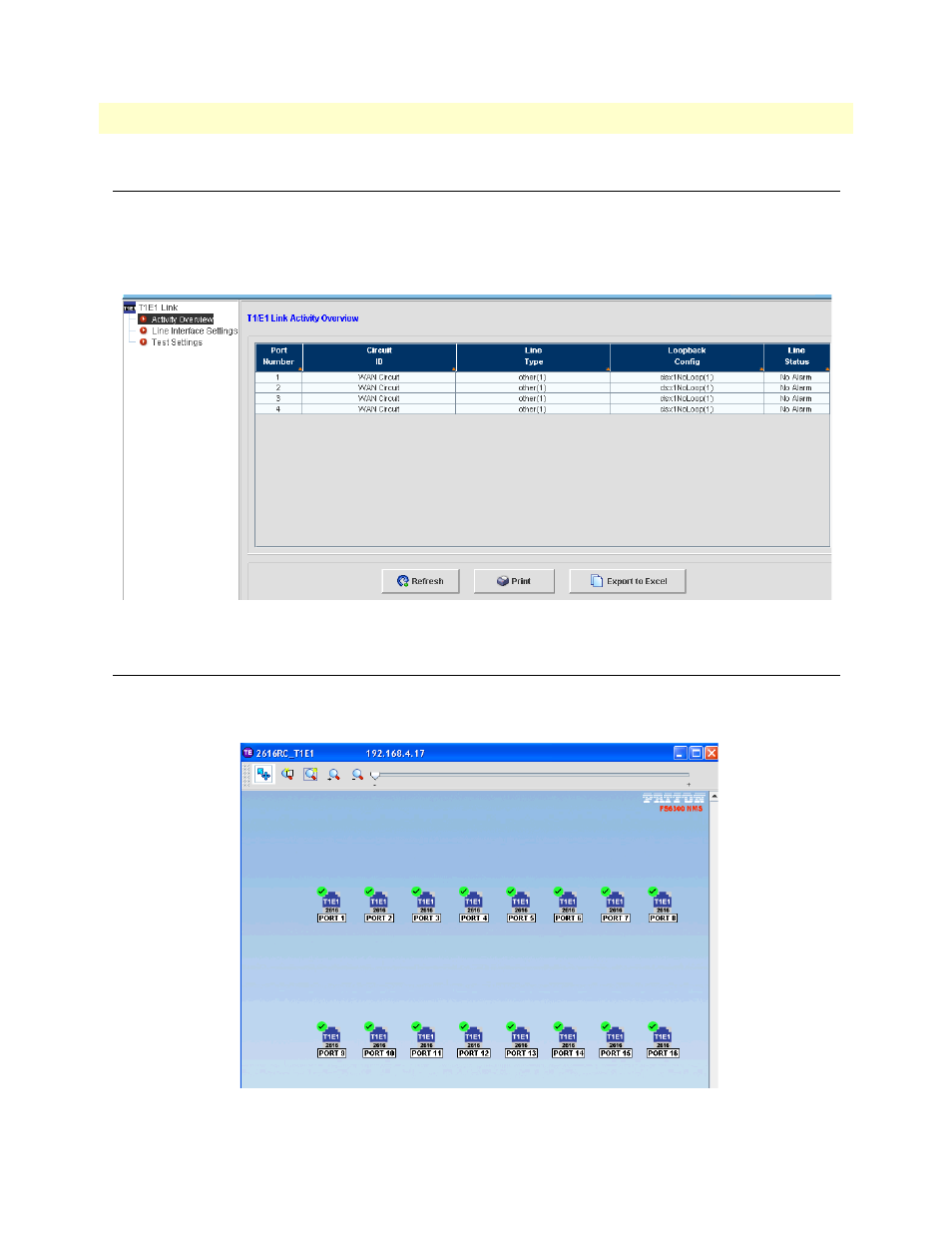

Figure 69. 2616RC T1/E1 Reports
Viewing the T1/E1 Map Layer
Click on Display T1E1 Map Layer from the card’s configuration menu to show a map of all the T1/E1 ports
on the card. Right-click on a port in the map to configure its link. See
“Configuring the T1/E1 Ports” on
page 78 for more details.
Figure 70. 2616RC T1/E1 Port Map
