Introduction 68
FS6300 NMS User Manual 5 • Configuring the 2616RC Card
Introduction
The Patton Model 2616RC is a digital cross-connect with 16 T1/E1 ports. There are several ways to reach the
configuration menu for the 2616RC card:
• Click on Network Maps in the main menu tree, then click on Chassis. Right-click on the 2616RC icon.
• Navigate to Network Database > Managed Objects > Cards in the main menu tree, then right-click on the
IP address of the card in the table in the main window.
The best way to reach the configuration menu for a card is to select the card’s chassis in the menu tree, then
right-click on the card’s icon in the main window.
2616RC Configuration Menu
The following options are available in the pull-down menu for the 2616RC card:

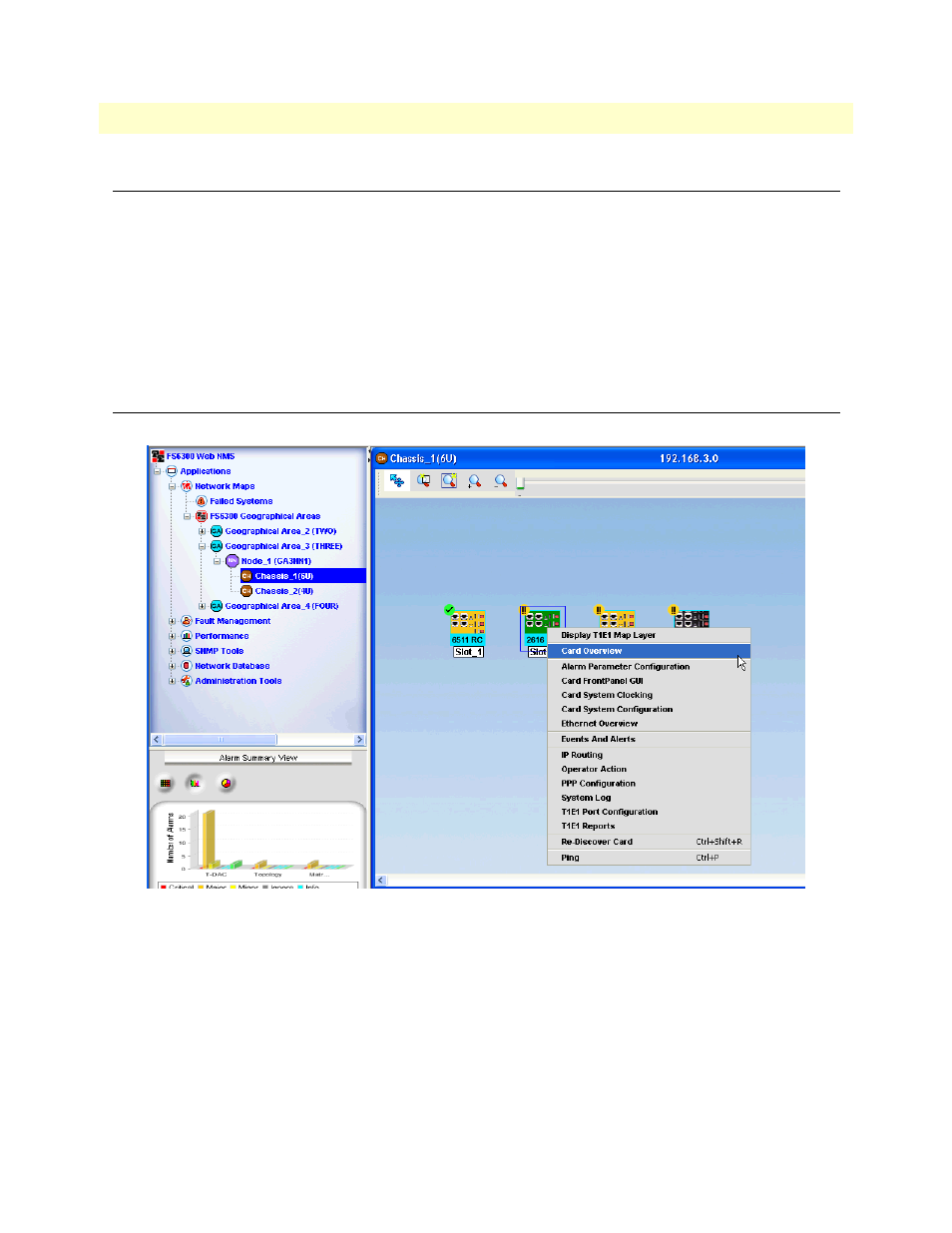

Figure 57. 2616RC Configuration Menu
• Display T1E1 Map Layer – See “Viewing the T1/E1 Map Layer” on page 82
• Card Overview – Shows information for Box Status, Card Info, and Alarm Info
• Alarm Parameter Configuration – See “Configuring Alarms through a Card in the Chassis” on page 48
• Card Front Panel GUI – See “Viewing the Front Panel” on page 69
• Card System Clocking – See “Configuring Card System Clocking” on page 54
• Card System Configuration – See “Configuring the Card System” on page 69
