Configuring the Alarm Trap Manager 48
FS6300 NMS User Manual 3 • Configuring Alarms and Clocking
5. Click the Modify button.
6. If the configuration was successful, a “Configuration Result” window displays. Click OK.
Configuring Alarms through a Card in the Chassis
To configure the IP address for the Alarm Trap field for each card:
1. From the menu tree on the left side of the screen, select the Chassis for the card that you want to config-
ure.
2. In the main window, right-click on the Card, then select Alarm Parameter Configuration.
The FS6300 Alarm Details window appears. Click on the Alarm System Overview to view information
about the alarms.

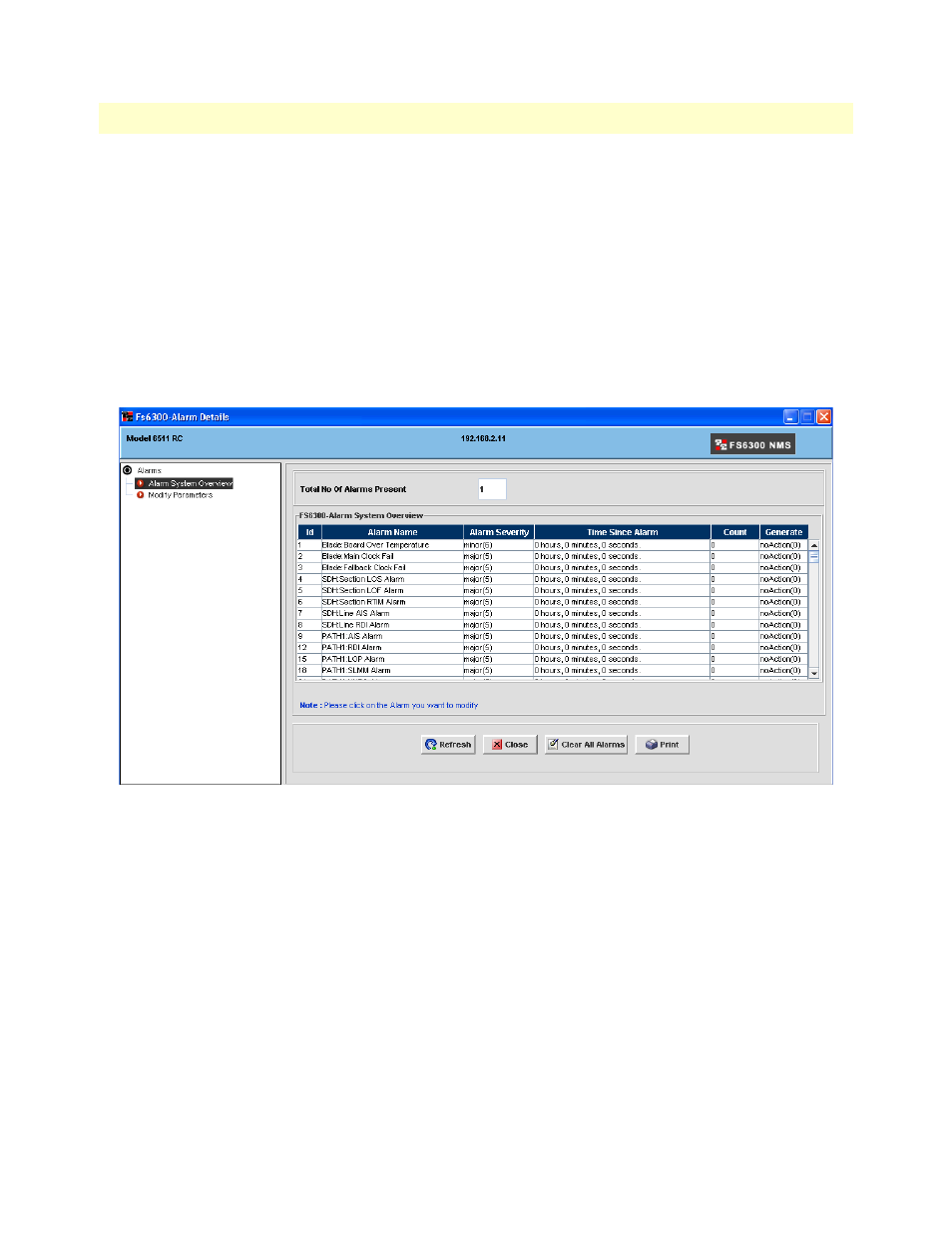

Figure 33. View Alarm Details
Alarm System Overview: The Alarm System Overview window shows the entire alarm system, including
the following information for each alarm:
– Alarm Name
– Alarm Severity
– Time Since Alarm
– Count– the number of times this alarm has occurred since being cleared
