Configuring Card System Clocking 54
FS6300 NMS User Manual 3 • Configuring Alarms and Clocking
Refreshing the alarms after configuring clocking
After you have configured clocking for the chassis, you can refresh the alarms that occurred before clocking was
configured. To refresh the alarms for a card:
1. Right-click on the card icon and select Alarm Parameter Configuration.
The FS6300 Alarm Details window displays (see Figure 33 on page 48).
2. Click on Alarm System Overview in the menu tree on the left side of the screen.
3. Click the Clear All Alarms button.
4. Click the Refresh button.
All of the alarms that were related to clocking should be cleared. (Other alarms not related to clocking may still
be present). The next step after configuring clocking synchronization is to configure clocking options for the
card system, including Clock Fallback and Clock Auto Recover.
Configuring Card System Clocking
In addition to setting a clock to Master, Secondary, or Slave, you must also select the source for clocking and
determine whether to enable or disable Clock Fallback and Clock Auto Recover. To configure card system
clocking:
1. Right-click on the card icon and select Card System Clocking.

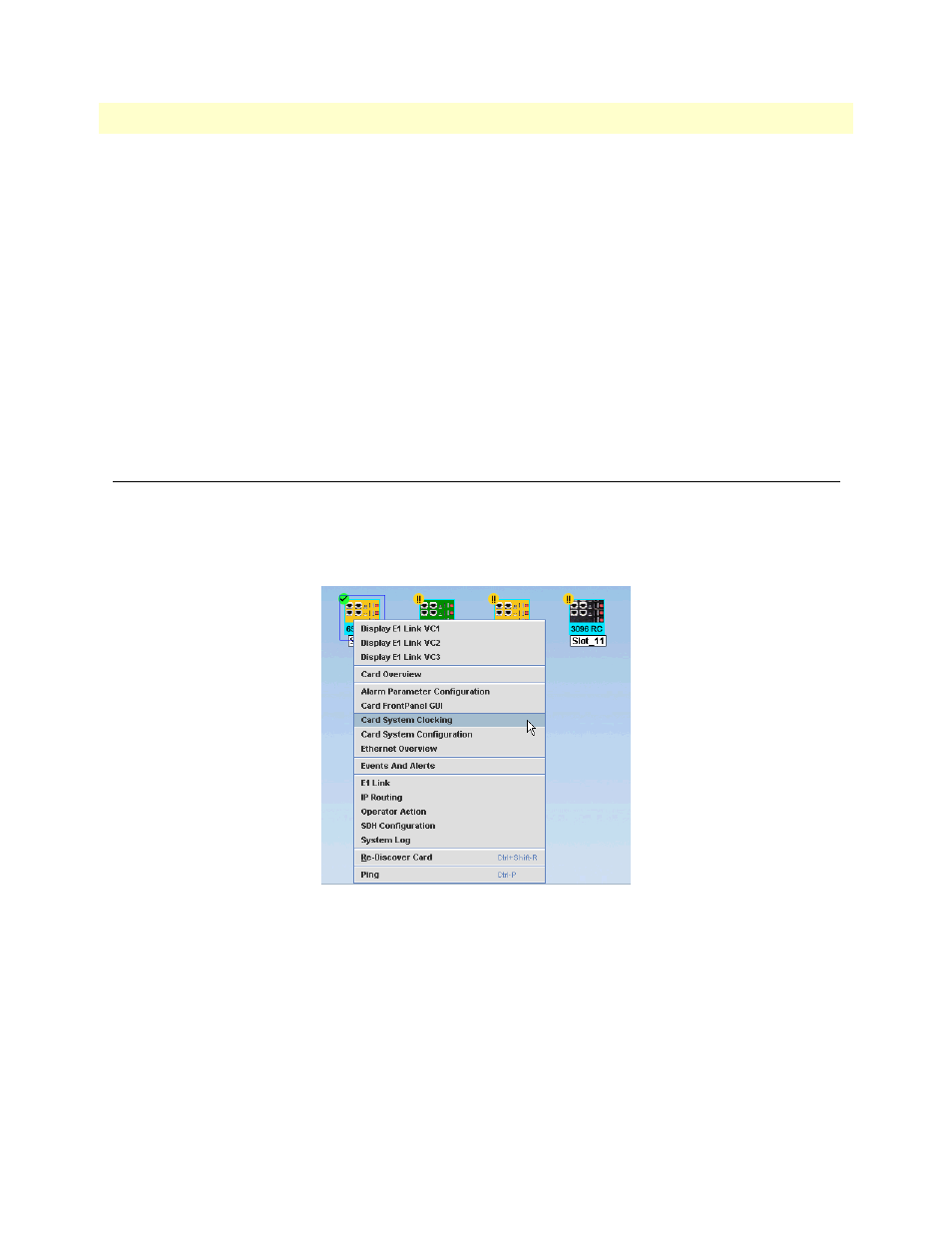

Figure 41. Card Menu > Card System Clocking
The System Clocking window displays.
