FS6300 NMS User Manual 6 • Configuring the 3096RC Card
Introduction
The Patton Model 3096RC is a G.SHDSL TDM Concentrator with 16 G.SHDSL ports. There are several
ways to reach the configuration menu for the 3096RC card:
• Click on Network Maps in the main menu tree, then click on Chassis. Right-click on the 3096RC icon.
• Navigate to Network Database > Managed Objects > Cards in the main menu tree, then right-click on the
IP address of the card in the table in the main window.
The best way to reach the configuration menu for a card is to select the card in the main menu tree, then right-
click on the card’s icon in the main window.
3096RC Configuration Menu
The following options are available in the pull-down menu for the 3096RC card:

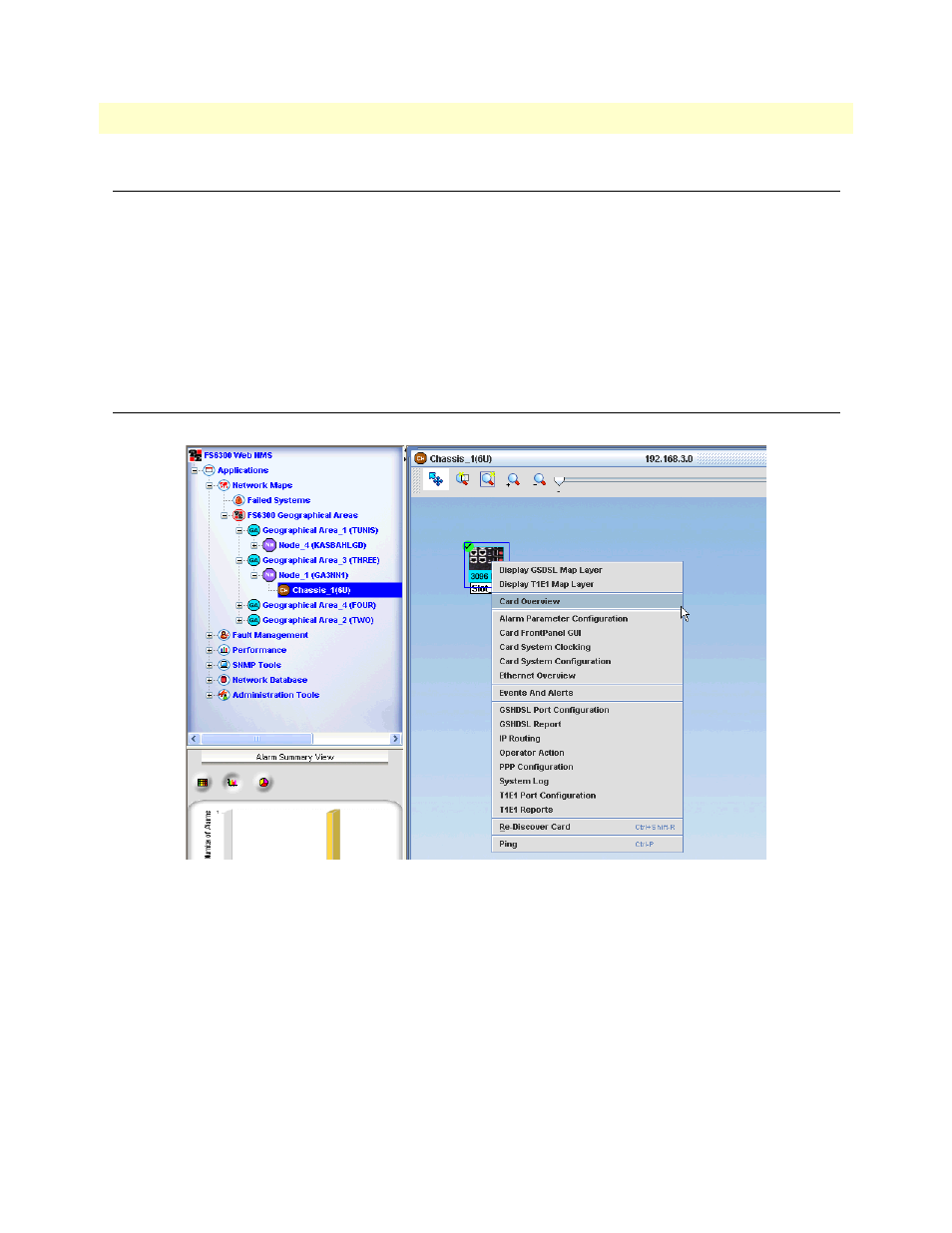

Figure 71. 3096RC Configuration Menu
• Display G.SHDSL Map Layer – “Viewing the G.SHDSL Map Layer” on page 104
• Display T1E1 Map Layer – See “Viewing the T1/E1 Map Layer” on page 103
• Card Overview – Shows information for Box Status, Card Info, and Alarm Info
• Alarm Parameter Configuration – See “Configuring Alarms through a Card in the Chassis” on page 48
• Card Front Panel GUI – See “Viewing the Front Panel” on page 85
• Card System Clocking – See “Configuring Card System Clocking” on page 54
• Card System Configuration – See “Configuring the Card System” on page 85
