Configuring Cards

63

FS6300 NMS User Manual

4 • Configuring and Managing Devices

Exporting the Configuration

To save a card configuration:

1. Click Tools > Schedule Tasks in the main window. In the FS6300-Schedule Tasks window, select the

radio button for Export Card Configuration. Select the Card Model from the drop-down menu.

2. Click Execute Now. The Export Card Configuration window displays a list of cards.

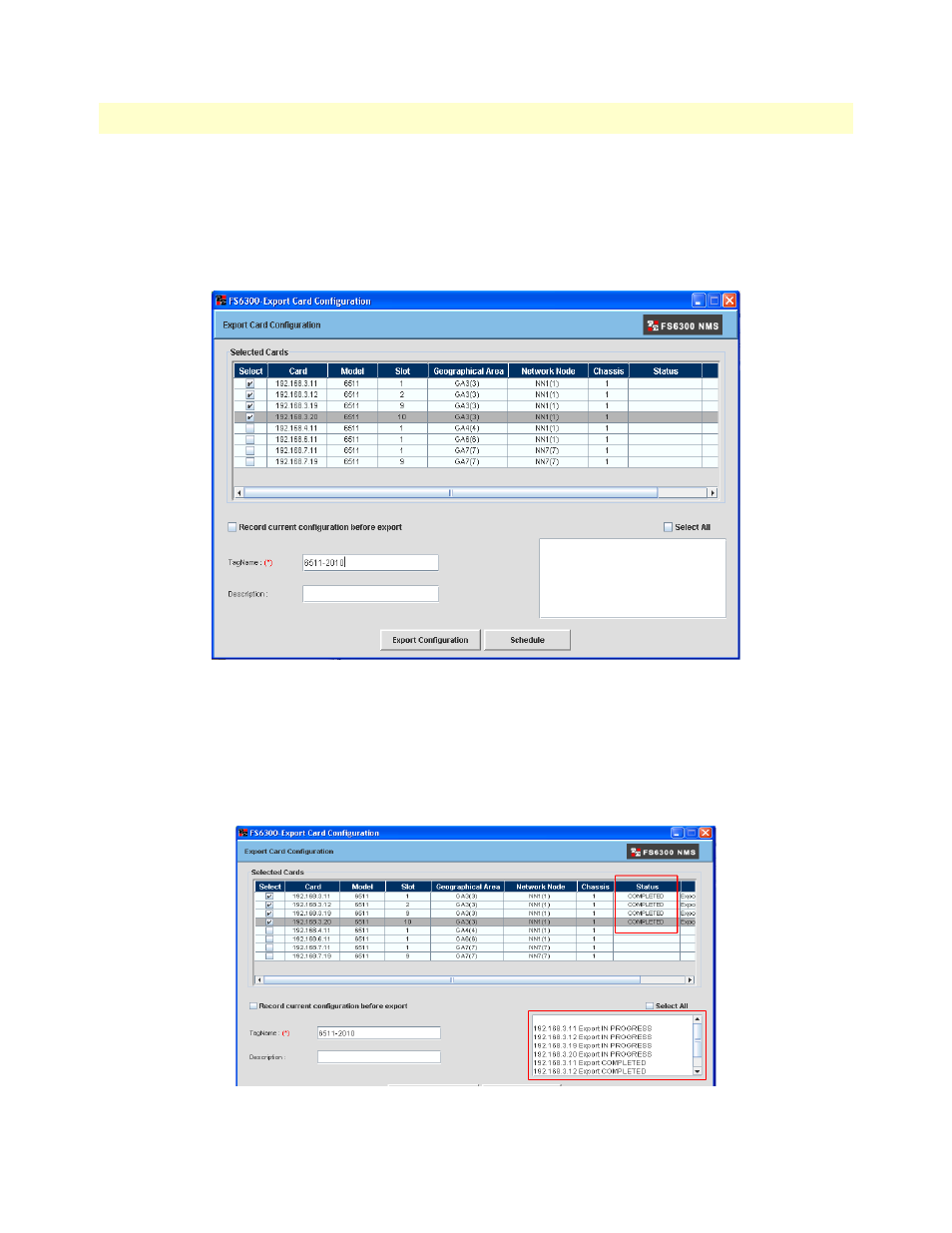

Figure 51. FS6300 Export Card Configuration window

3. Select the boxes of the desired cards. Enter a name for the configuartion in the TagName field. Then, click

Export Configuration.

The window displays a “COMPLETED” status message after the system successfully exports the configuration
file. Exported files are on the NMS in the directory: /opt/FS6300/Server//ExportedFiles/Device-
Config/
.

Figure 52. Export Complete
