Introduction 140
FS6300 NMS User Manual 9 • Configuring Chassis
Introduction
To configure a chassis, navigate to Network Maps > Geographical Area > Network Node in the menu tree on
the left side of the screen. Right-click on a chassis icon in the main window to display the configuration menu
for the chassis.
Chassis Configuration Menu
The following options are available in the pull-down menu for a chassis:

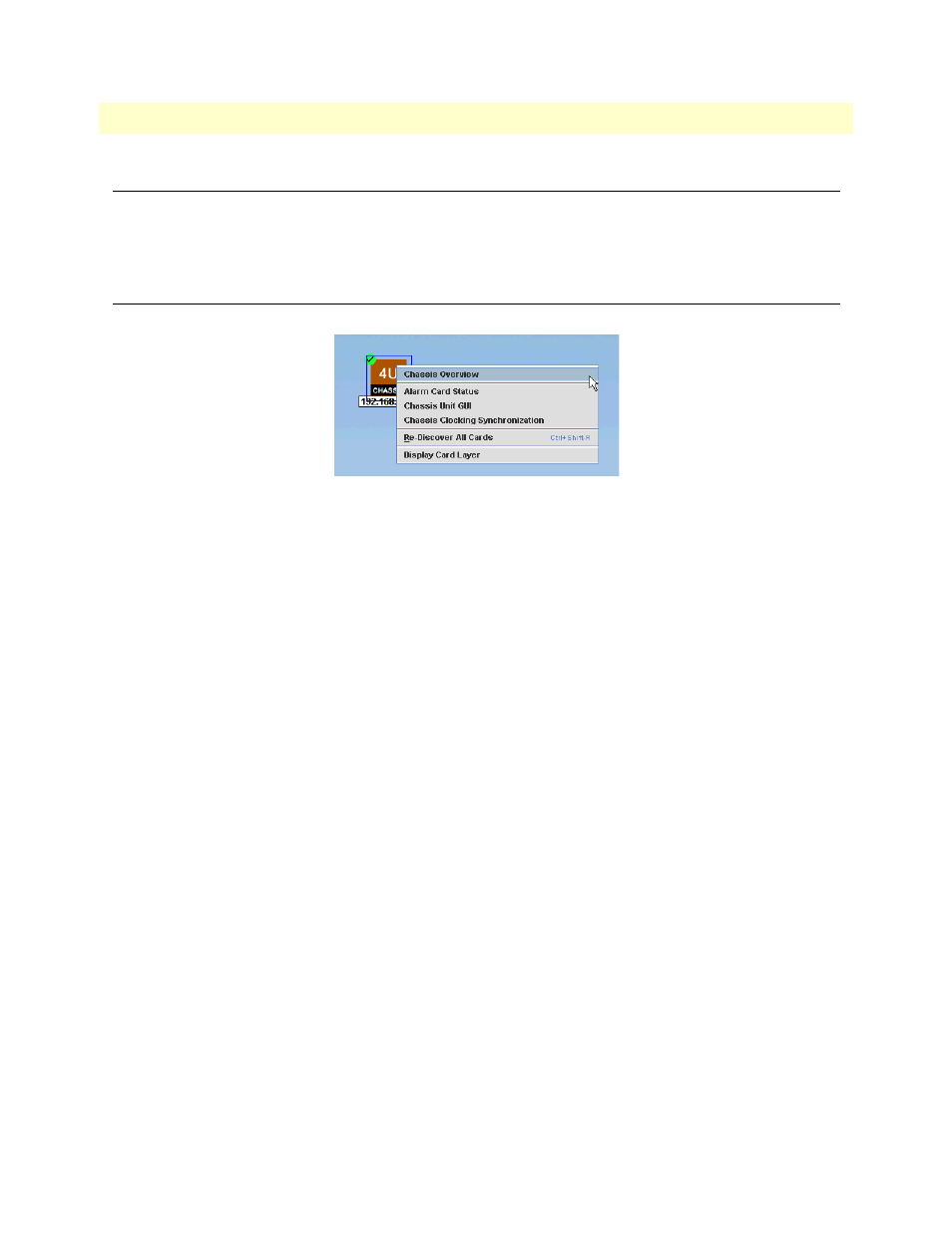

Figure 123. Chassis Configuration Menu
• Chassis Overview – Shows information for the chassis, including Area ID and Network Node, Chassis ID,
Name, and Type, Network IP, Number of Cards, and Alarm Status
• Alarm Card Status – View information about the card on the chassis that is monitoring alarms
• Chassis Unit GUI – See “Viewing the Chassis LEDs” on page 141
• Chassis Clocking Synchronization – See “Configuring Clocking Synchronization” on page 53
• Re-Discover Card – See “Re-Discovering Cards Manually” on page 38
• Display Card Layer – See “Viewing the Card Layer Map” on page 142
