Viewing the Front Panel 128
FS6300 NMS User Manual 8 • Configuring the 6511RC Card
• Ethernet Overview – See “Configuring Ethernet Settings” on page 130
• Events and Alerts – See “Viewing Events and Alerts” on page 62
• E1 Link – See “Configuring E1 Links” on page 131
• IP Routing – See “Configuring IP Routing” on page 133
• Operator Action – See “Managing Operator Actions” on page 60
• SDH Configuration – “Configuring SDH” on page 135
• System Log – See “Viewing/Modifying System Log Configuration” on page 65
• Re-Discover Card – See “Re-Discovering Cards Manually” on page 38
• Ping – Displays a status message after pinging the interface.
Viewing the Front Panel
Click on Card Front Panel GUI to view the front panel of the card in real-time.

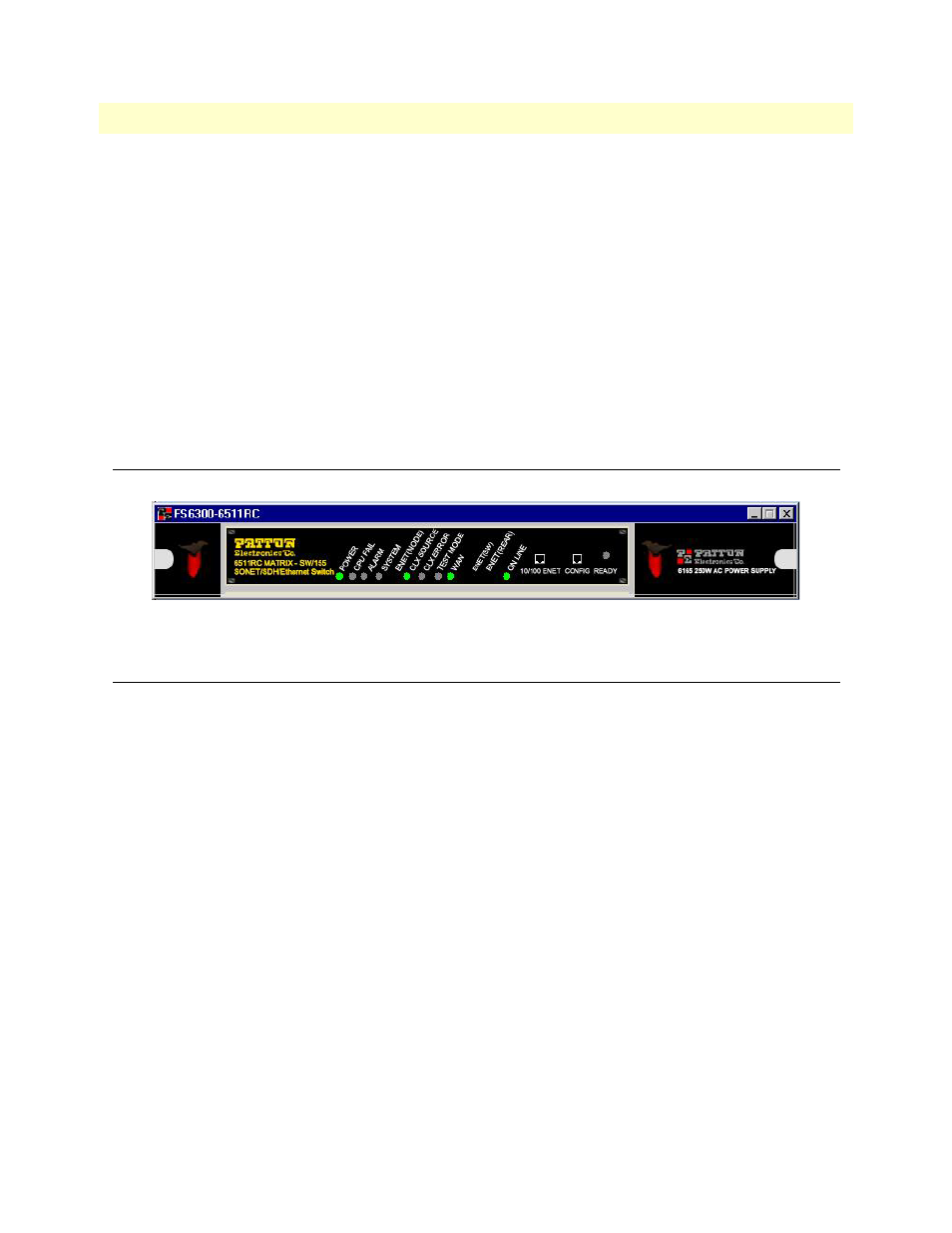

Figure 111. 6511RC Front Panel LEDs
Configuring the Card System
Click on Card System Configuration to configure system parameters. You can also view the system status, eth-
ernet status, system parameters, SNMP and HTTP Parameters, and system status details.
Modify System Parameters
If you only want to view the system parameters, click on View System Parameters in the Card System Config-
uration window.
To configure the card system, click on Modify System Parameters in the menu tree in the Card System Con-
figuration window (see
Figure 112 on page 129).
