Viewing E1Link Layers
138
FS6300 NMS User Manual
8 • Configuring the 6511RC Card
Viewing E1Link Layers
Click on Display E1 Link VC(#) to show a map of all the E1 links on a TUG. To edit a link, right-click on the
E1 link icon that you want to edit and select E1 Port Link Configuration. (See
page 131).

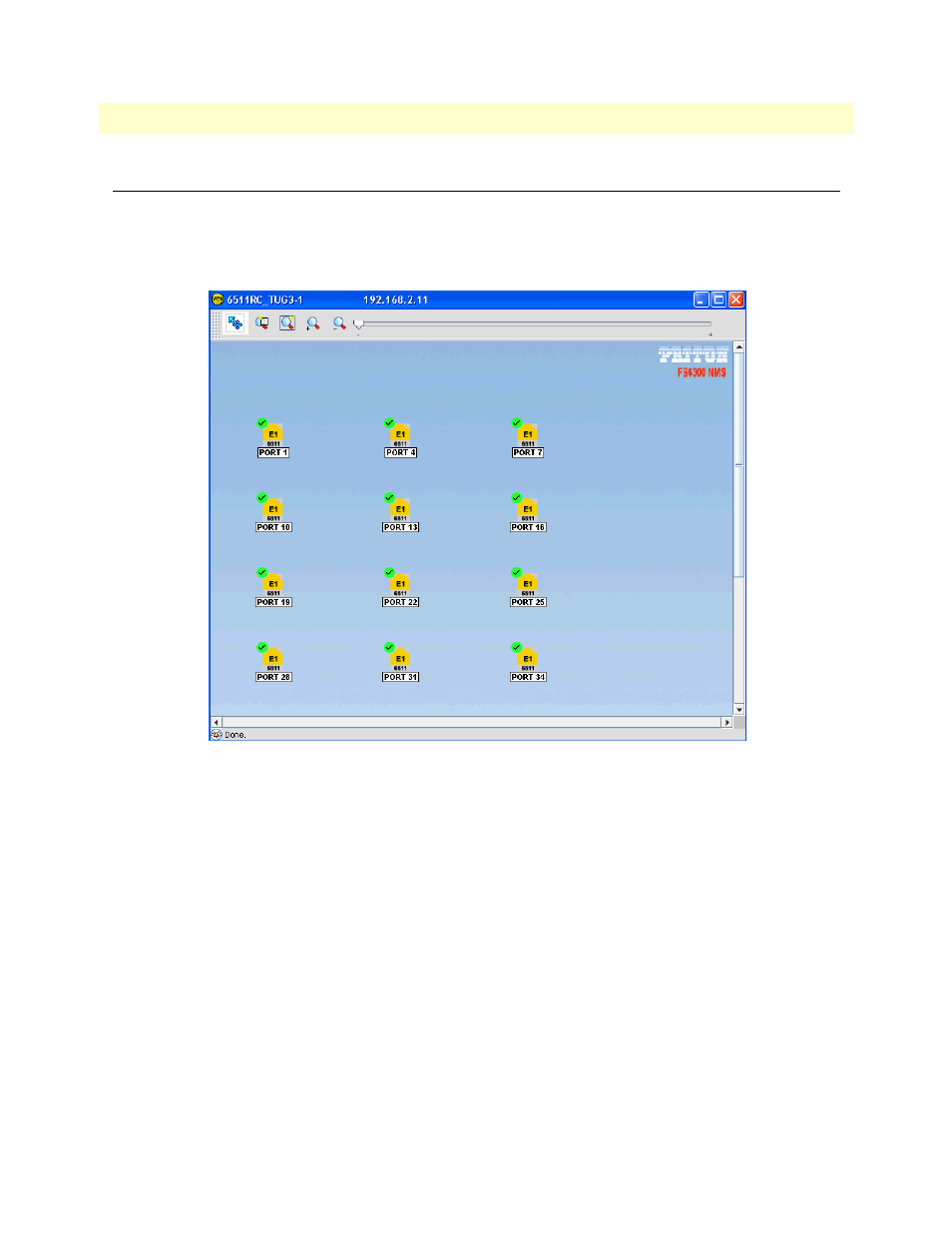

Figure 122. 6511RC E1 Link Map
