Viewing the G.SHDSL Map Layer
104
FS6300 NMS User Manual
6 • Configuring the 3096RC Card
Viewing the G.SHDSL Map Layer
Click on Display G.SHDSL Map Layer to show a map of all the G.SHDSL ports on the card. Right-click on
a port in the map to configure its link. See
on page 88 for more details.

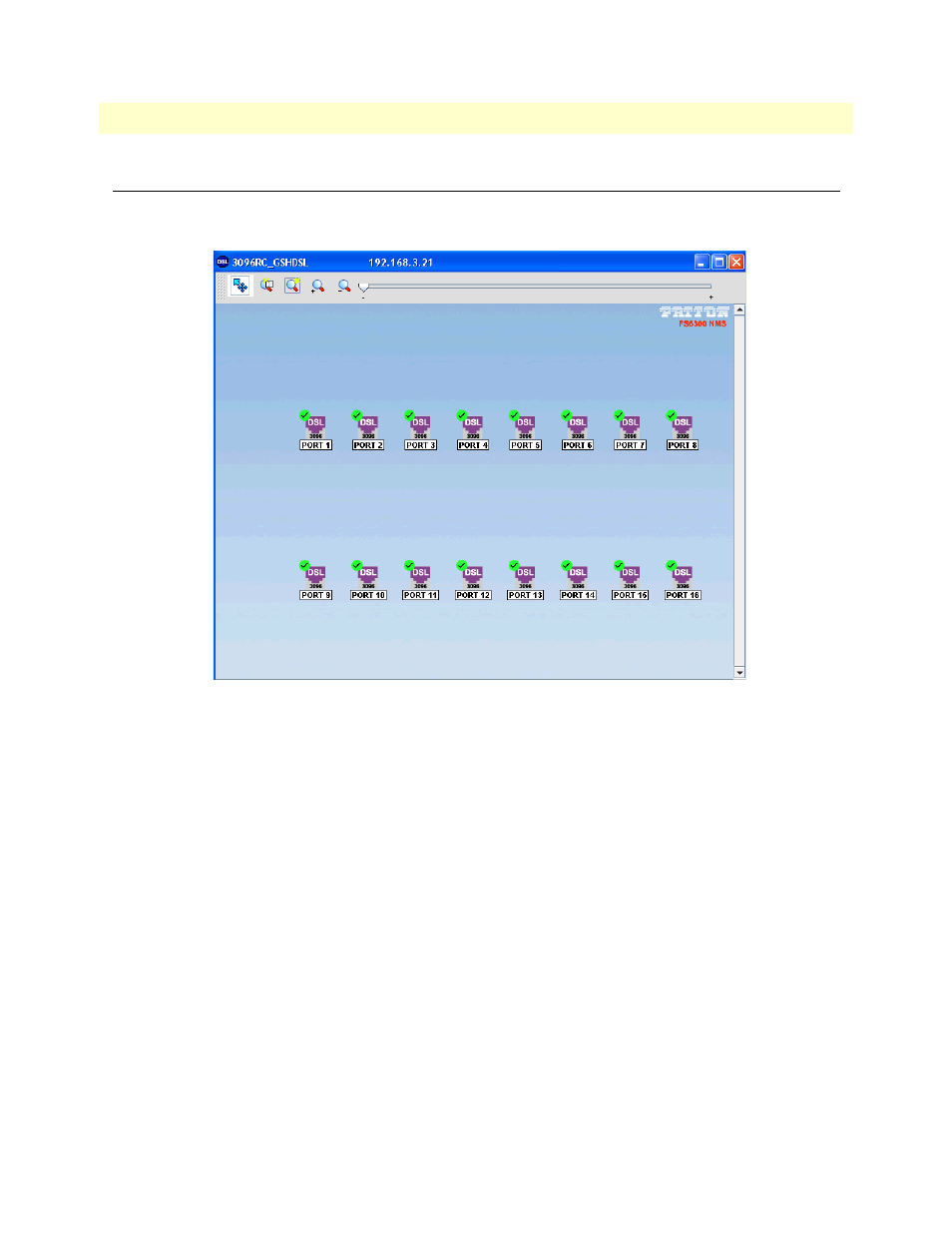

Figure 90. 3096RC G.SHDSL Port Map
