Defining Containers 29
FS6300 NMS User Manual 2 • Discovering Your Network
Defining Containers During Multiple Card Configuration
You may wish to define containers after all of the chassis in your network have been discovered. In this case,
you may add IDs, details, and labels during the multiple card configuration process. To reach the Multiple
Card Configuration. window, click on Tools > Multiple Card Configuration. at the top of the screen.

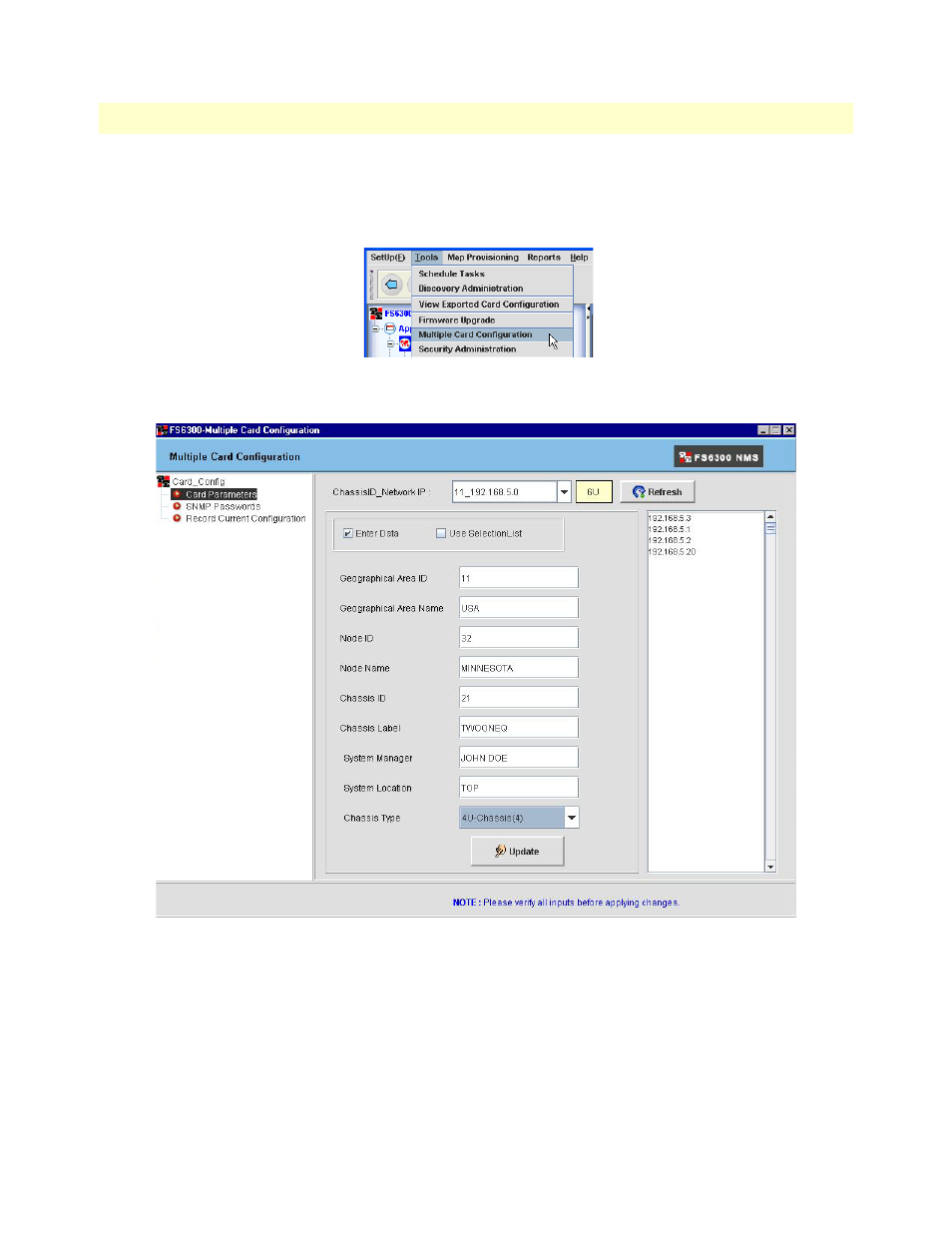

Figure 11. Tools > Multiple Card Configuration
1. Click on Card Parameters in the menu tree on the left side of the screen.
Figure 12. Multiple Card Configuration > Card Parameters
2. Select the network address for the chassis in the drop-down menu at the top of the window.
3. You can modify containers by typing in the data or using drop-down menus. Select the checkbox at the
top of the Card Parameters window for the option you want to use.
4. Enter the information you want to update on the subnet for the following fields, or if you are using the
Selection List, you may select containers from the pre-defined master list.
– Geographical Area ID (This is permanent and cannot be modified).
