Upgrading and Replacing Options
HP Smart Array 5300 Controller User Guide 9-15
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: j-ch9 upgrading and replacing options
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:17 AM
To remove the RAID ADG Enabler Module:
Press the innermost plastic clip under the controller board towards the other clip (1),
and push the module out of the board (2).
1
2

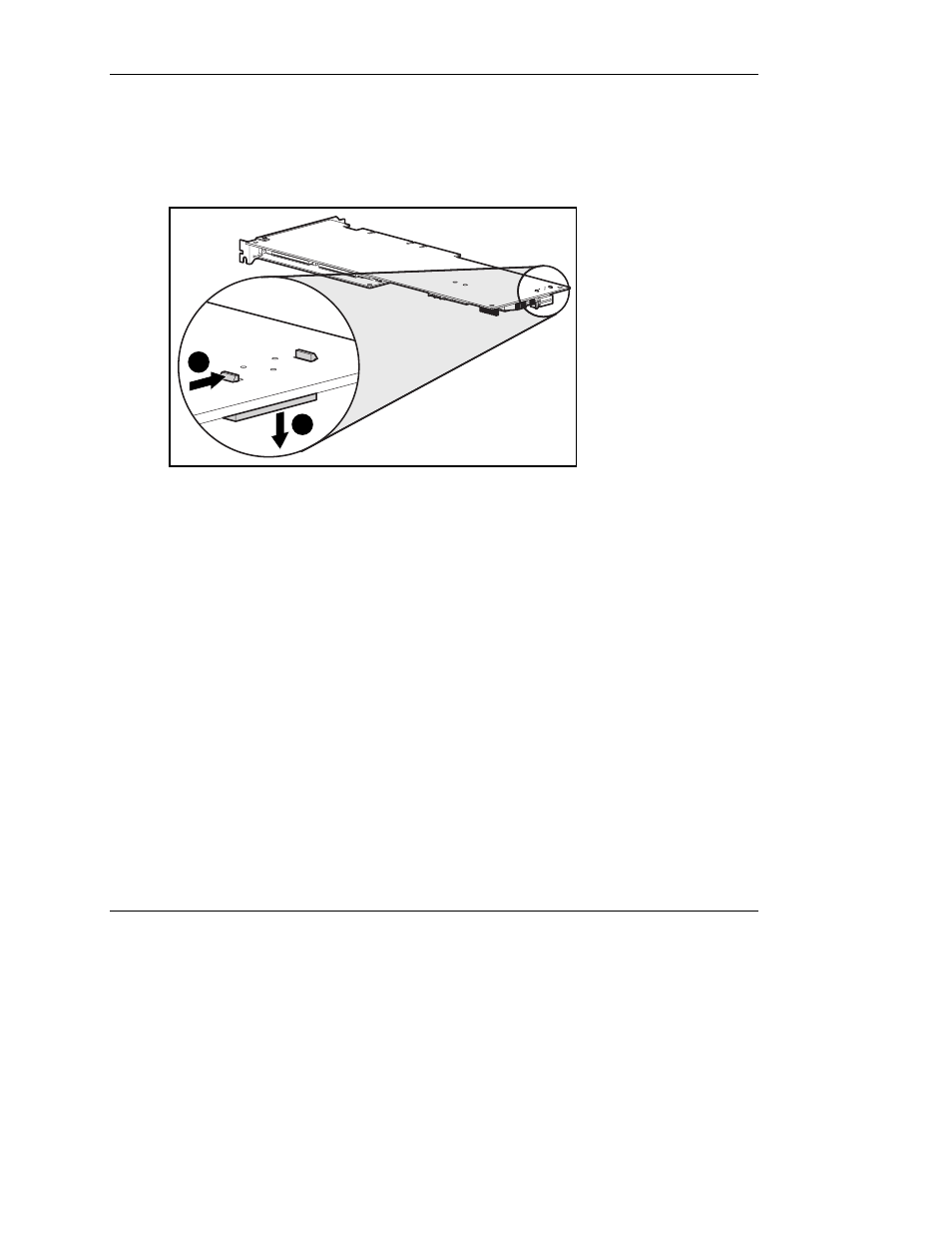

Figure 9-16: Removing the RAID ADG Enabler Module
To install the module on the new controller board:
1. Check that the array accelerator on the new controller board has at least 64 MB
of read/write cache.
2. Hold the module at an angle and insert the rear end of the module into the
appropriate slot (1).
