Upgrading and Replacing Options
9-2
HP Smart Array 5300 Controller User Guide
HP CONFIDENTIAL
Writer: Jennifer Hayward File Name: j-ch9 upgrading and replacing options
Codename: SilverHammer Part Number: 135606-005 Last Saved On: 10/8/02 11:17 AM
3. Rotate the clip back towards the controller board to allow room for the array
accelerator board to be removed.
4. Remove the plastic retainer (1) by detaching it from the array accelerator and
unhooking it from the controller board.
1
2

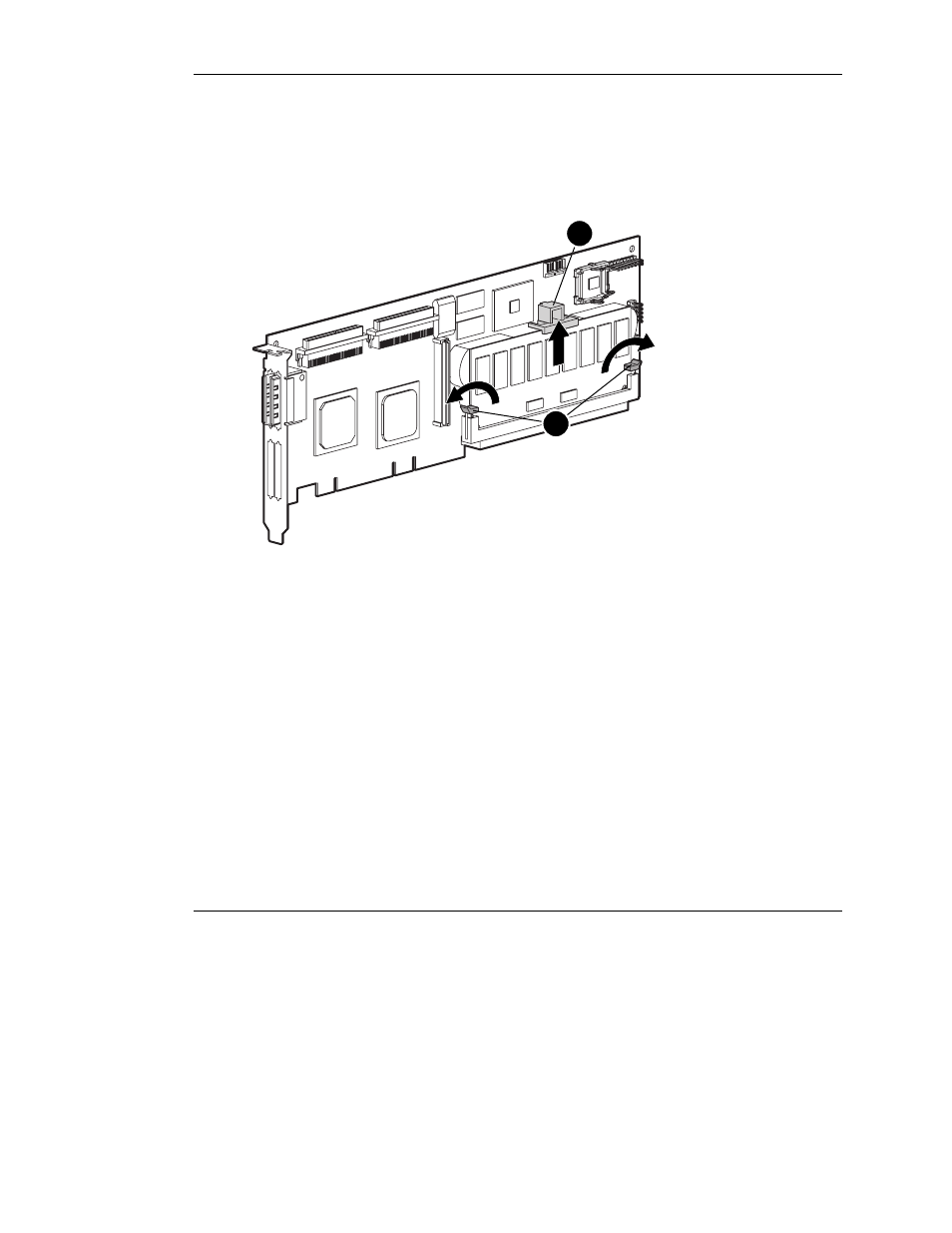

Figure 9-2: Releasing the array accelerator board
5. Swing out the DIMM ejectors (2) on each side of the array accelerator.
6. Tilt the array accelerator slightly away from the controller board (angle
exaggerated in the figure for clarity), and then unplug the array accelerator from
the DIMM socket on the controller board.
